Headlamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the front bumper cover. REFER to: Front Bumper Cover .

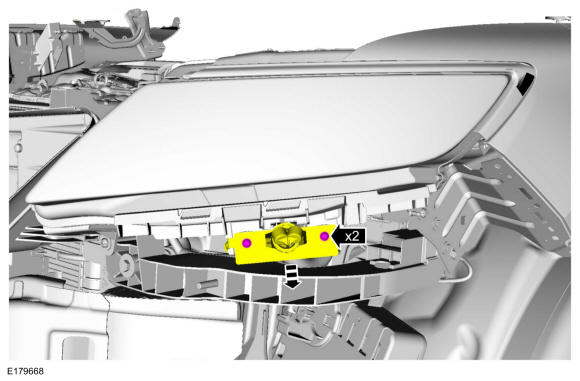

Vehicles equipped with headlamp washers
Remove the screws and position the headlamp washer aside.

Courtesy of FORD MOTOR COMPANY

All vehicles

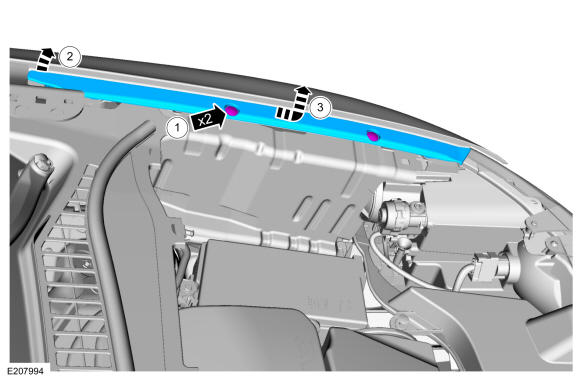

Remove the fender sill trim.
1. Remove the push pins.
2. Release the rear of the fender sill trim.
3. Slide the fender sill trim forward then up.
Courtesy of FORD MOTOR COMPANY

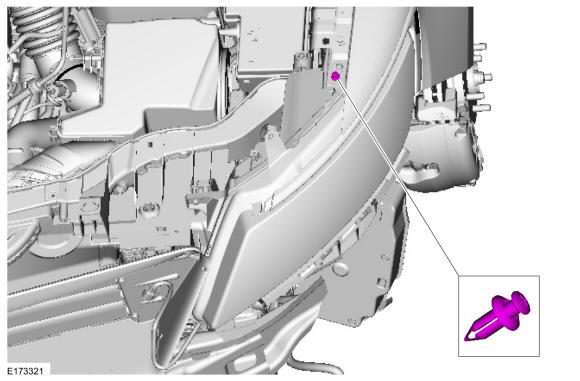

Remove the pushpin.

Courtesy of FORD MOTOR COMPANY

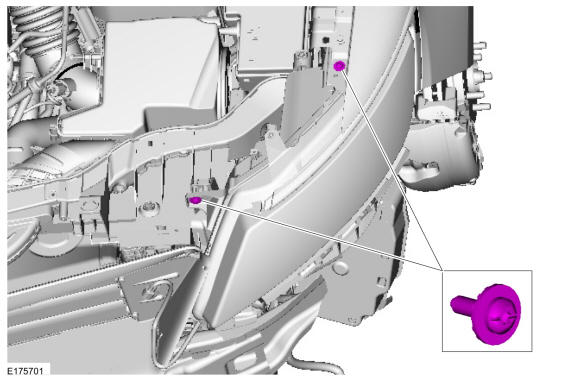

Remove the 2 screws.

Courtesy of FORD MOTOR COMPANY

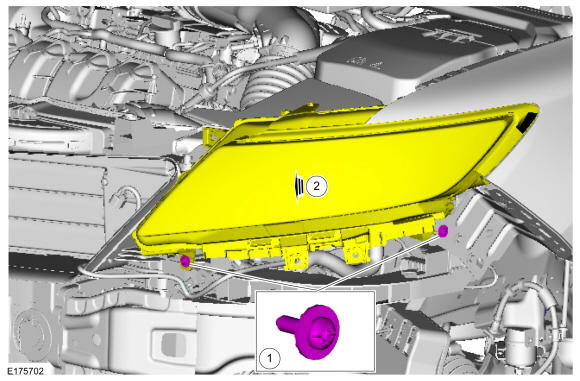

1. Remove the screws.
2. Position the headlamp assembly forward.
Courtesy of FORD MOTOR COMPANY

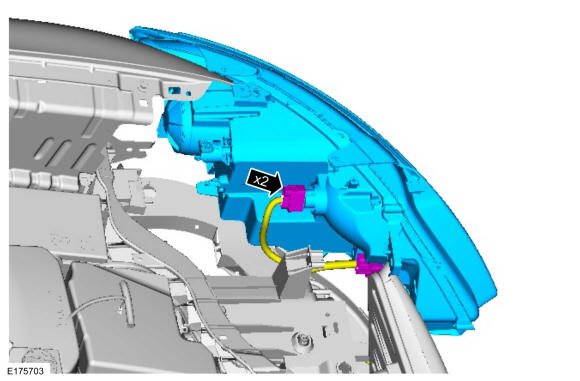

Vehicles with conventional headlamps
Disconnect the electrical connectors and remove the headlamp assembly.

Courtesy of FORD MOTOR COMPANY

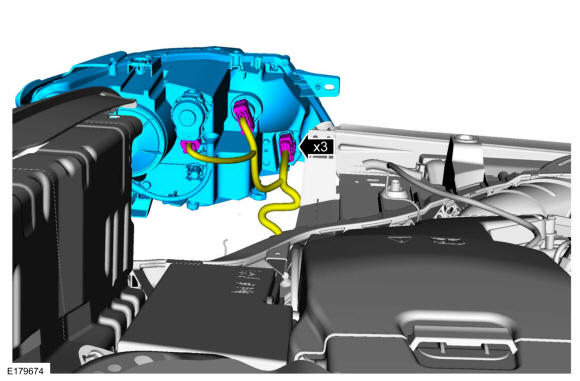

Vehicles with automatic headlamp levelling
Disconnect the electrical connectors and remove the headlamp assembly.

Courtesy of FORD MOTOR COMPANY
