Daytime Running Lamp: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. REFER to: Front Bumper Cover .

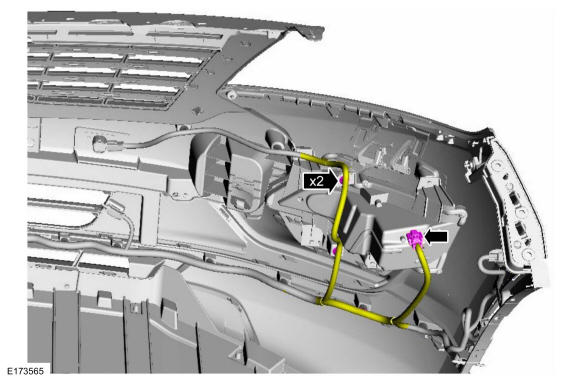

  2. Disconnect the electrical connector and separate the 2 wiring harness retainers.
    GFD229911Courtesy of FORD MOTOR COMPANY

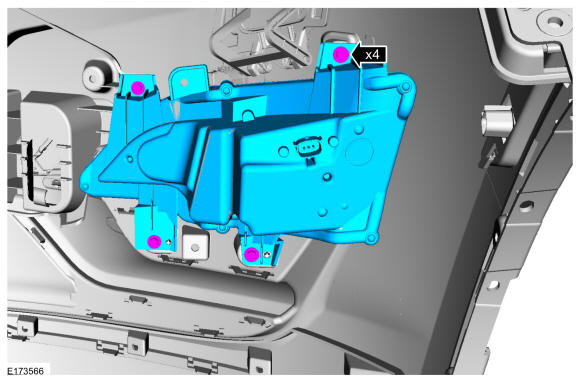

  3. Remove the 4 bolts and the daytime running lamp assembly.
GFD229912Courtesy of FORD MOTOR COMPANY
