Removal And Installation: Ballast: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. REFER to: Headlamp Assembly .

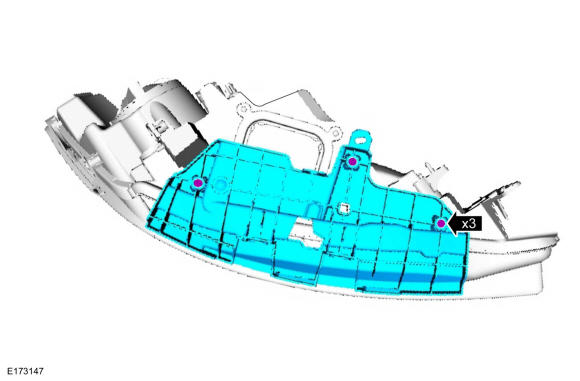

  2. Remove the screws and the headlamp bracket.
    GFD229885Courtesy of FORD MOTOR COMPANY

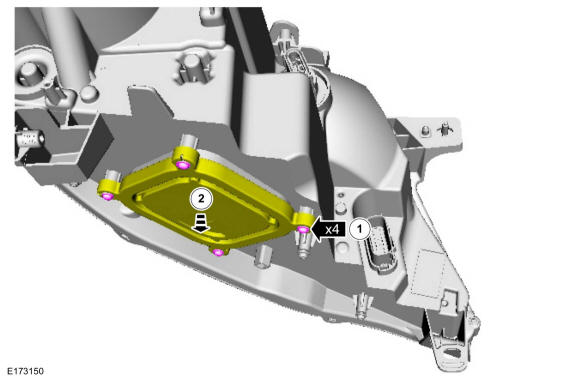

    1. Remove the ballast screws.
    2. Position the ballast out.
    GFD229886Courtesy of FORD MOTOR COMPANY

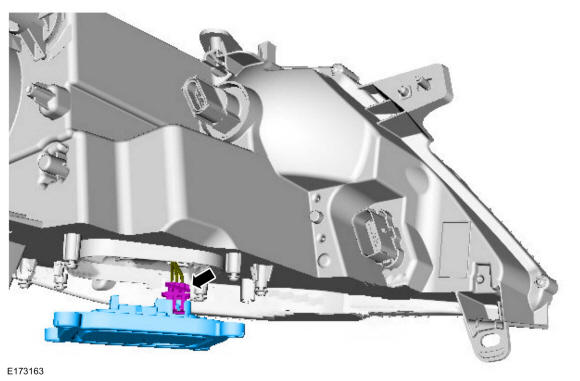

  4. Disconnect the electrical connector and remove the headlamp ballast.
GFD229887Courtesy of FORD MOTOR COMPANY
