WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

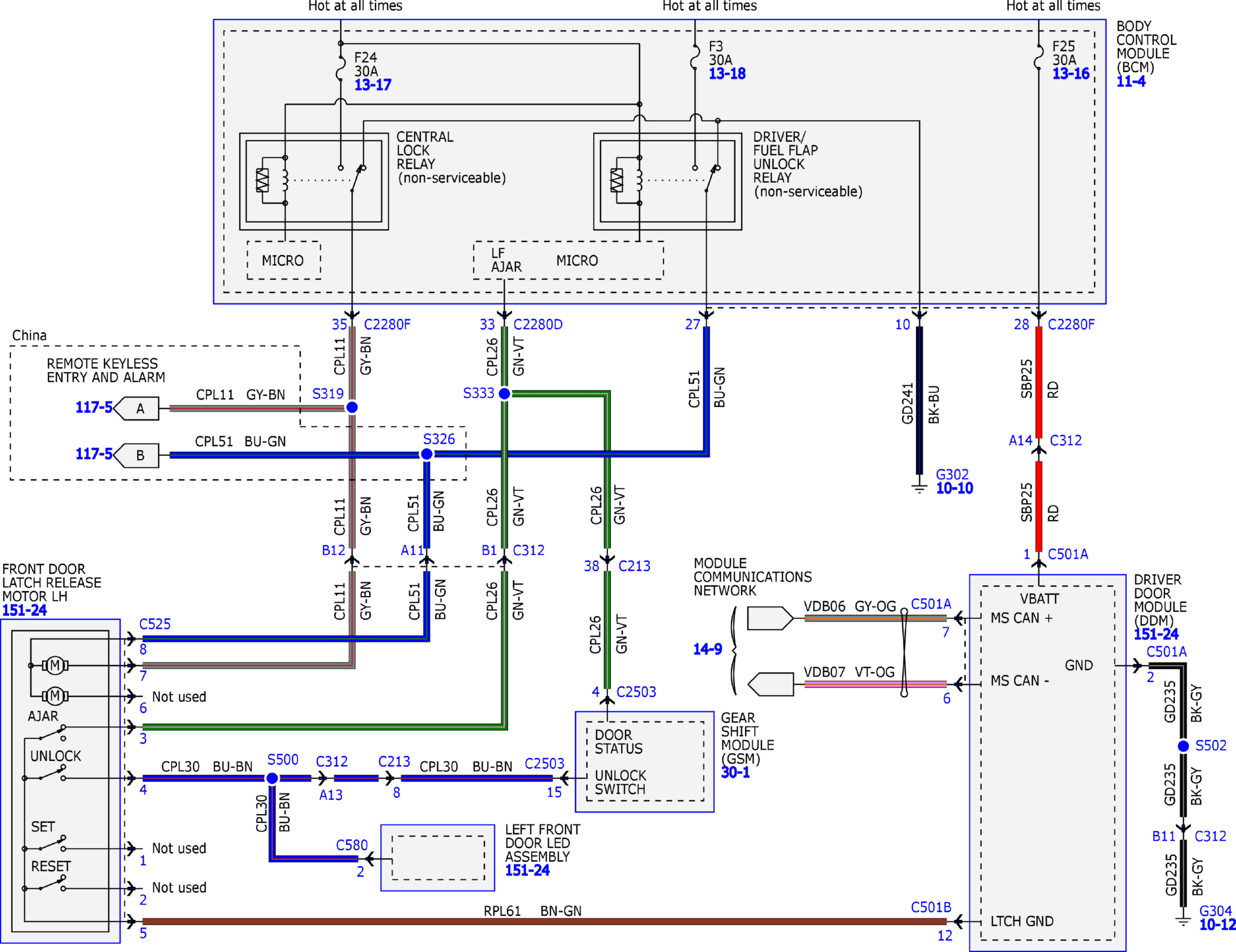

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 15)
Courtesy of FORD MOTOR COMPANY

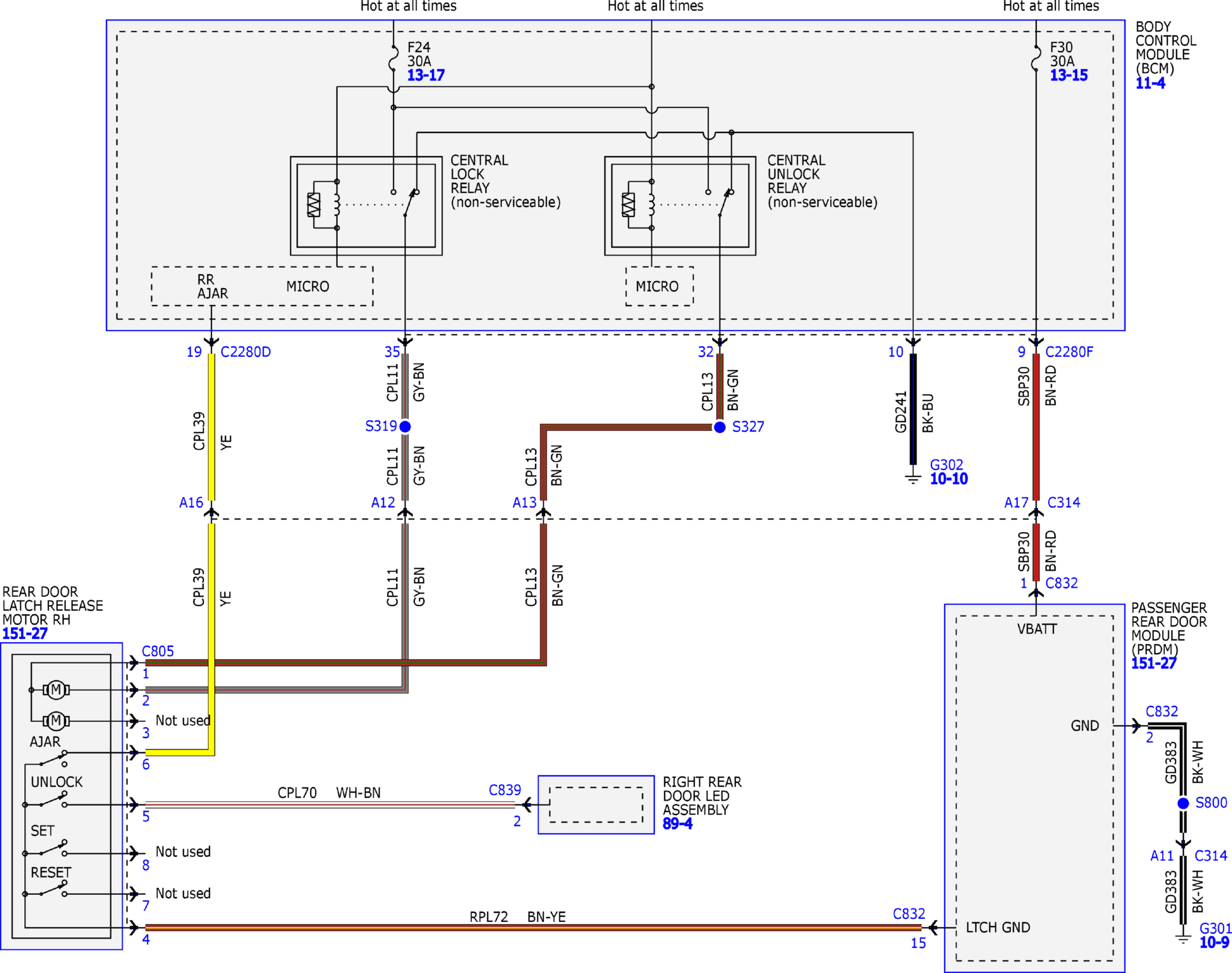

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 15)
Courtesy of FORD MOTOR COMPANY

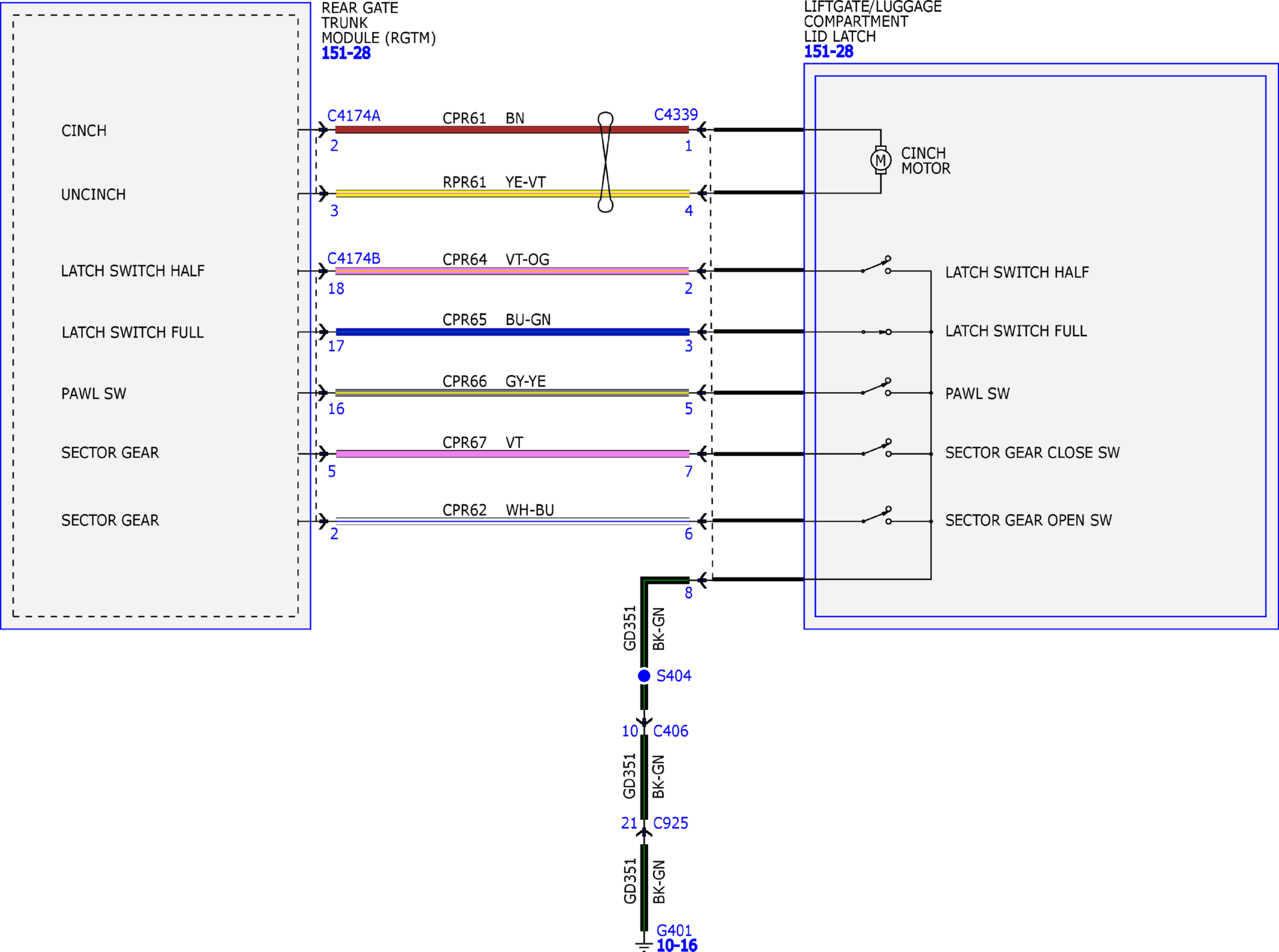

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 15)
Courtesy of FORD MOTOR COMPANY

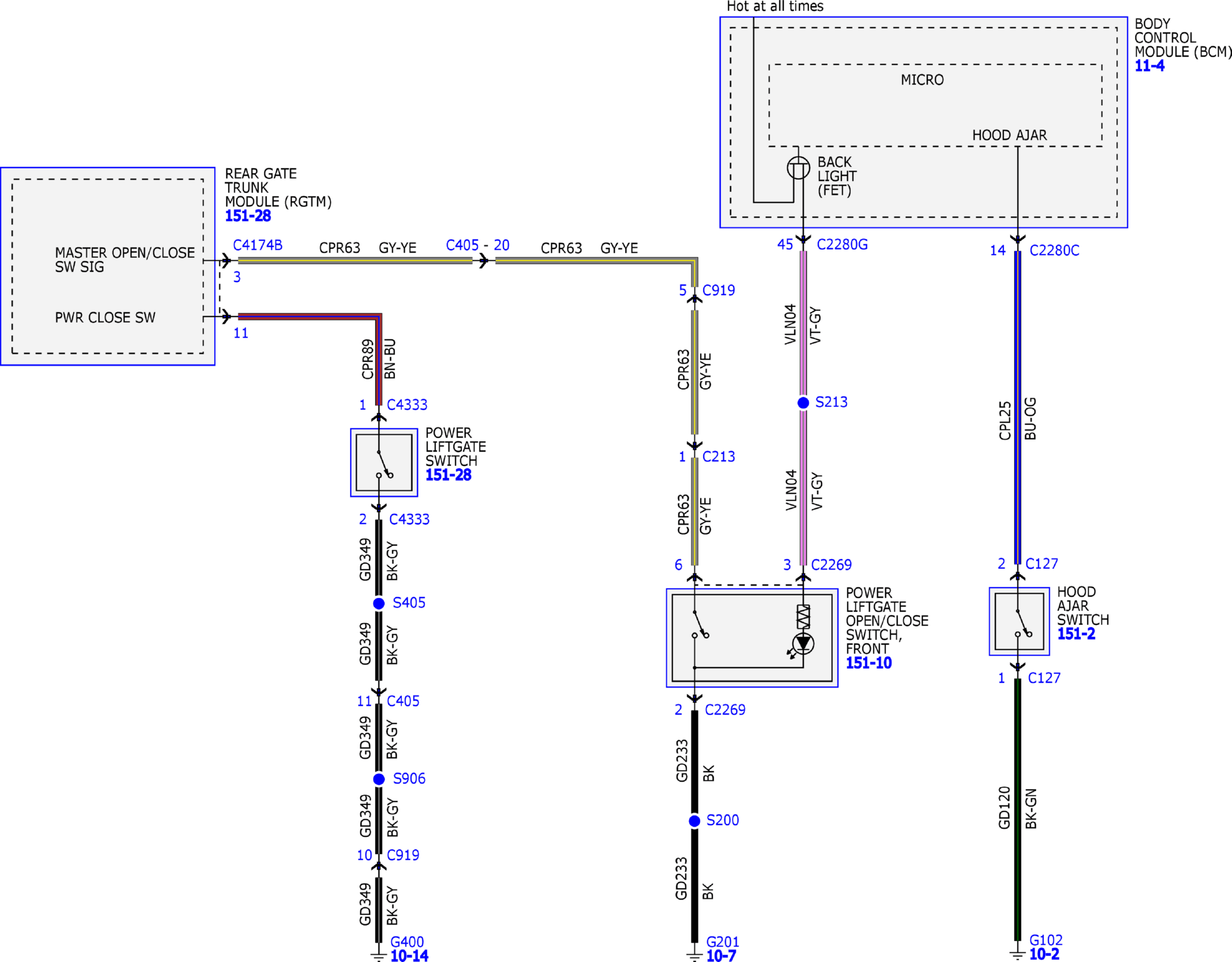

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 15)
Courtesy of FORD MOTOR COMPANY

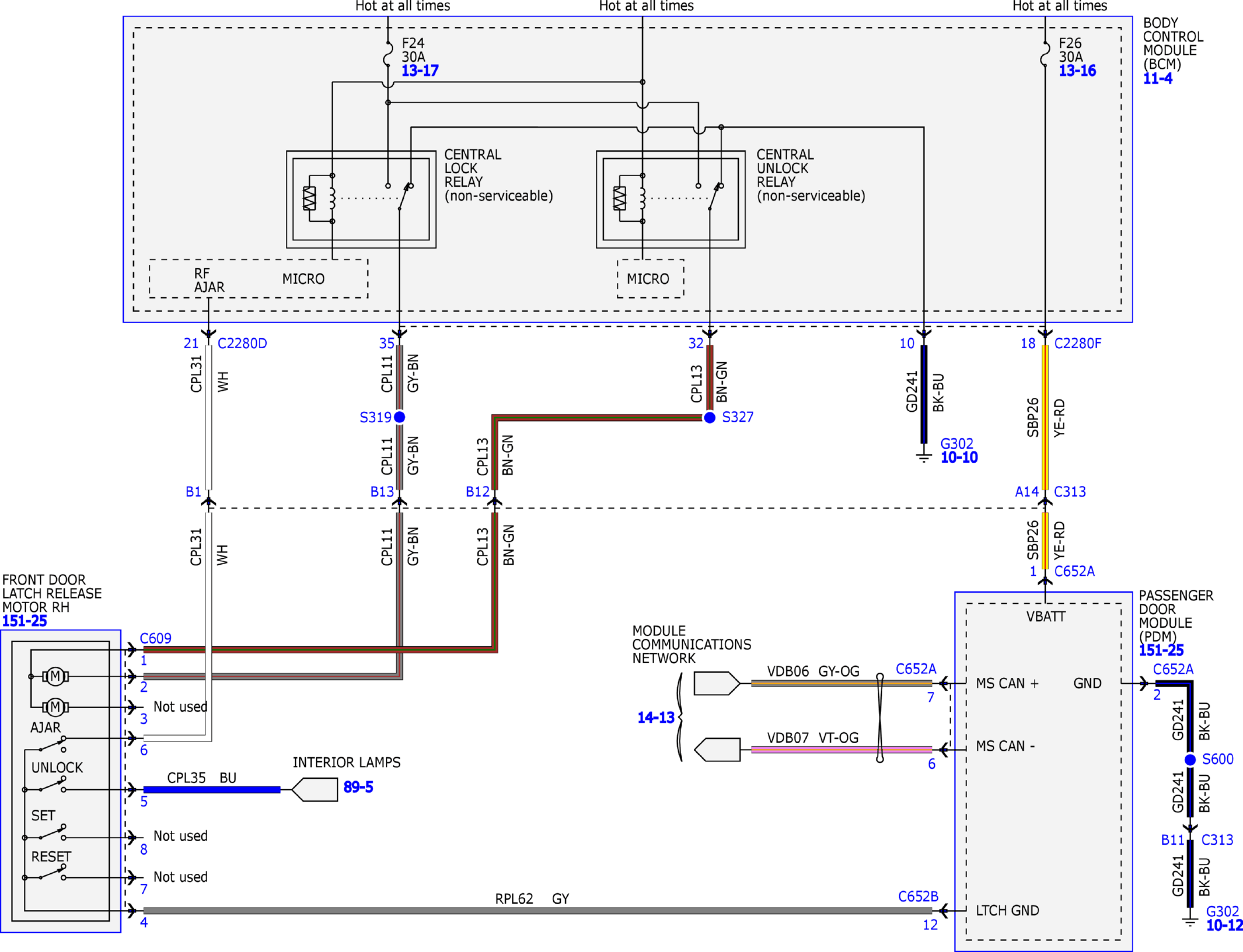

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 15)
Courtesy of FORD MOTOR COMPANY

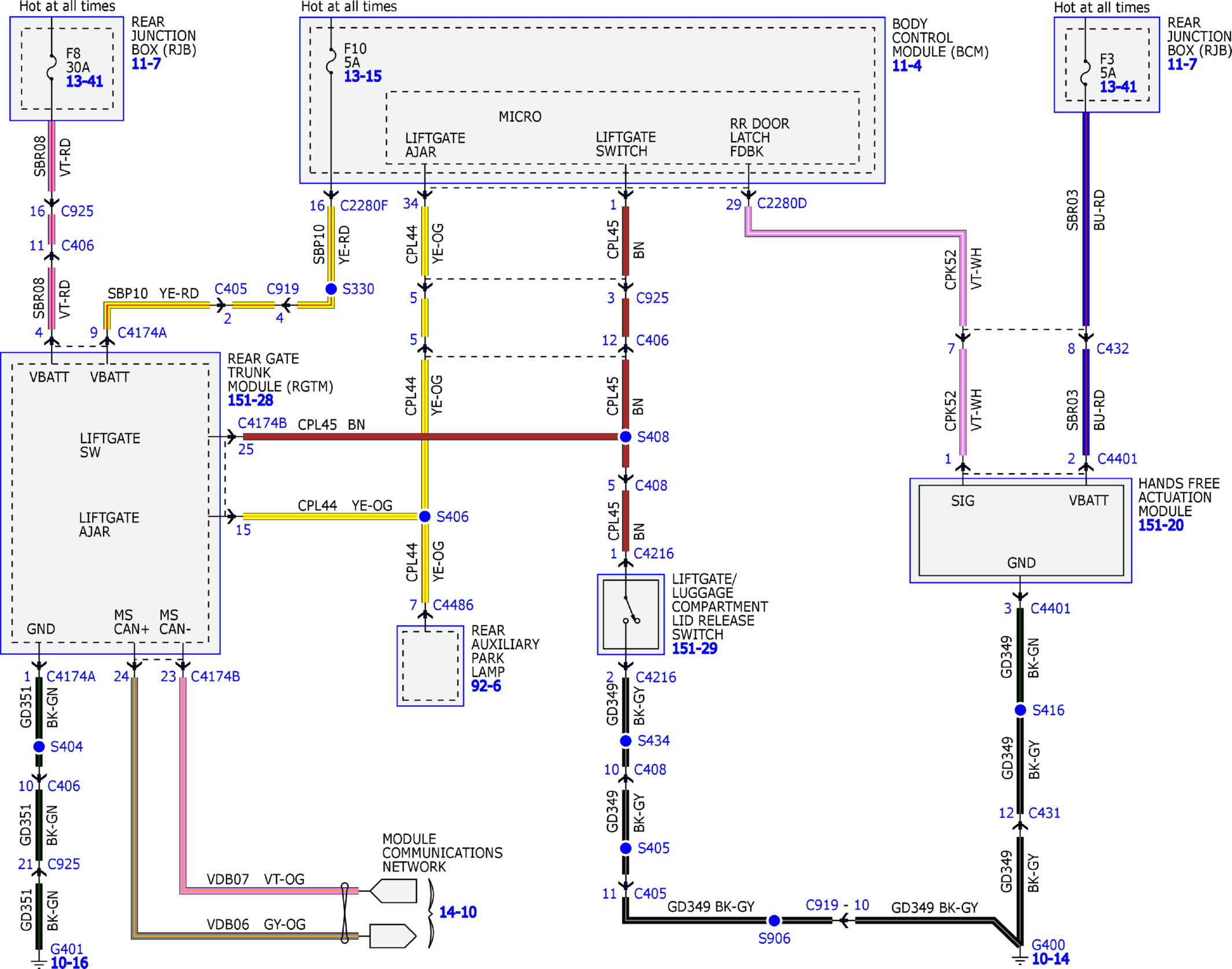

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 15)
Courtesy of FORD MOTOR COMPANY

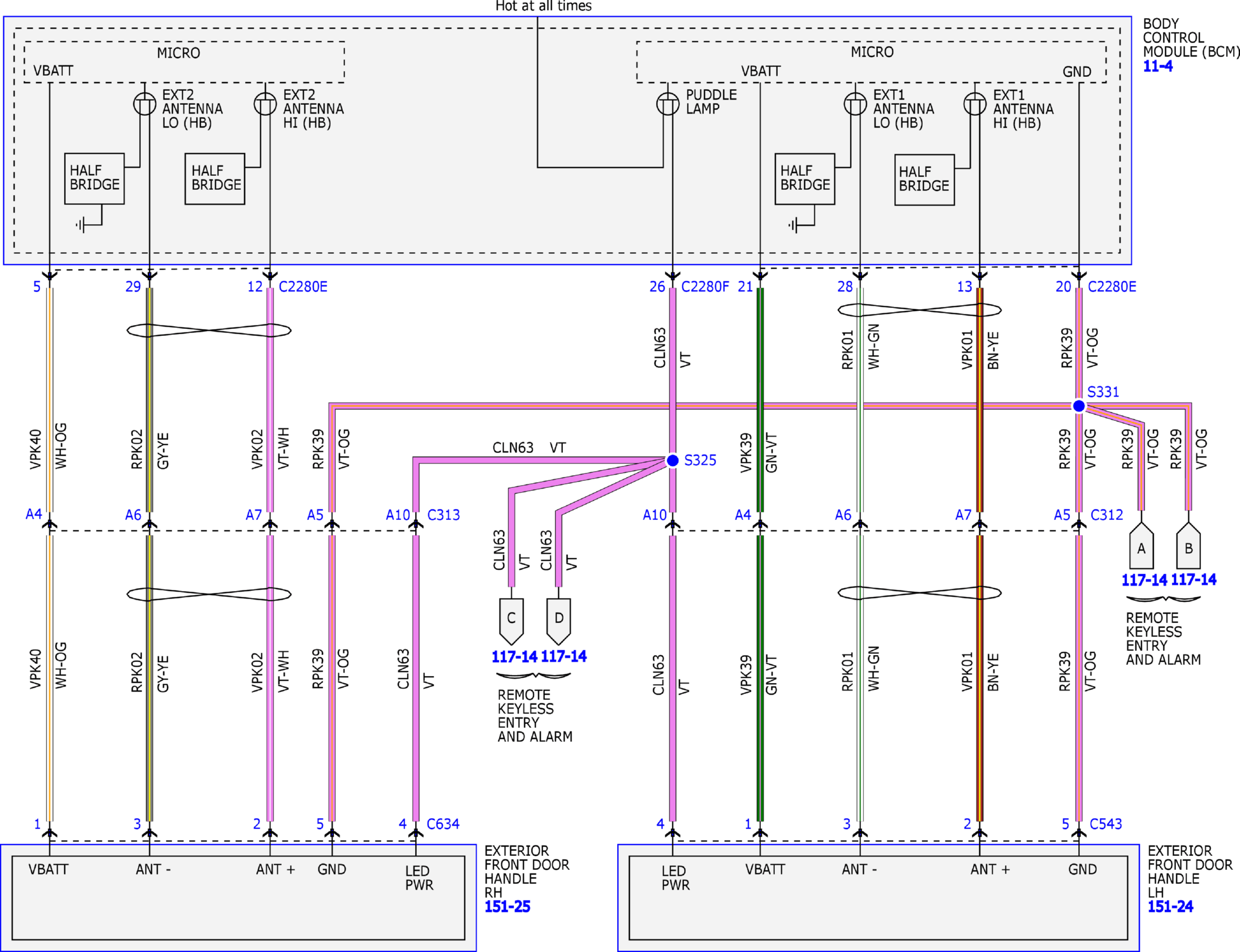

Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry And Alarm Wiring Diagram (10 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 11: Remote Keyless Entry And Alarm Wiring Diagram (11 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 12: Remote Keyless Entry And Alarm Wiring Diagram (12 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 13: Remote Keyless Entry And Alarm Wiring Diagram (13 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 14: Remote Keyless Entry And Alarm Wiring Diagram (14 Of 15)
Courtesy of FORD MOTOR COMPANY
Fig 15: Remote Keyless Entry And Alarm Wiring Diagram (15 Of 15)
