Section 1167 (OEM Wiring Diagrams)
>>
Power Seats
Power Seats
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power Seats Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

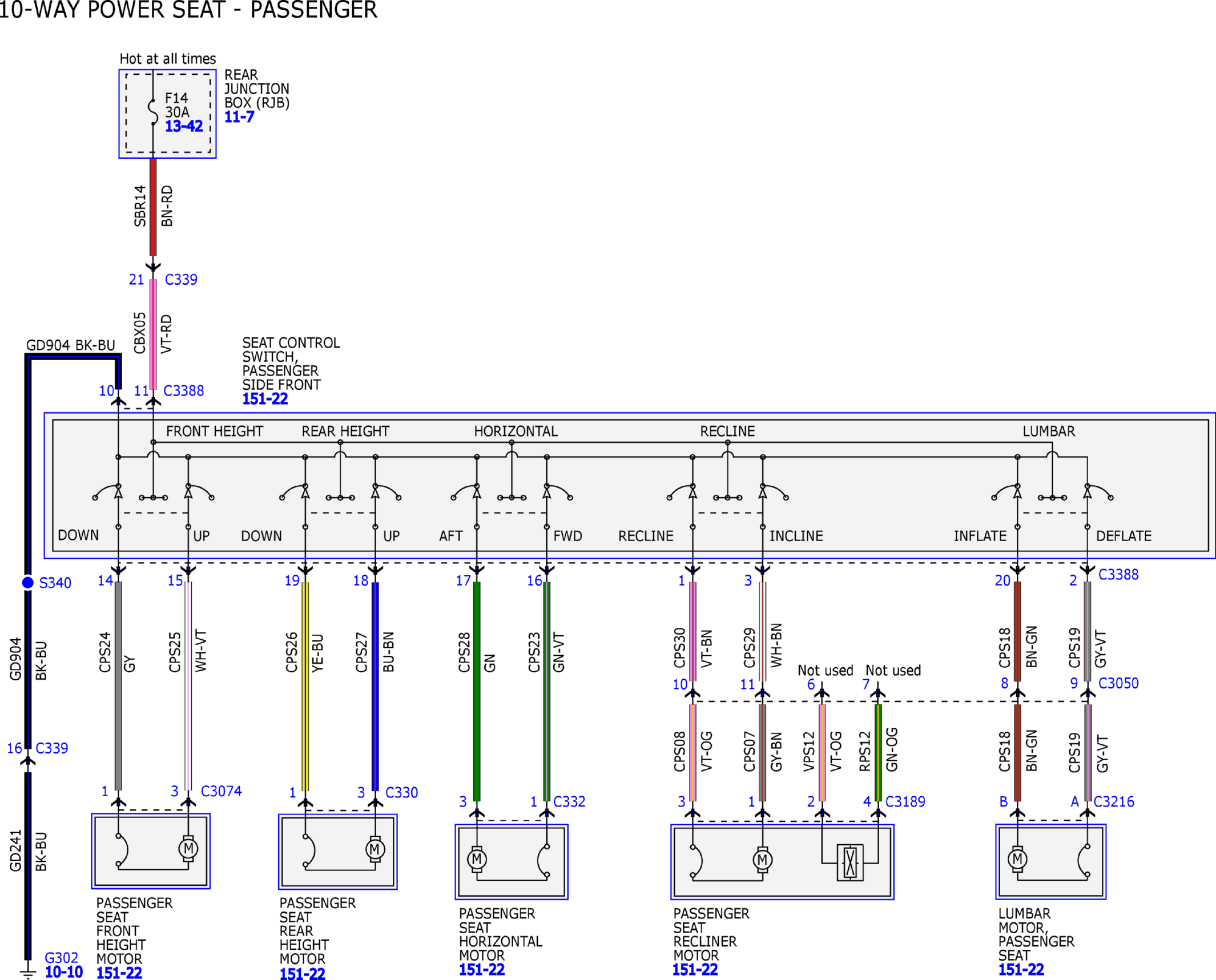

Fig 2: Power Seats Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
