WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

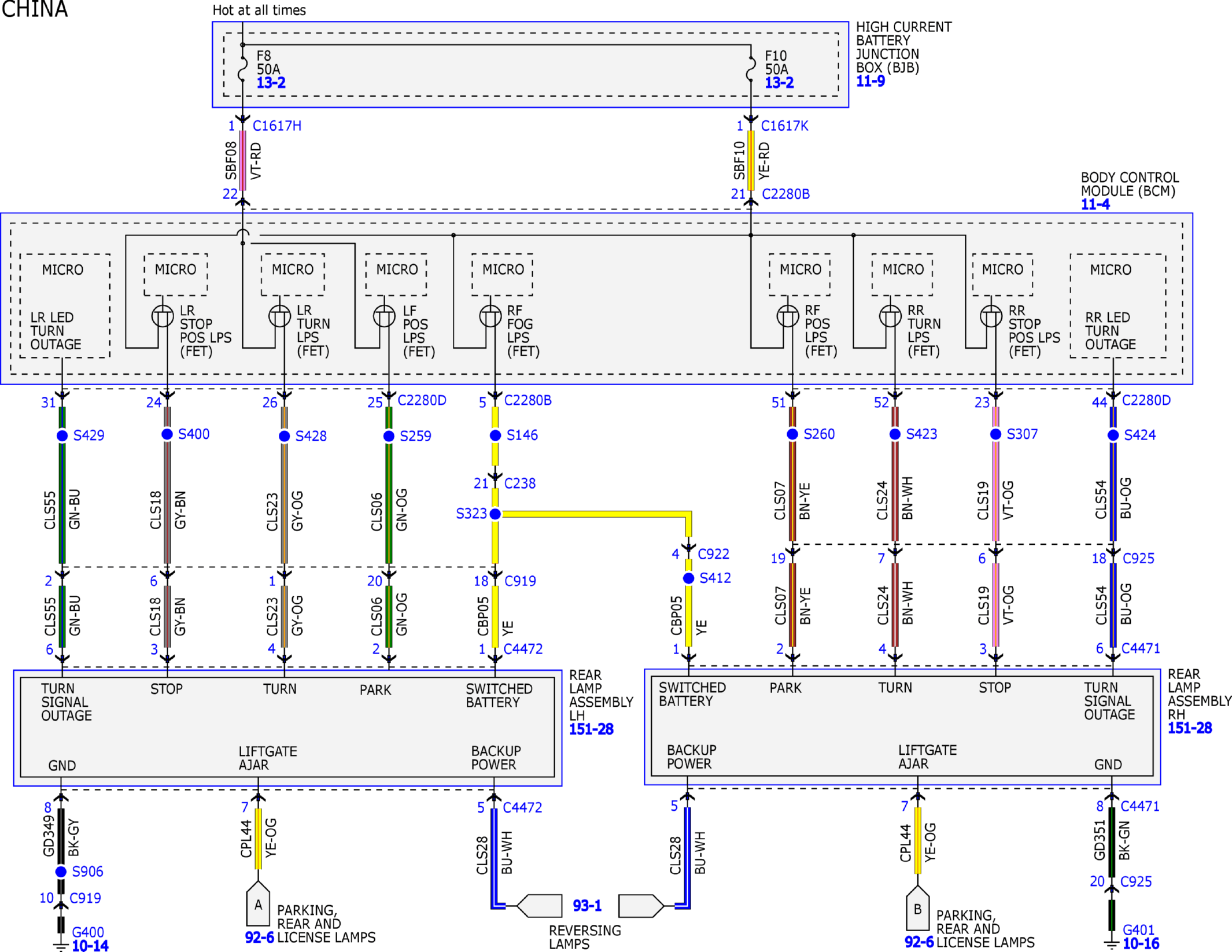

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR COMPANY

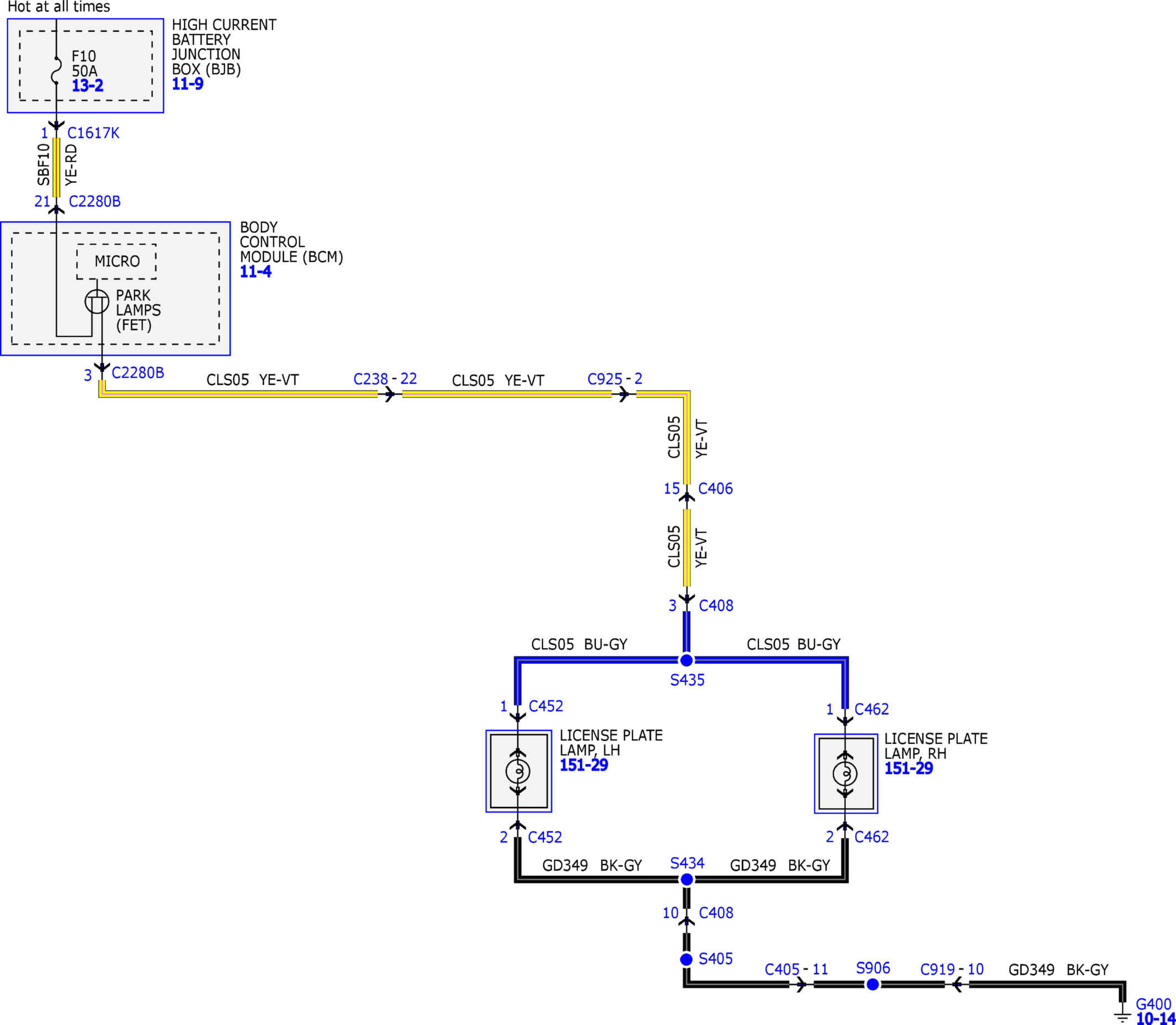

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR COMPANY

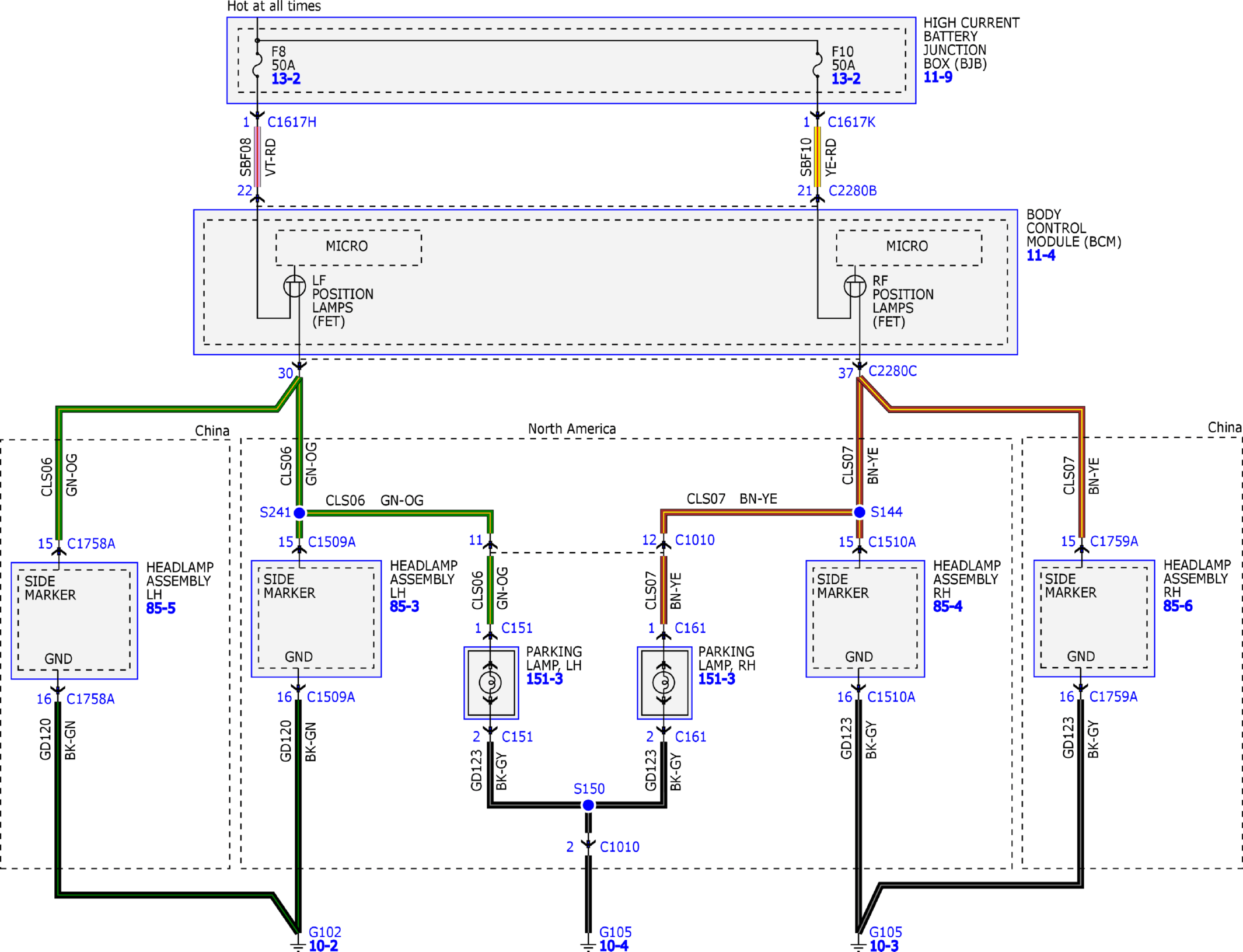

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR COMPANY

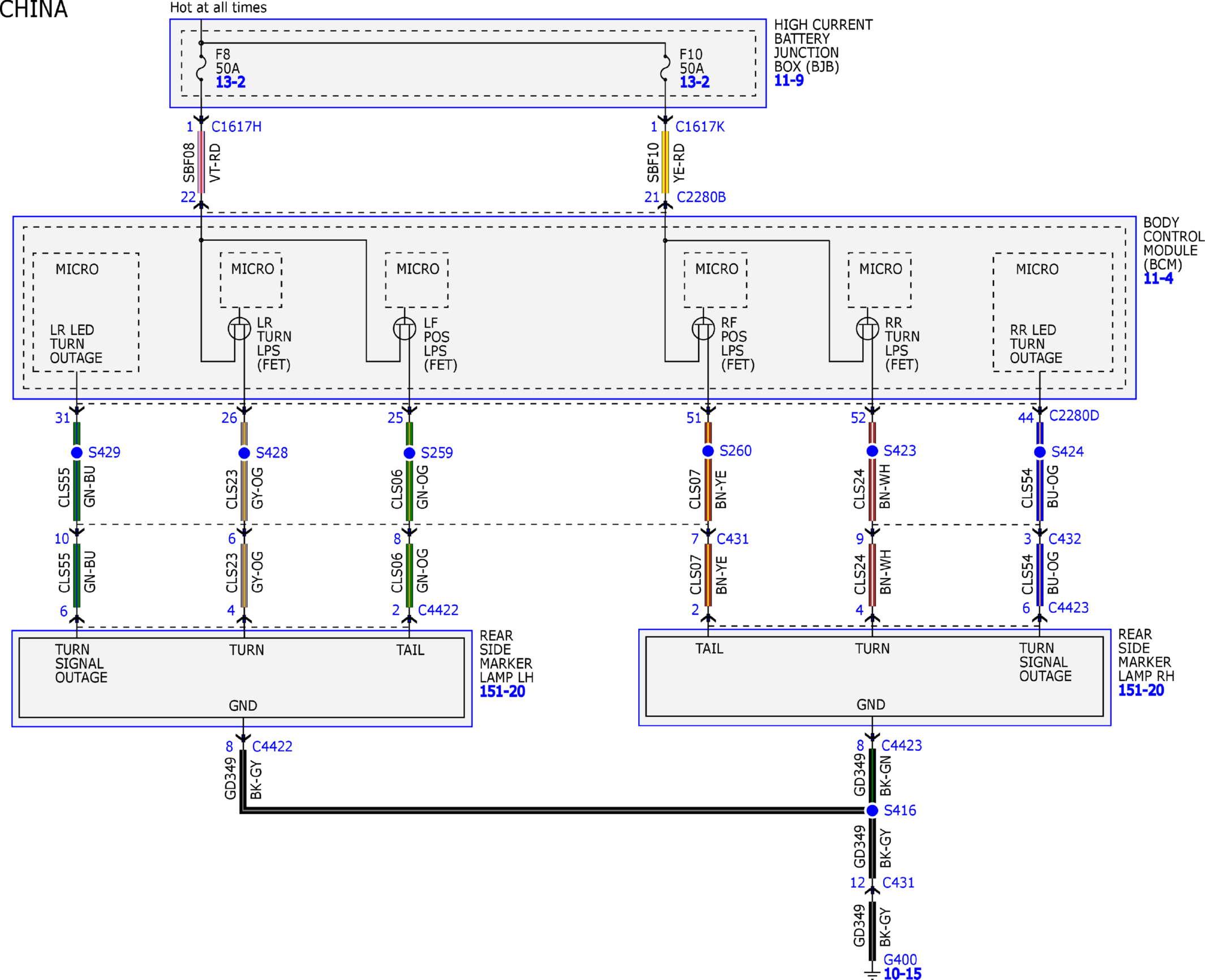

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR COMPANY

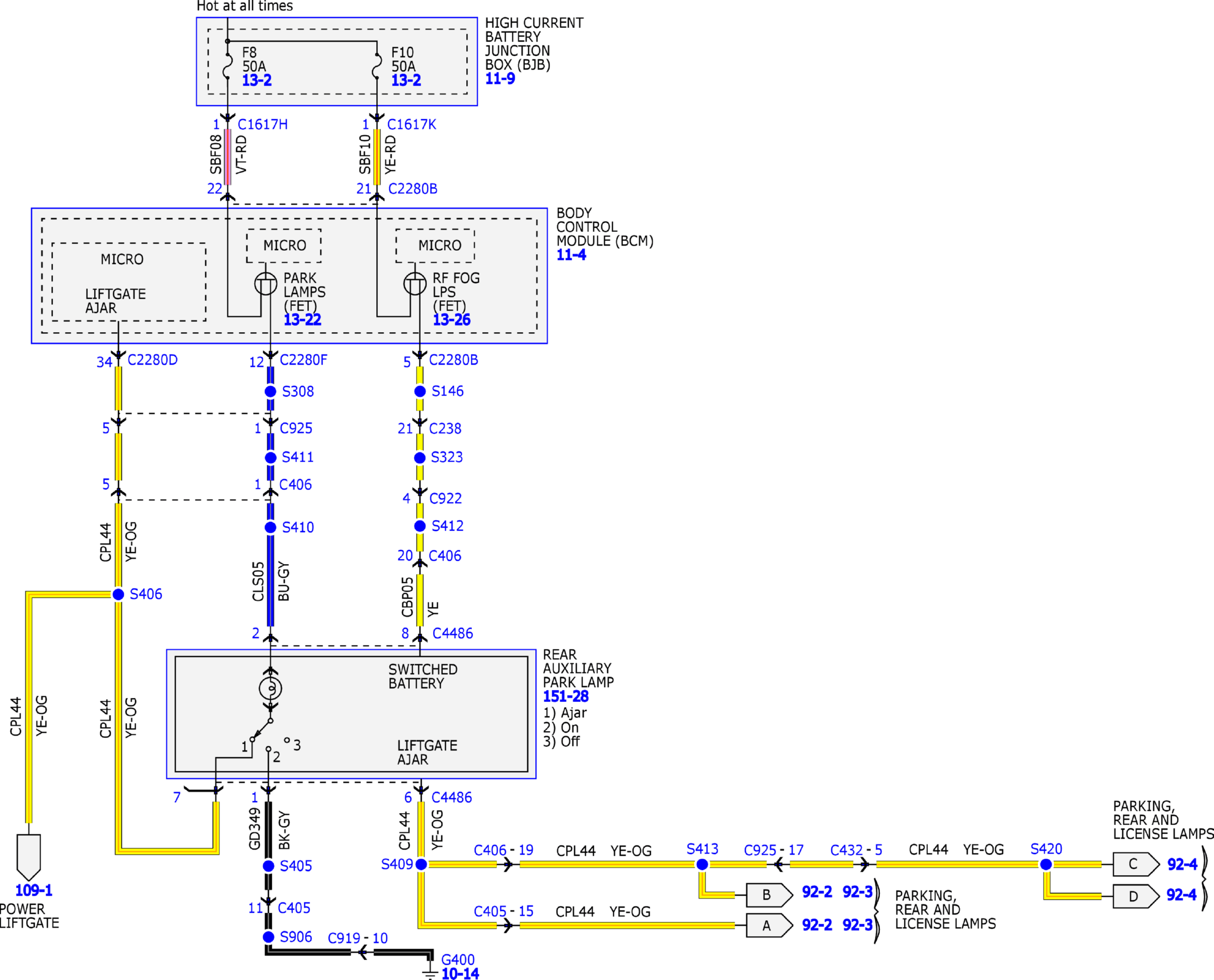

Fig 5: Parking, Rear and License Lamps Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR COMPANY

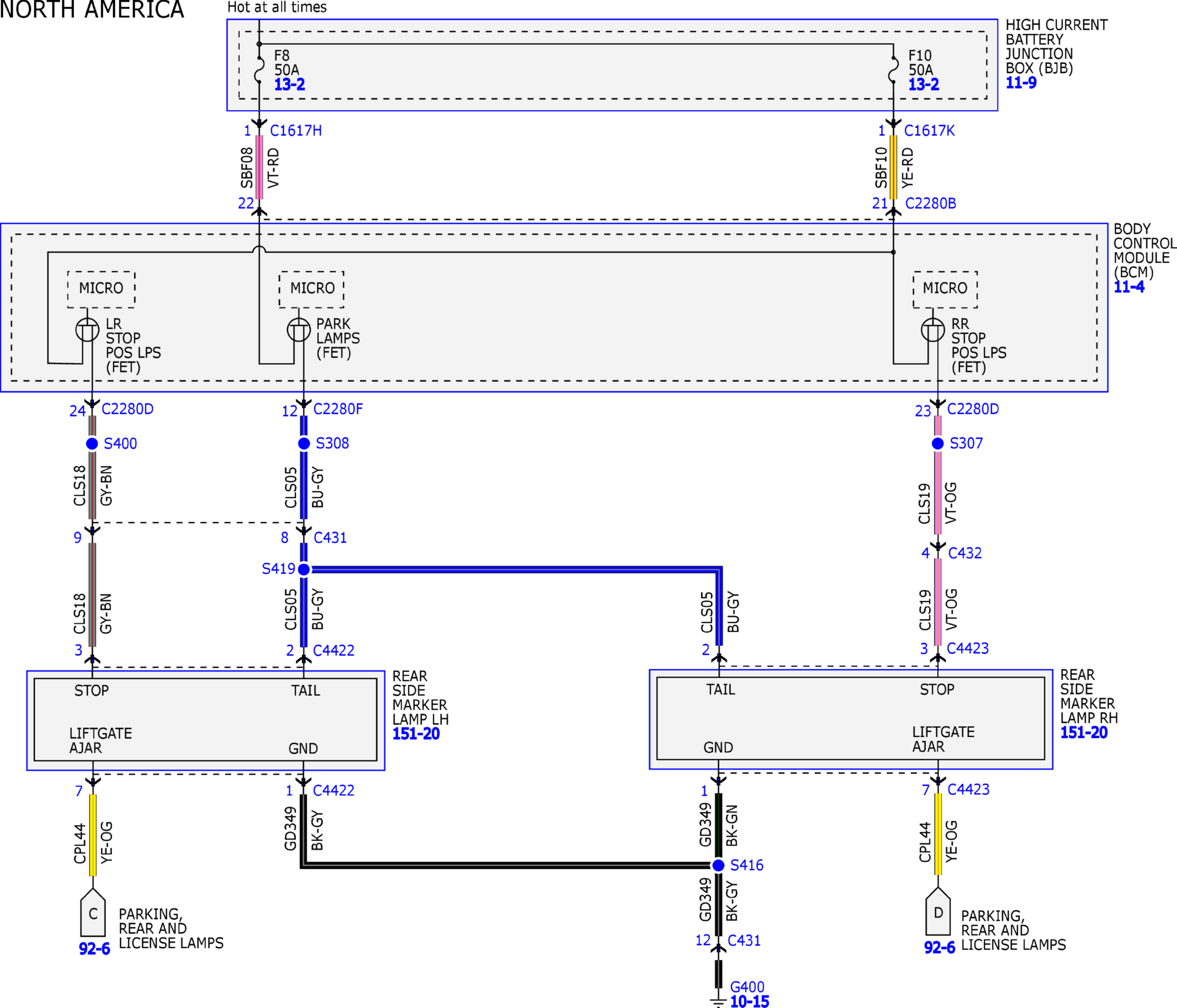

Fig 6: Parking, Rear and License Lamps Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

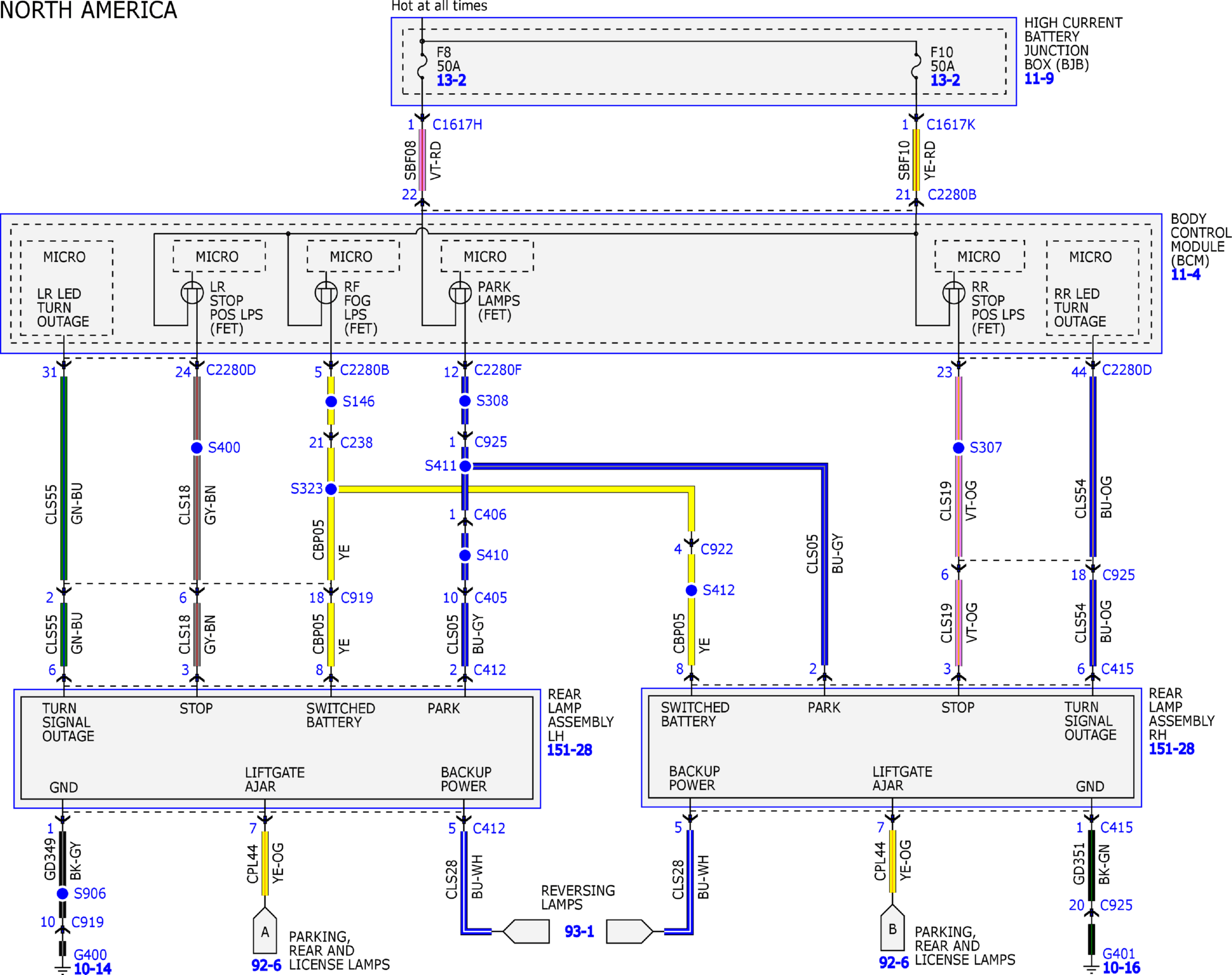

Fig 7: Parking, Rear and License Lamps Wiring Diagram (7 Of 7)
