WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

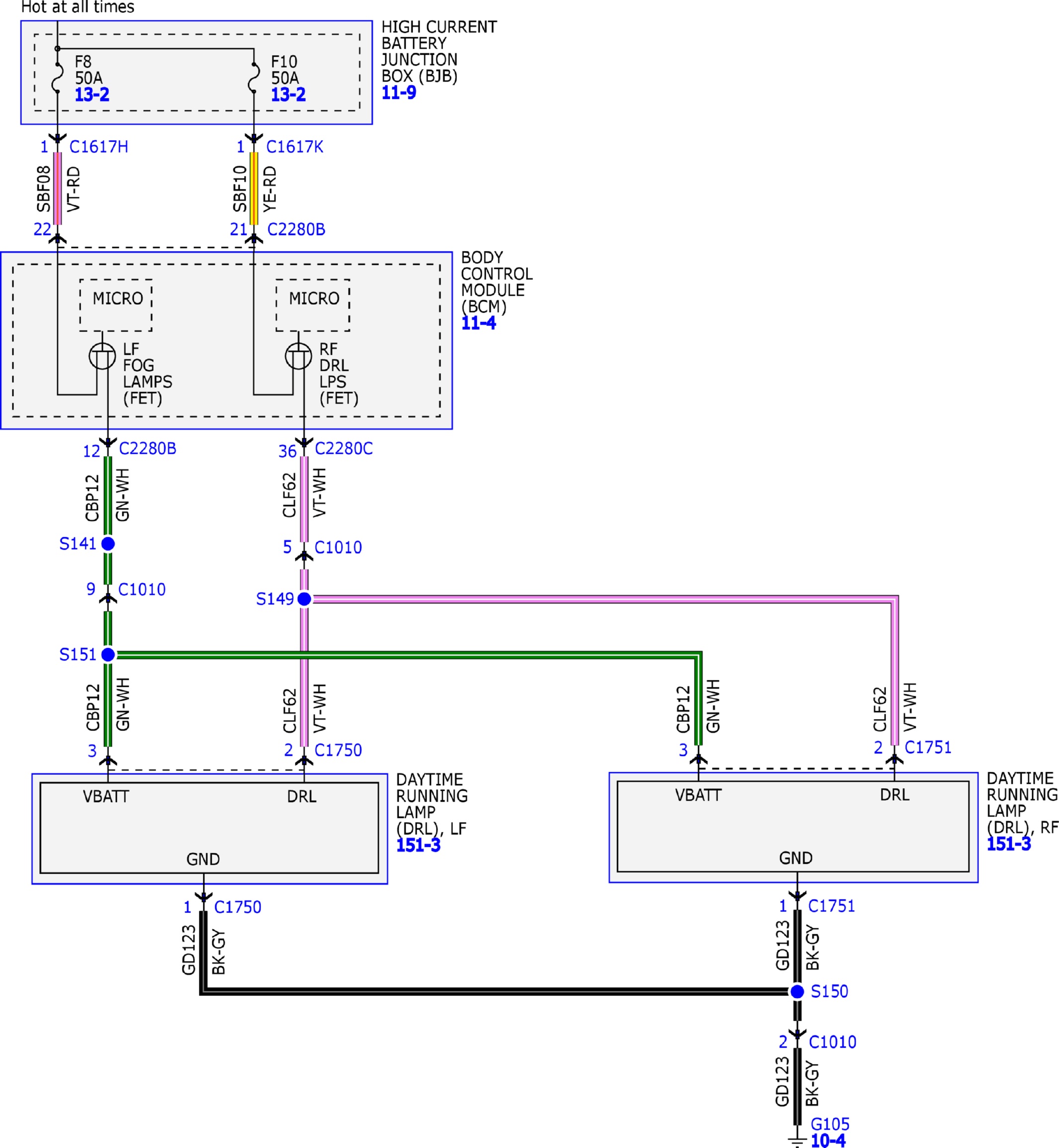

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 7)
Courtesy of FORD MOTOR COMPANY

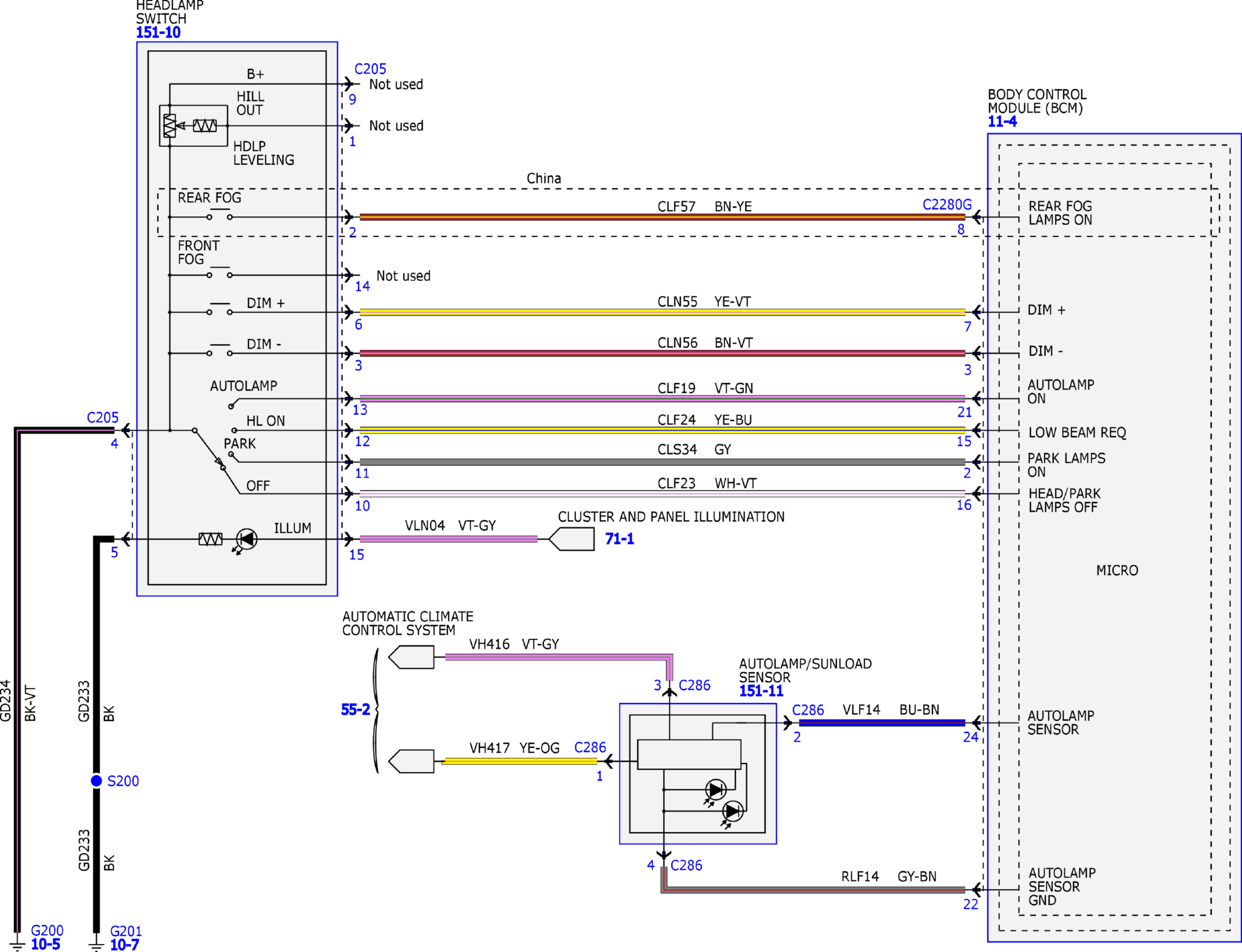

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 7)
Courtesy of FORD MOTOR COMPANY

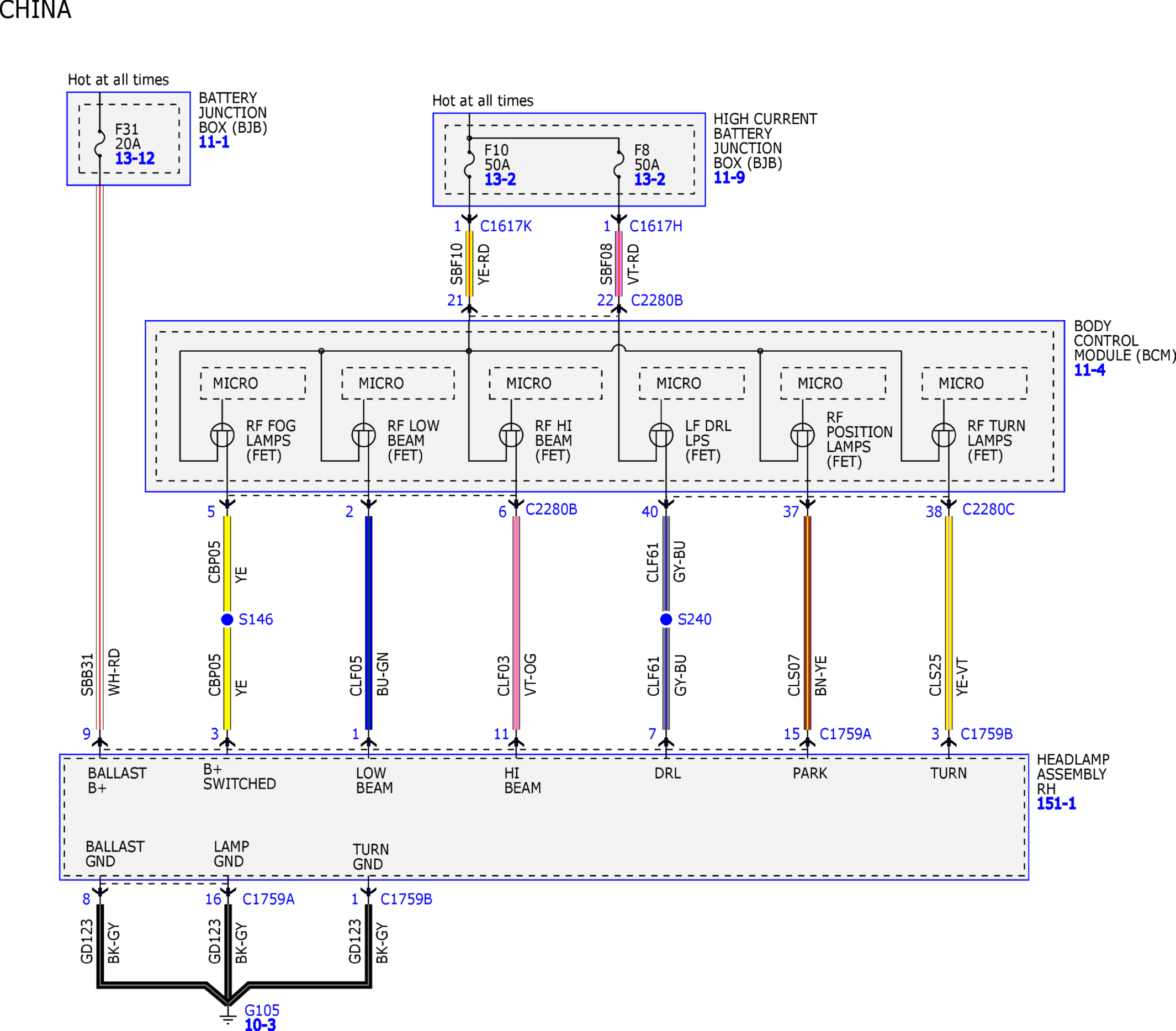

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 7)
Courtesy of FORD MOTOR COMPANY

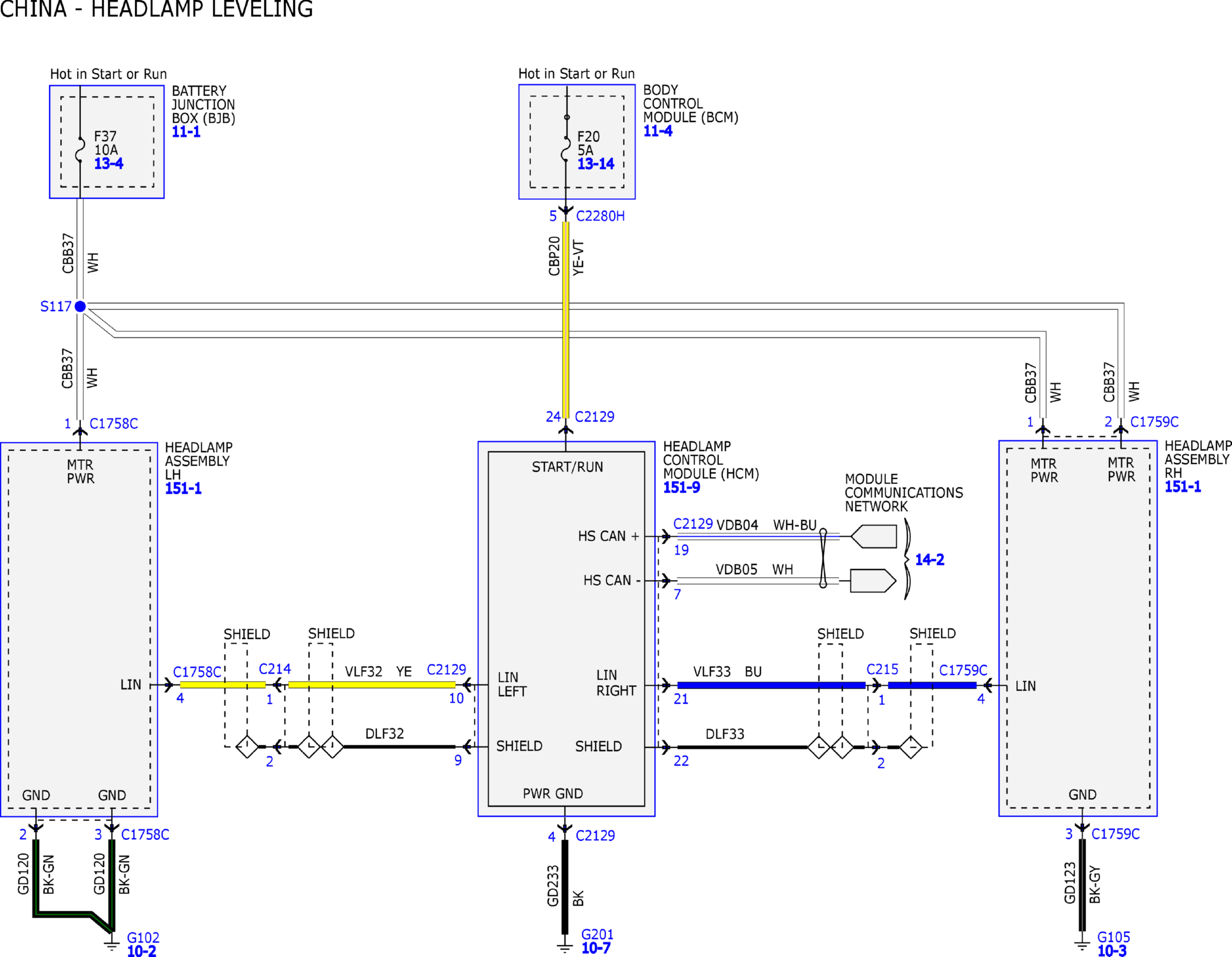

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 7)
Courtesy of FORD MOTOR COMPANY

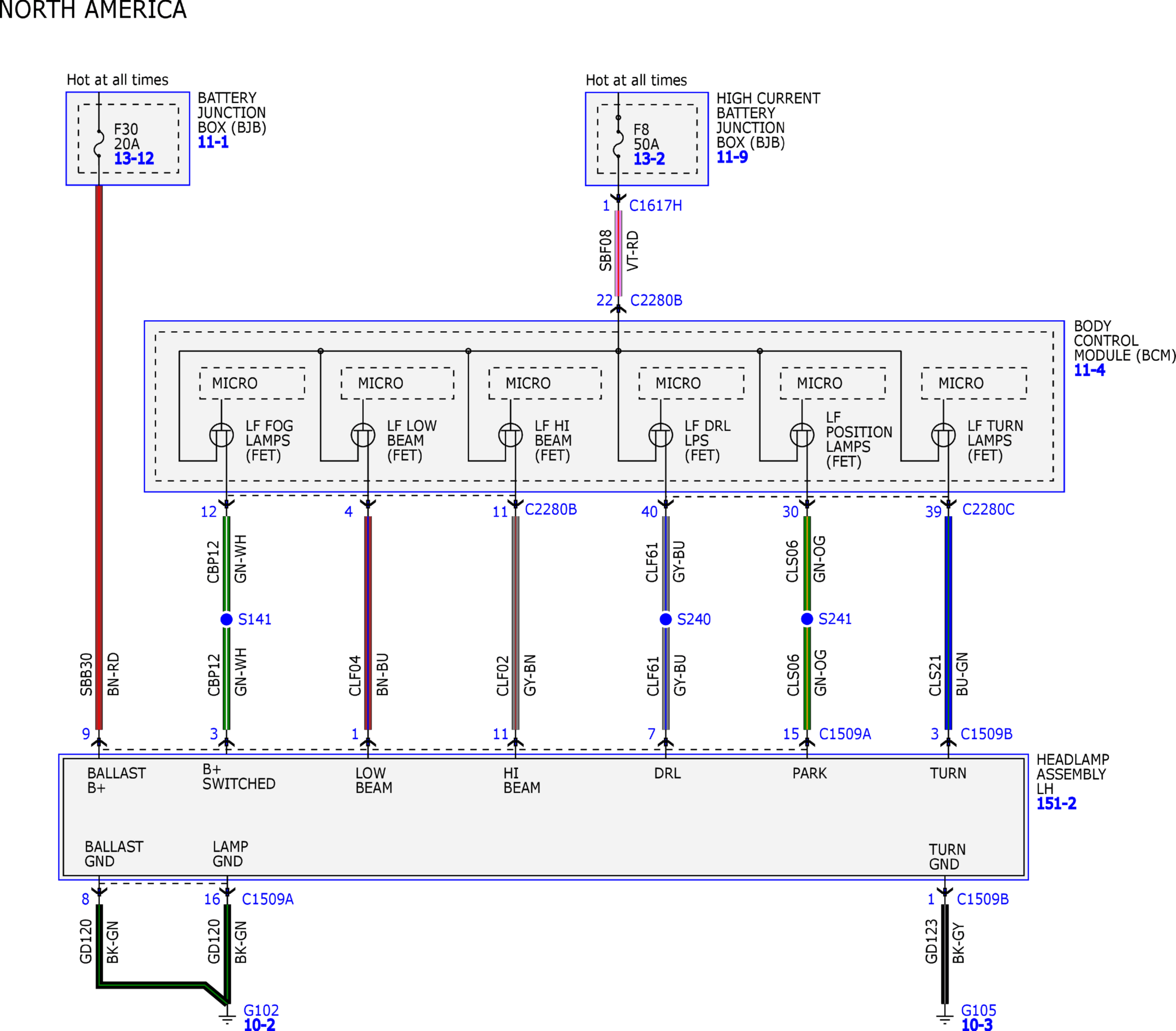

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 7)
Courtesy of FORD MOTOR COMPANY

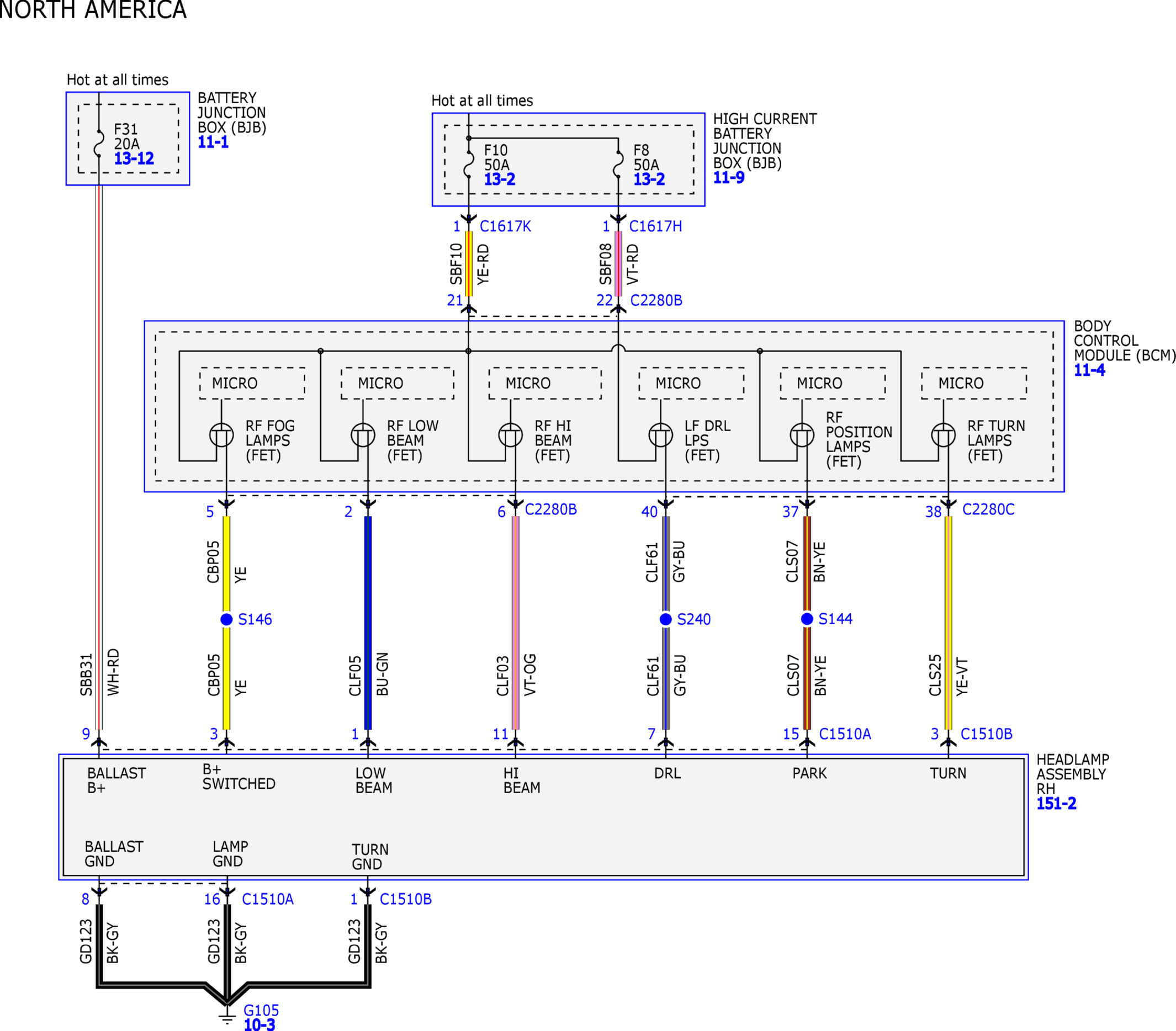

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 7)
Courtesy of FORD MOTOR COMPANY

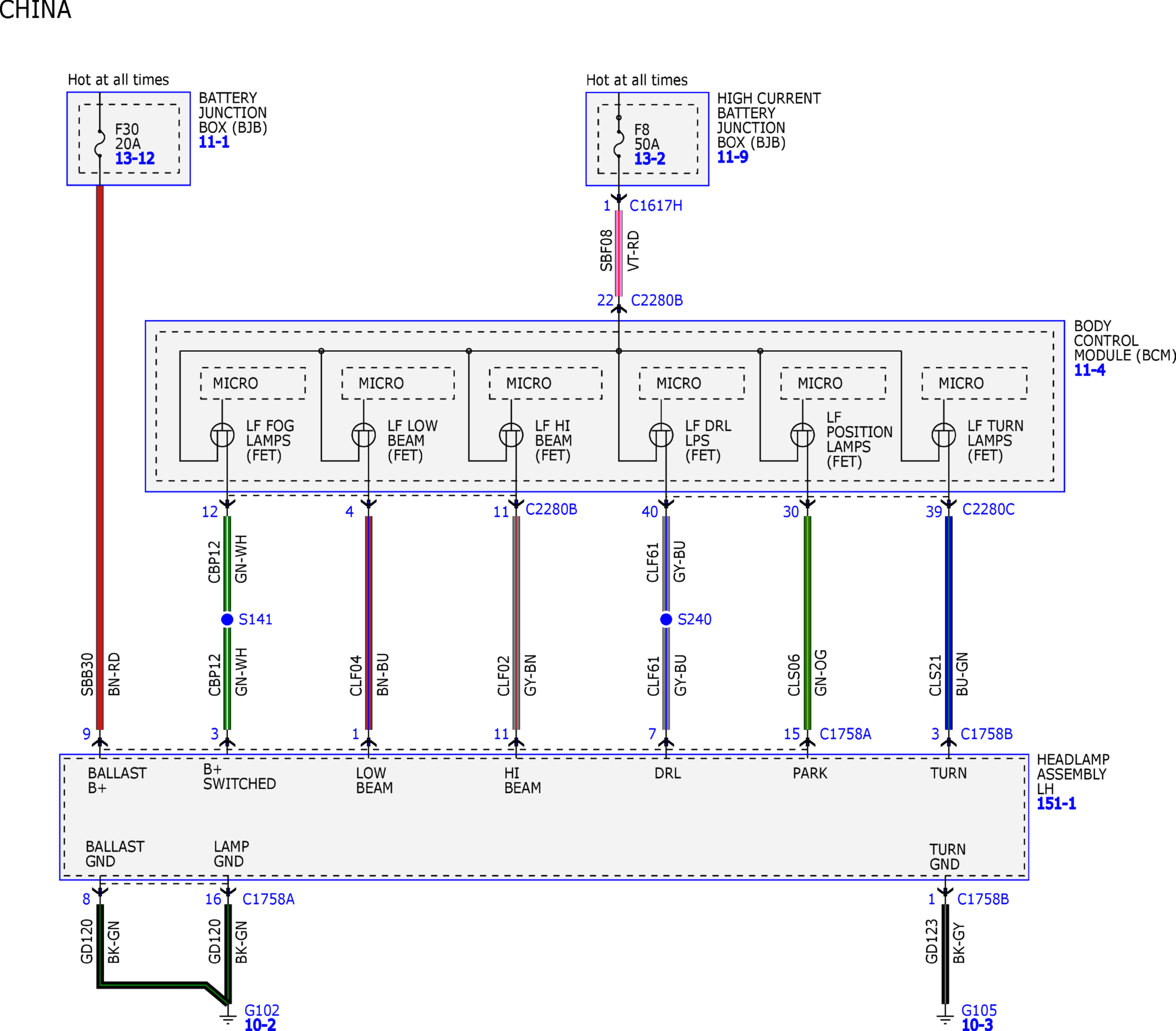

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 7)
