Electronic Engine Controls - 2.3L GTDI

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

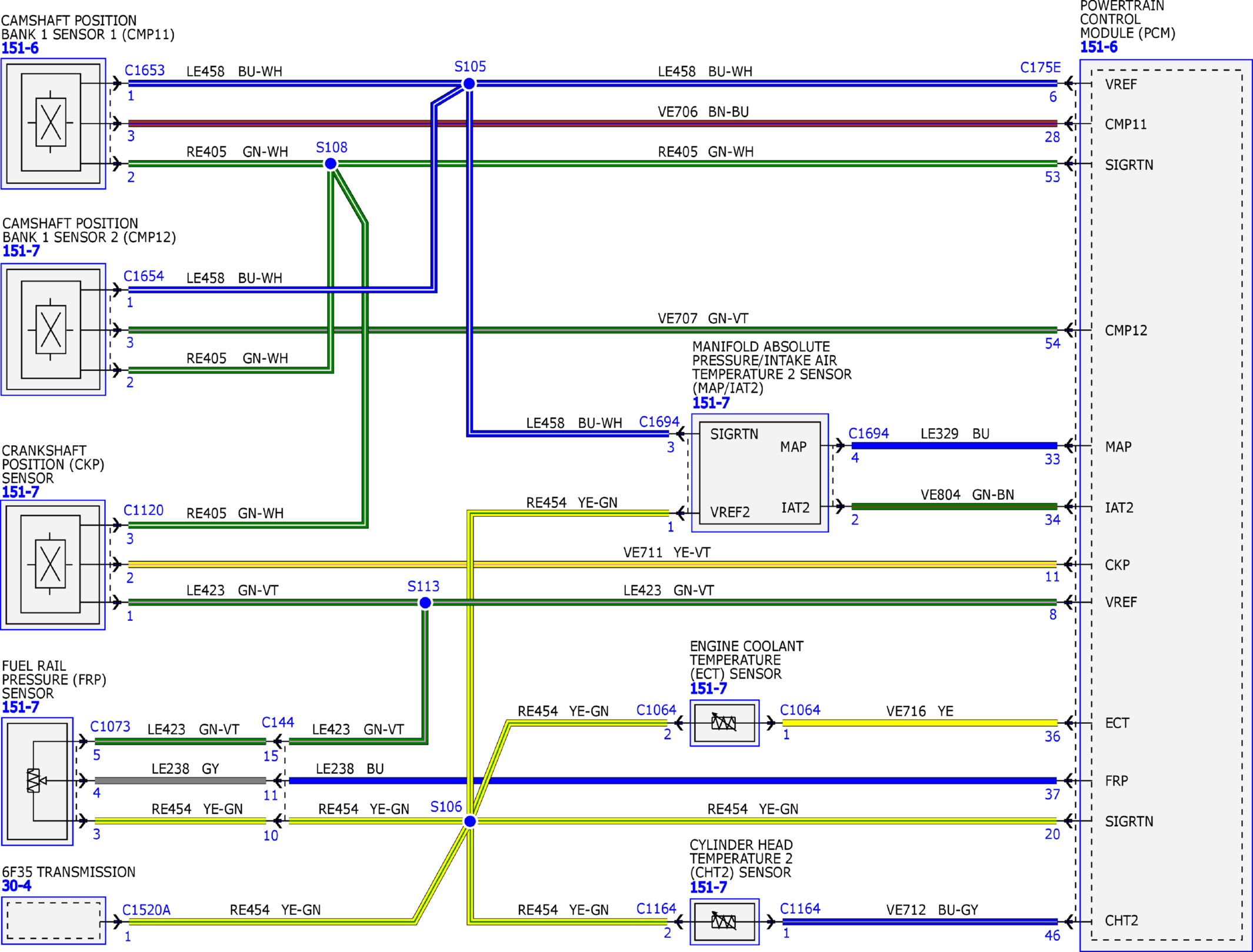

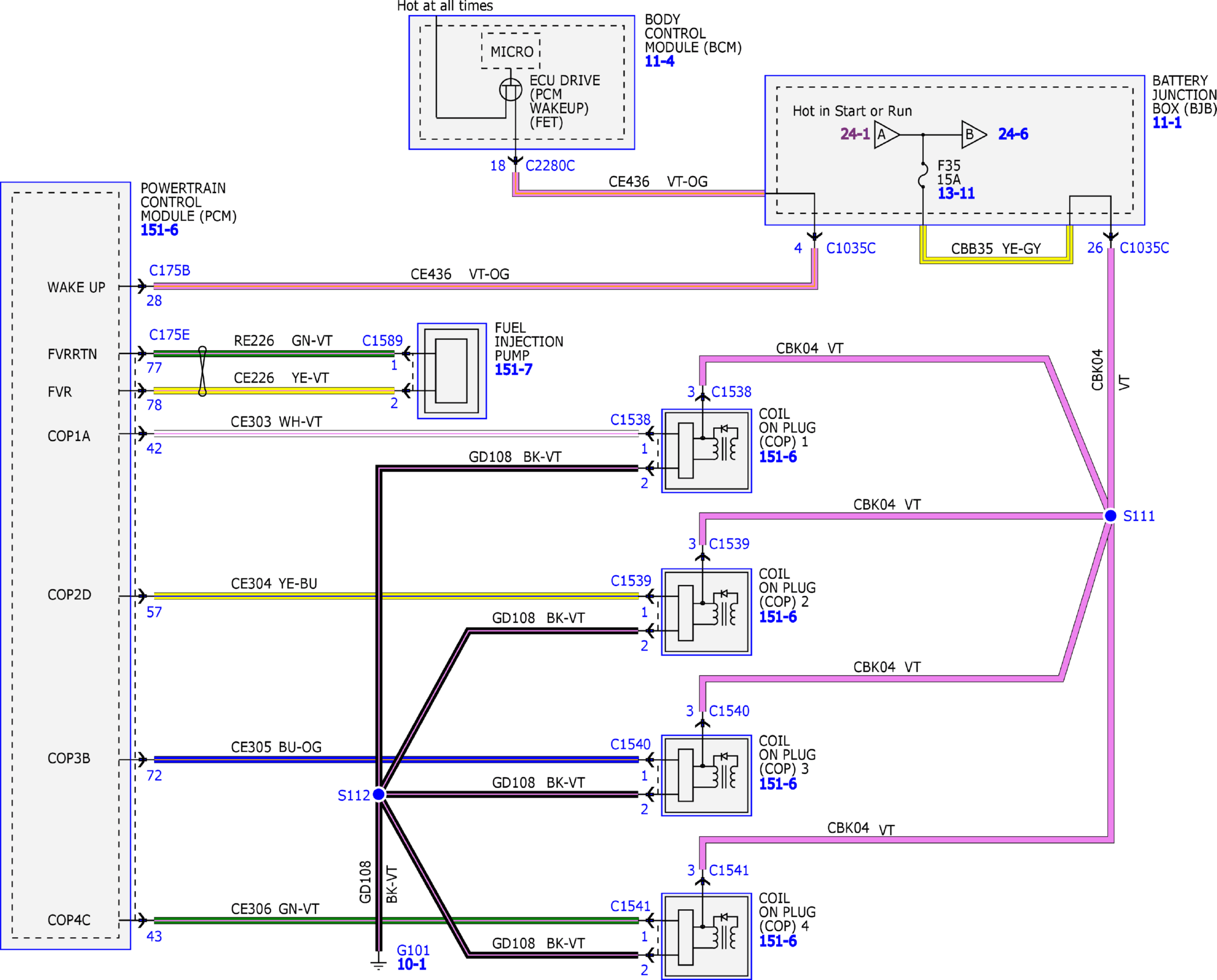

Fig 1: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (1 Of 13)

Courtesy of FORD MOTOR COMPANY

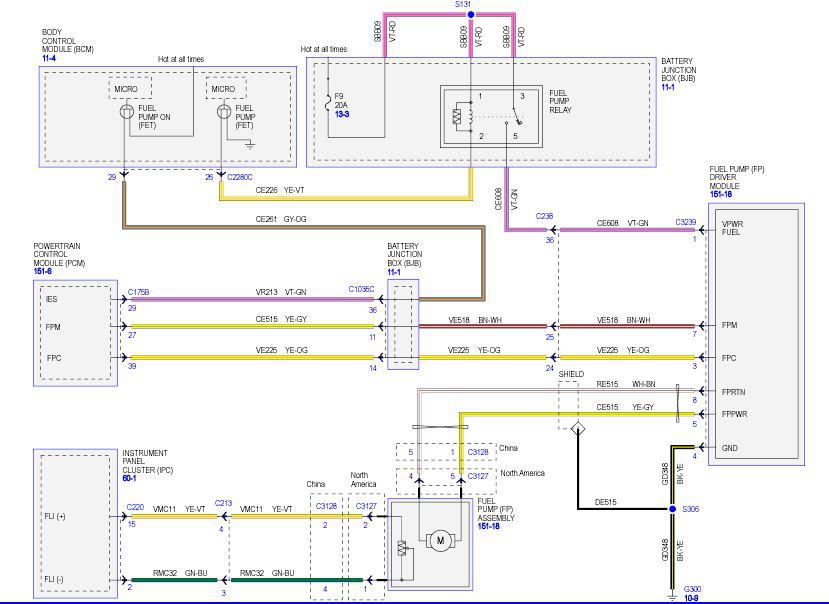

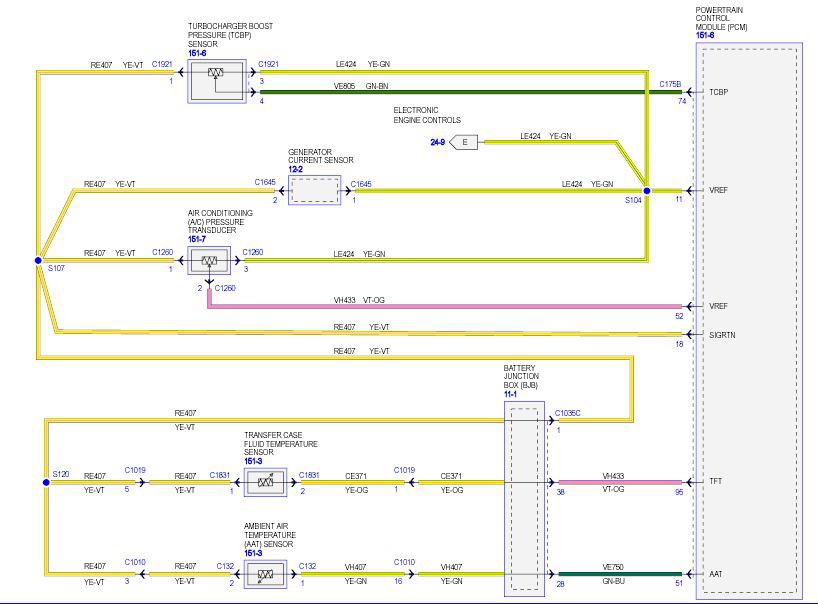

Fig 2: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (2 Of 13)

Courtesy of FORD MOTOR COMPANY

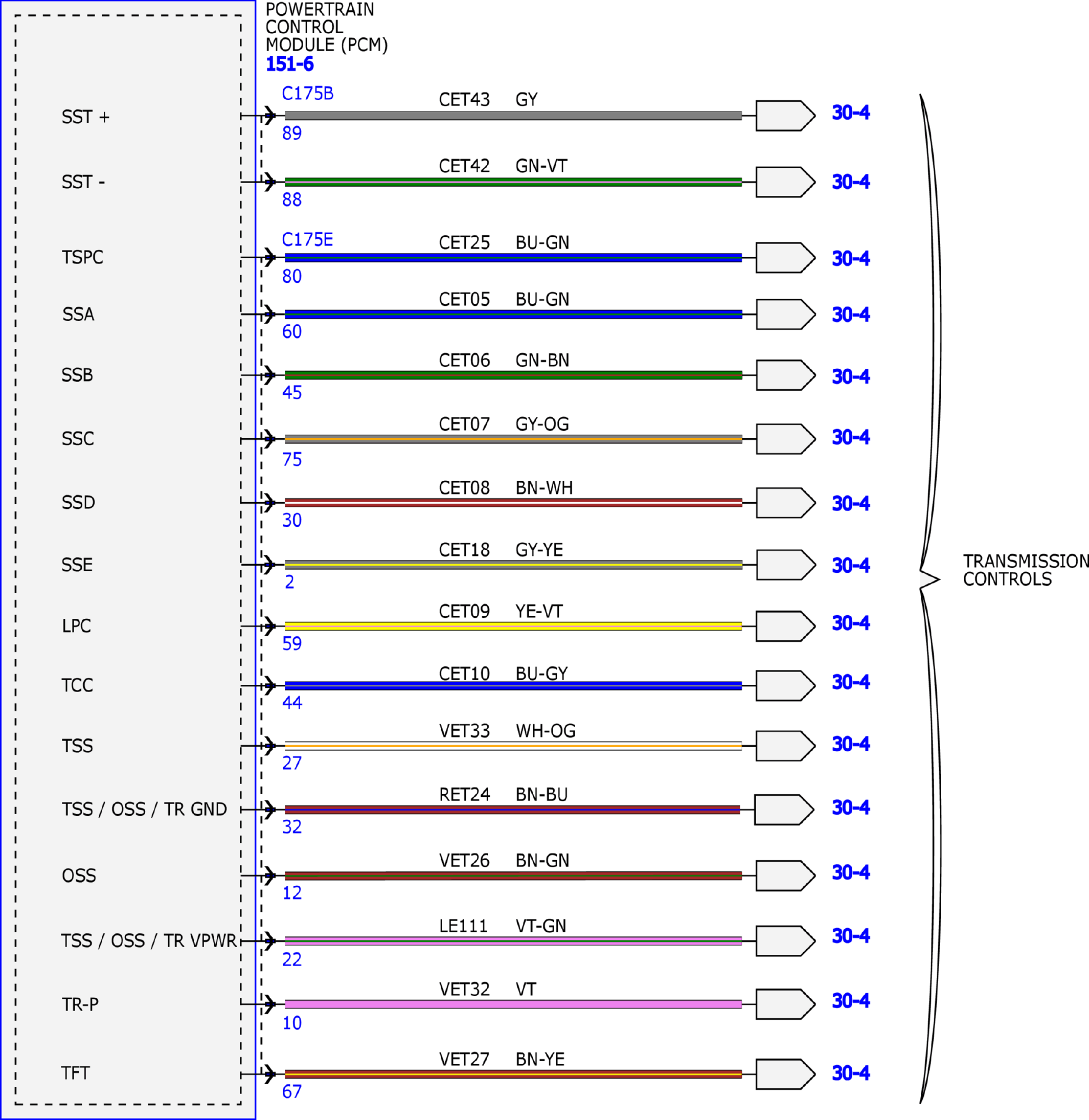

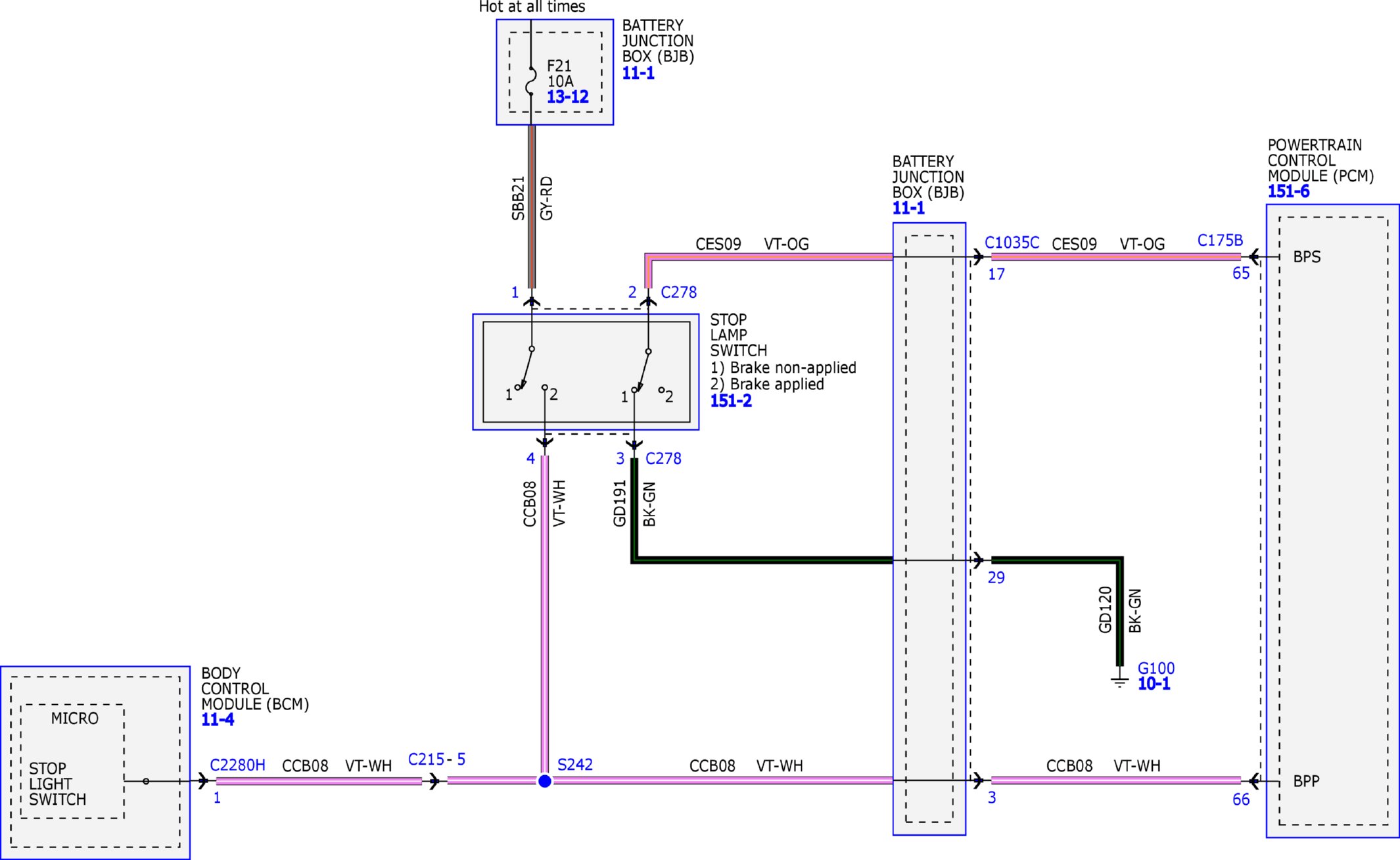

Fig 3: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (3 Of 13)

Courtesy of FORD MOTOR COMPANY

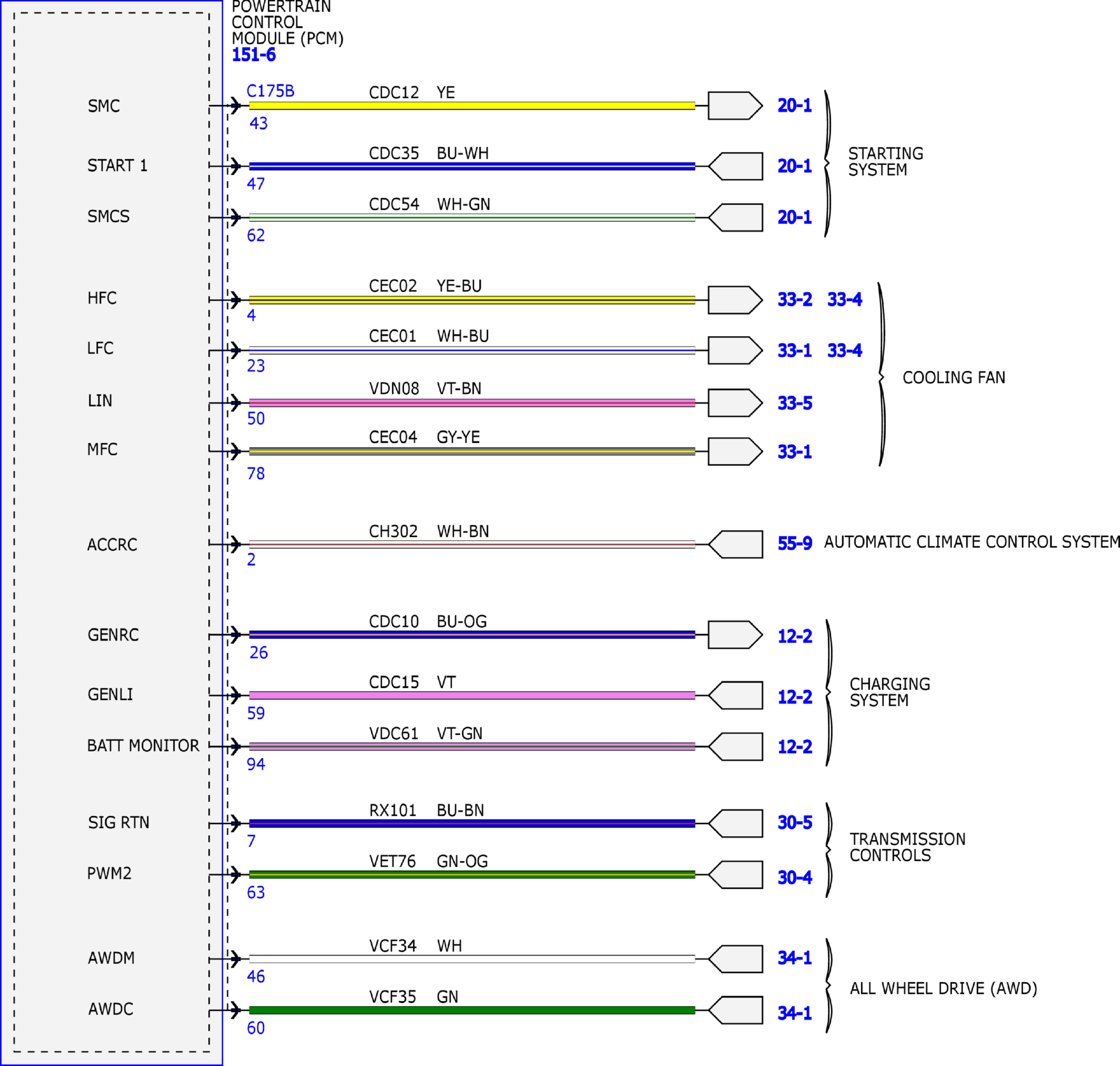

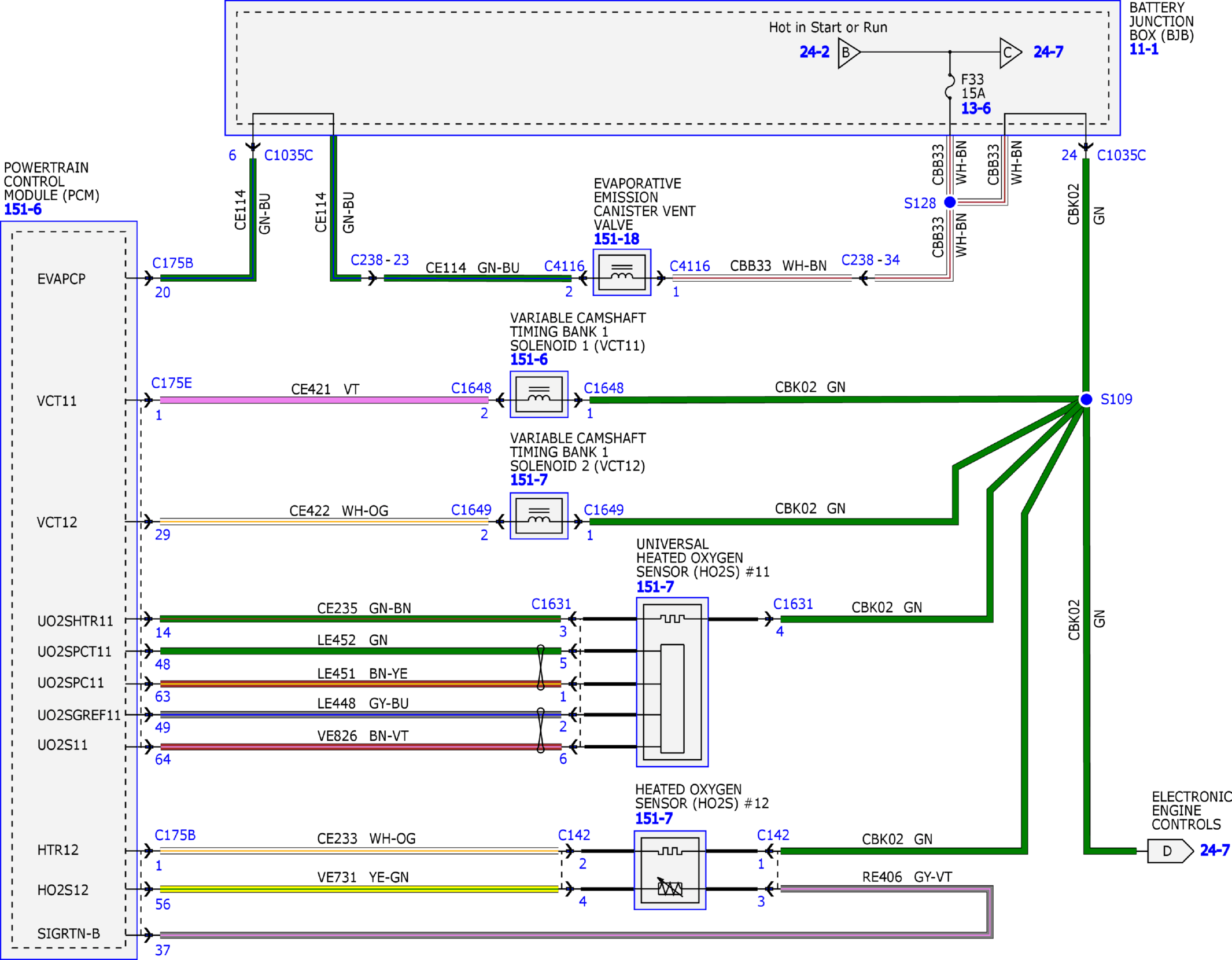

Fig 4: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (4 Of 13)

Courtesy of FORD MOTOR COMPANY

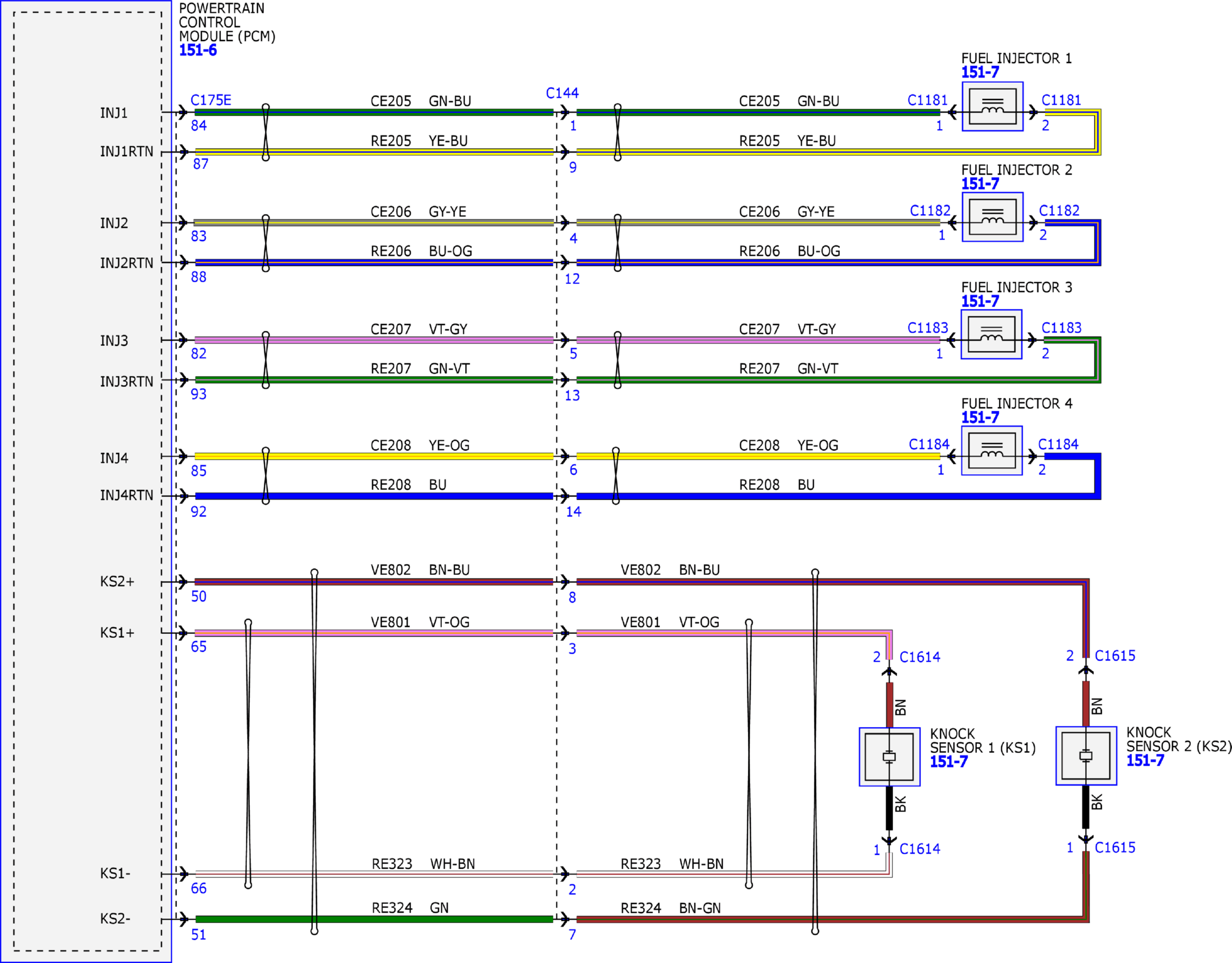

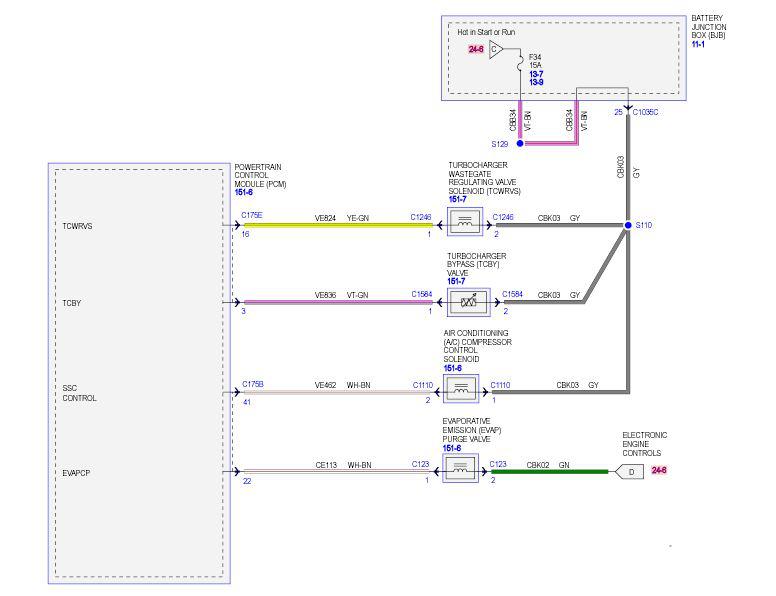

Fig 5: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (5 Of 13)

Courtesy of FORD MOTOR COMPANY

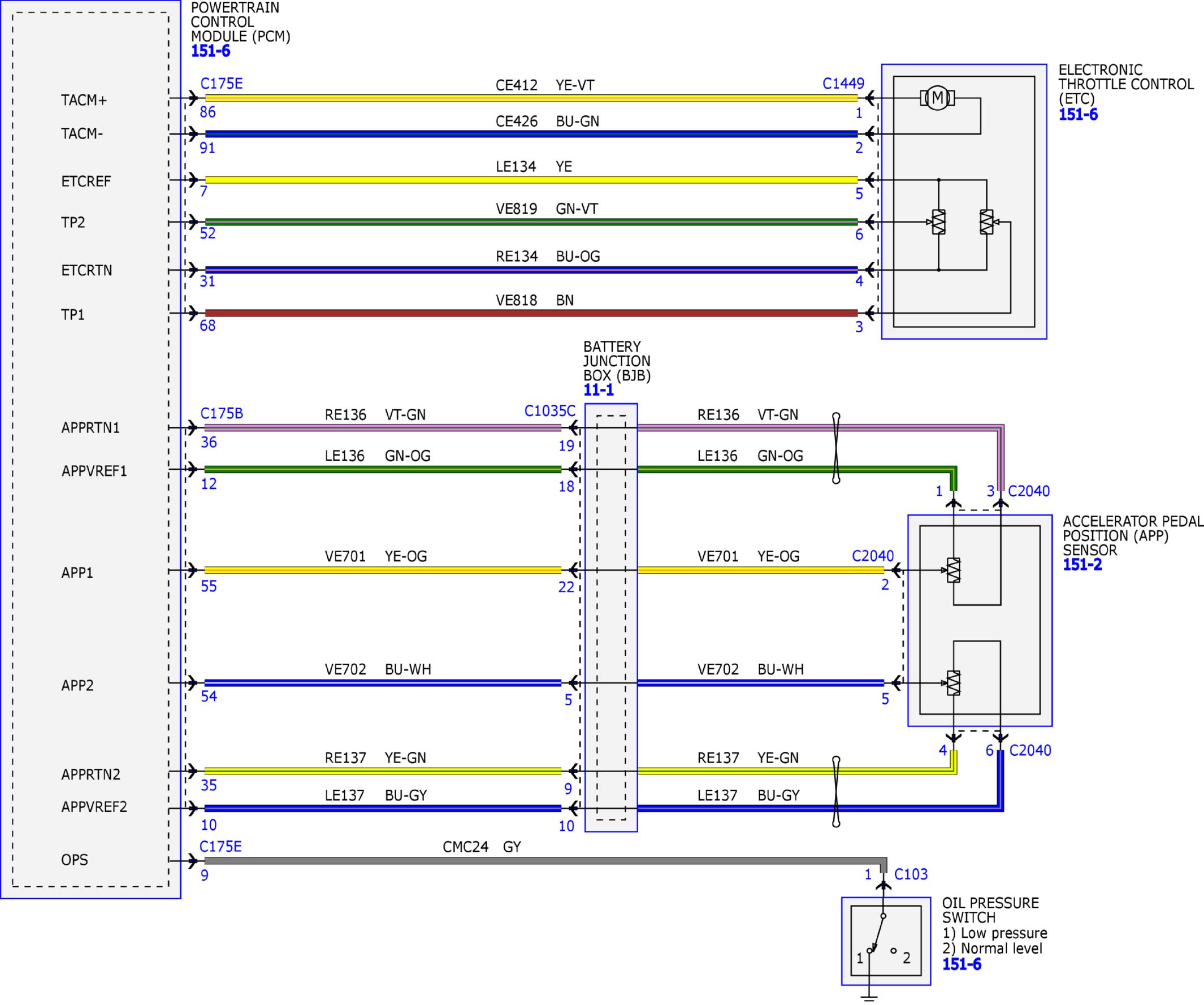

Fig 6: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (6 Of 13)

Courtesy of FORD MOTOR COMPANY

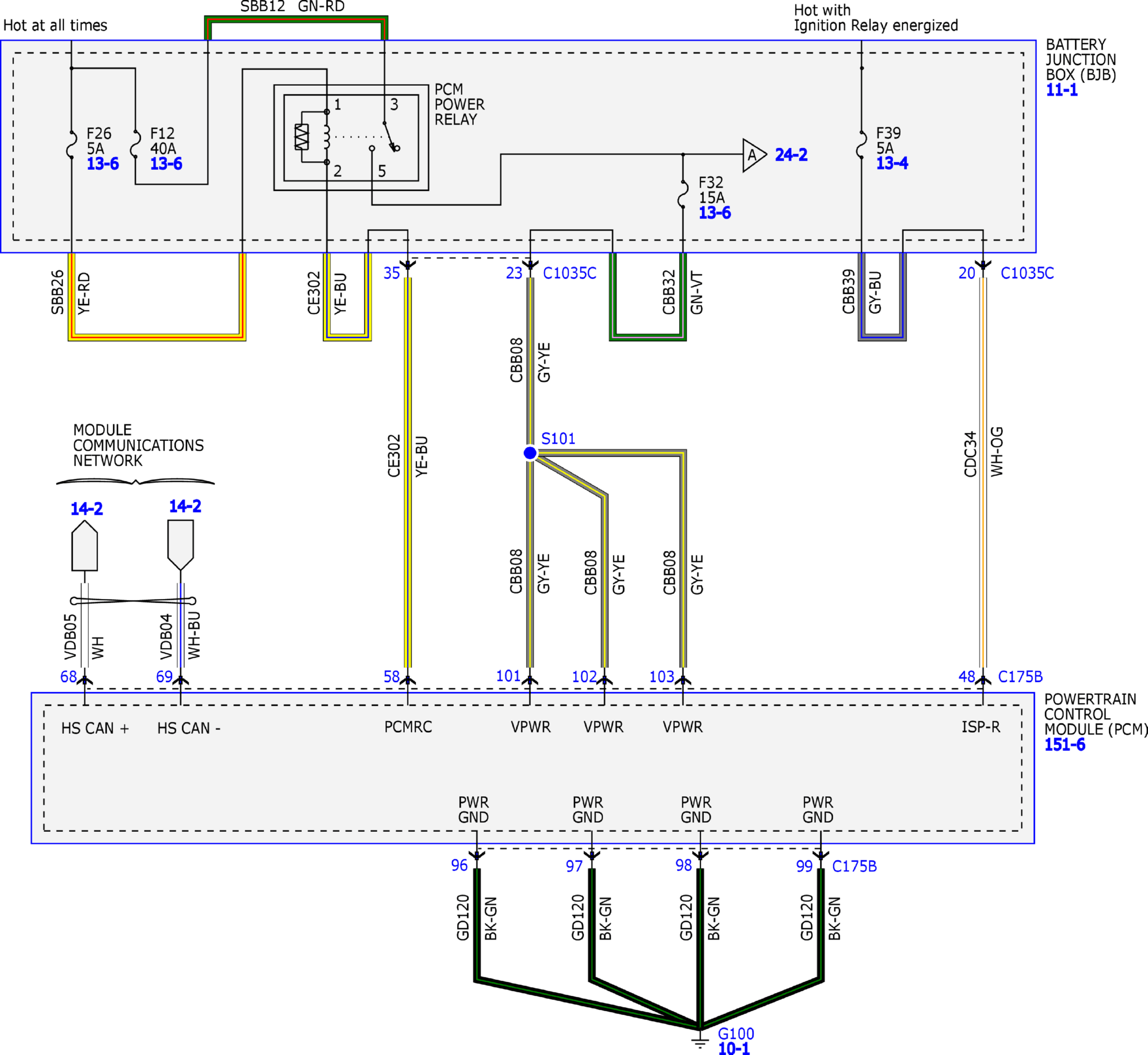

Fig 7: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (7 Of 13)

Courtesy of FORD MOTOR COMPANY

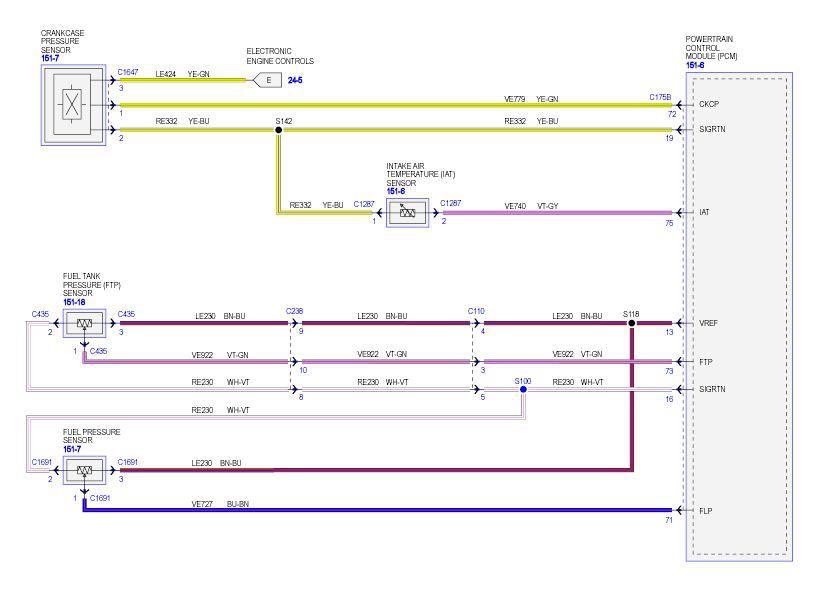

Fig 8: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagram -2.3L GTDI (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagram - 2.3L GTDI (13 Of 13)

Courtesy of FORD MOTOR COMPANY
