Electronic Engine Controls - 2.0L GTDI

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

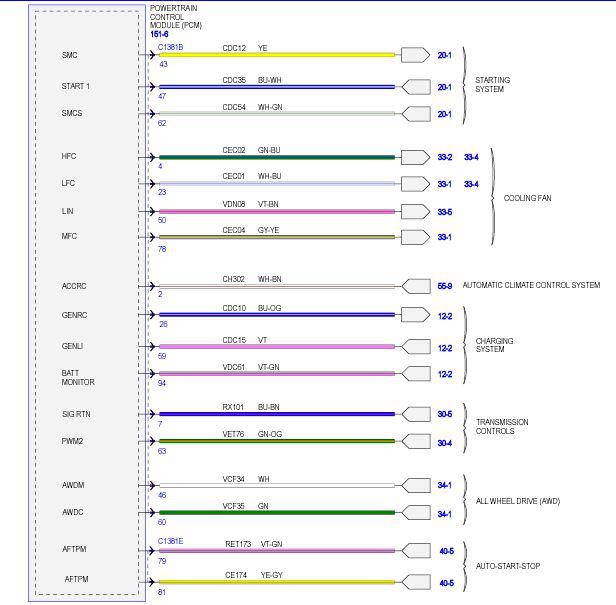

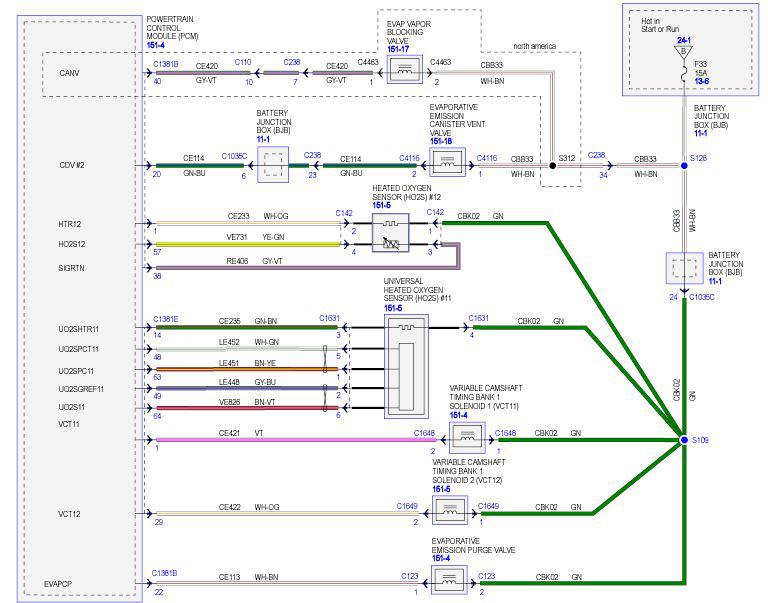

Fig 1: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (1 Of 14)

Courtesy of FORD MOTOR COMPANY

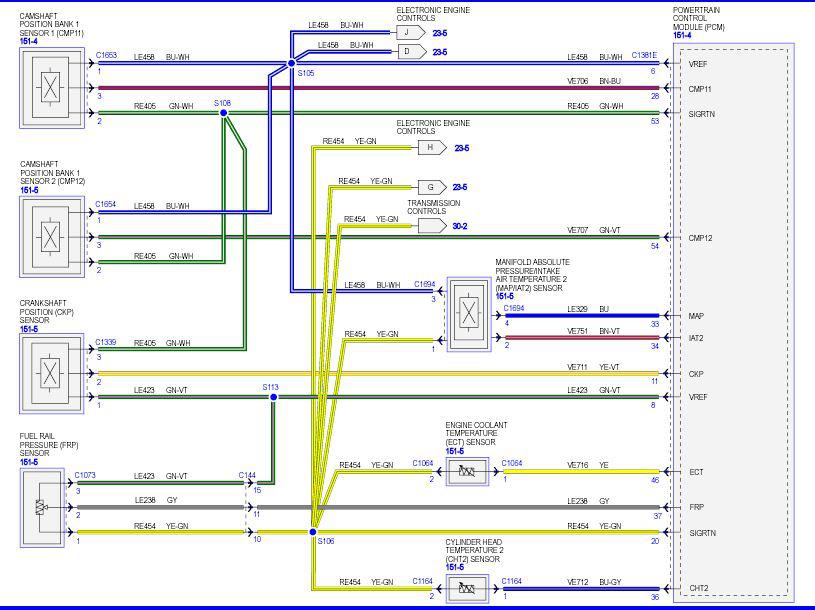

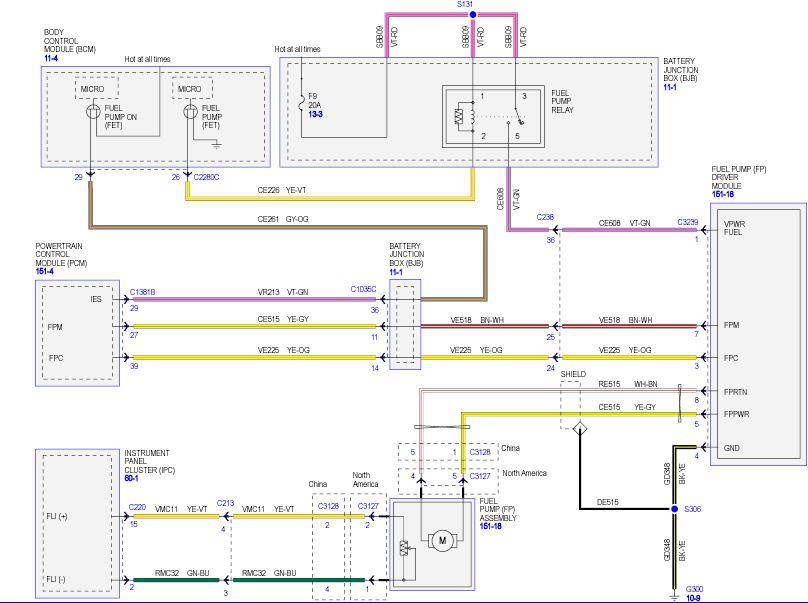

Fig 2: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (2 Of 14)

Courtesy of FORD MOTOR COMPANY

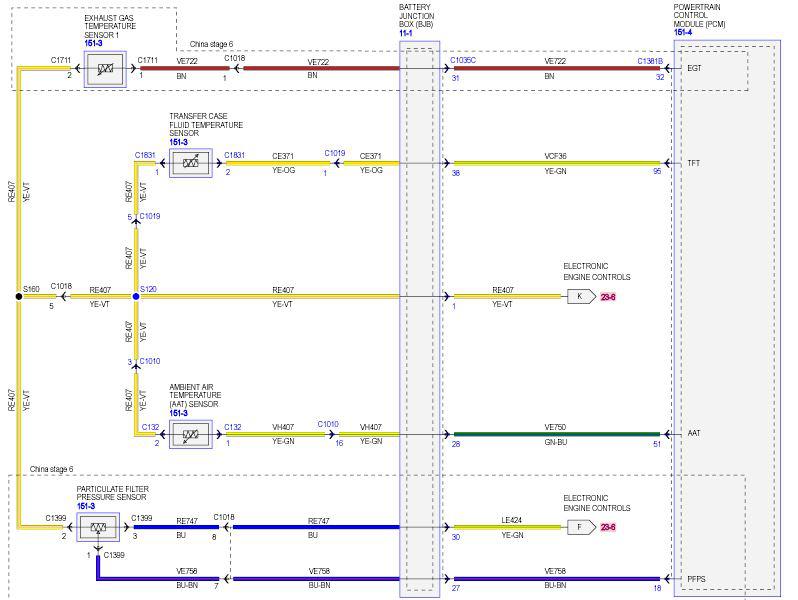

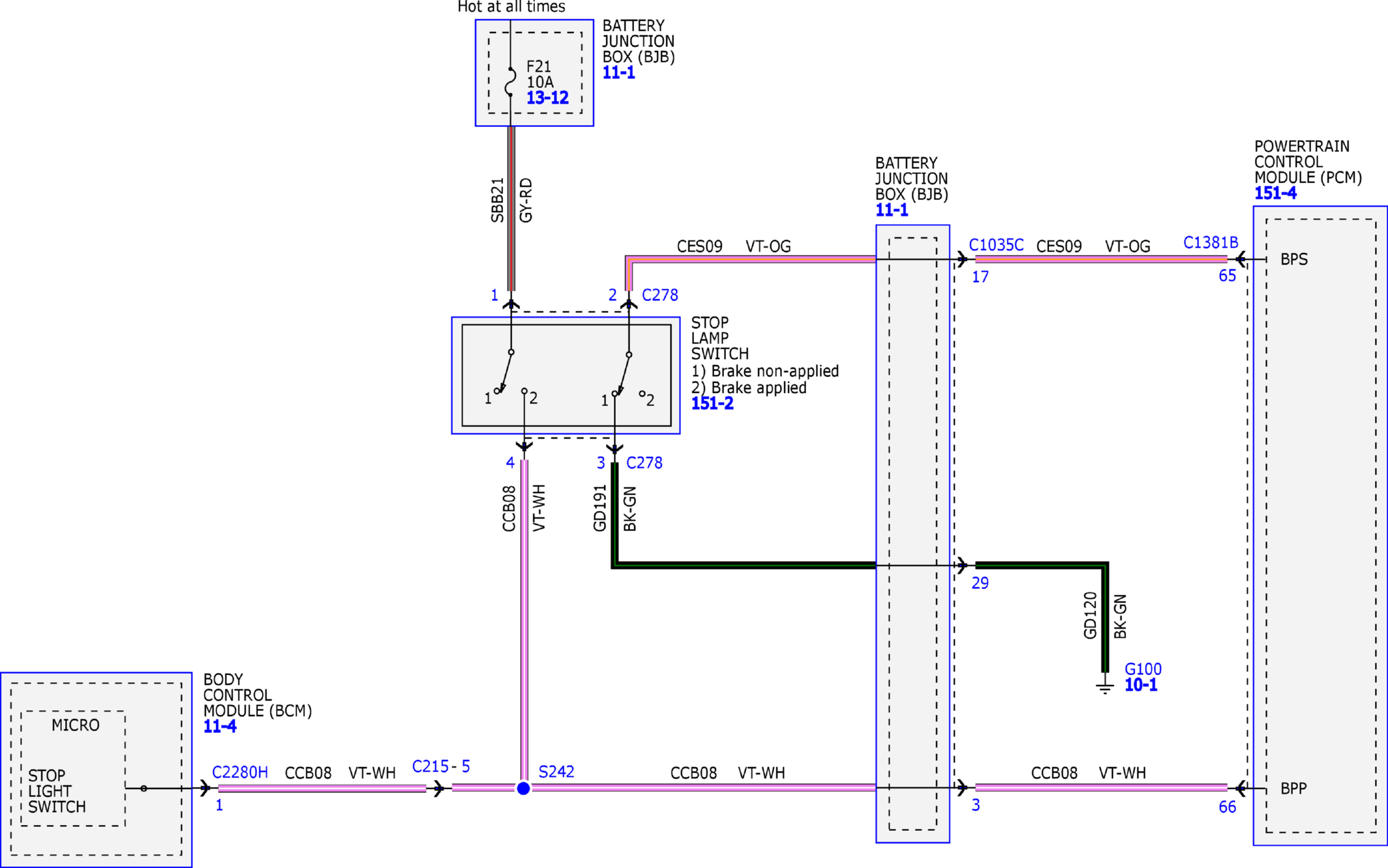

Fig 3: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (3 Of 14)

Courtesy of FORD MOTOR COMPANY

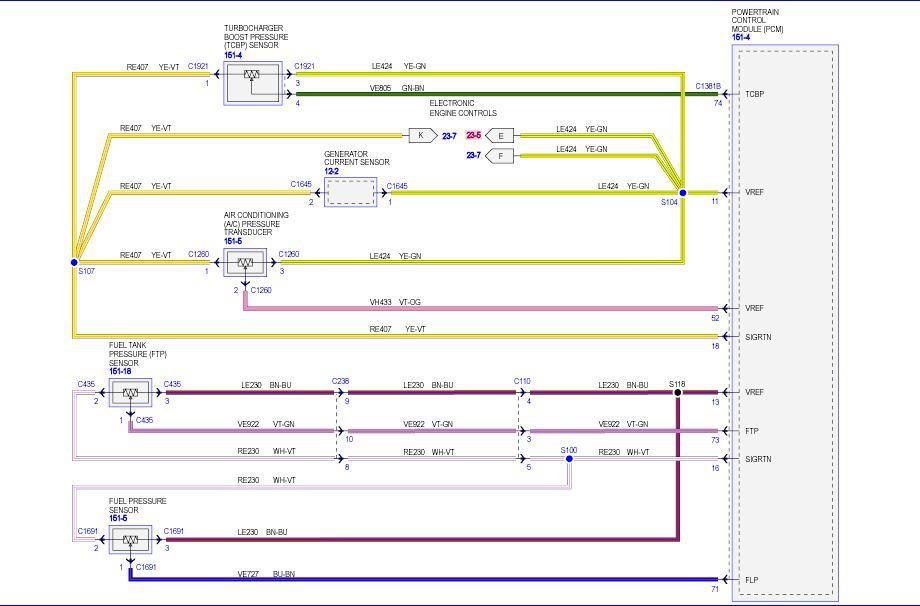

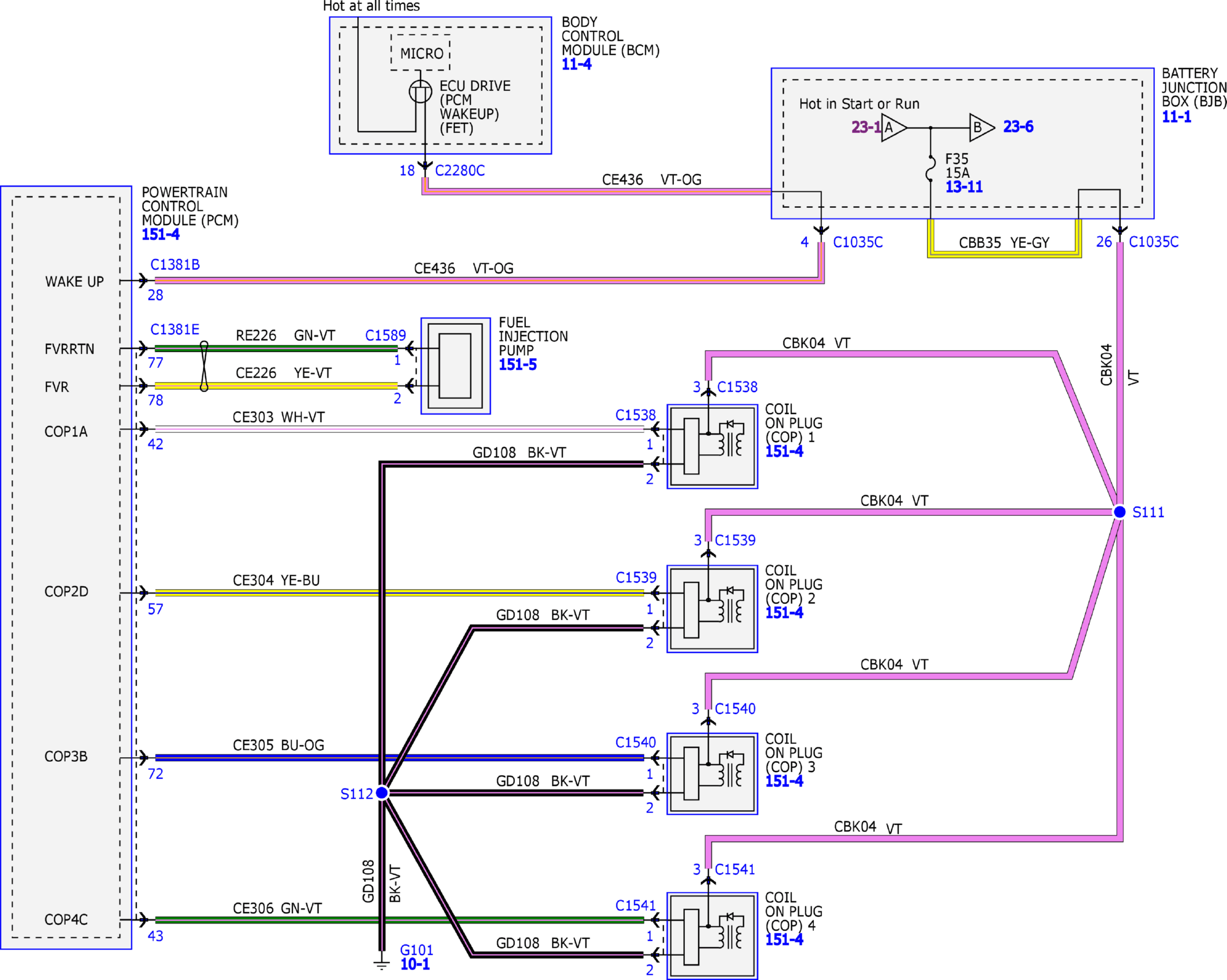

Fig 4: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (4 Of 14)

Courtesy of FORD MOTOR COMPANY

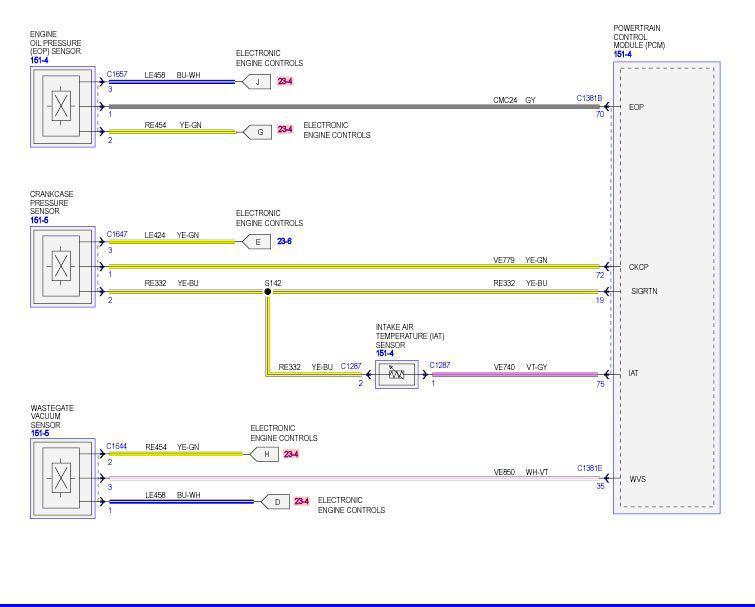

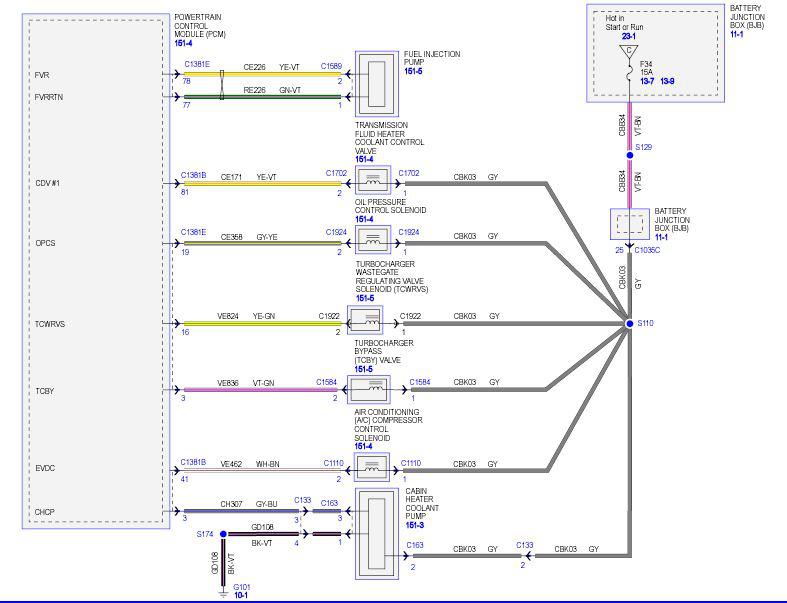

Fig 5: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (5 Of 14)

Courtesy of FORD MOTOR COMPANY

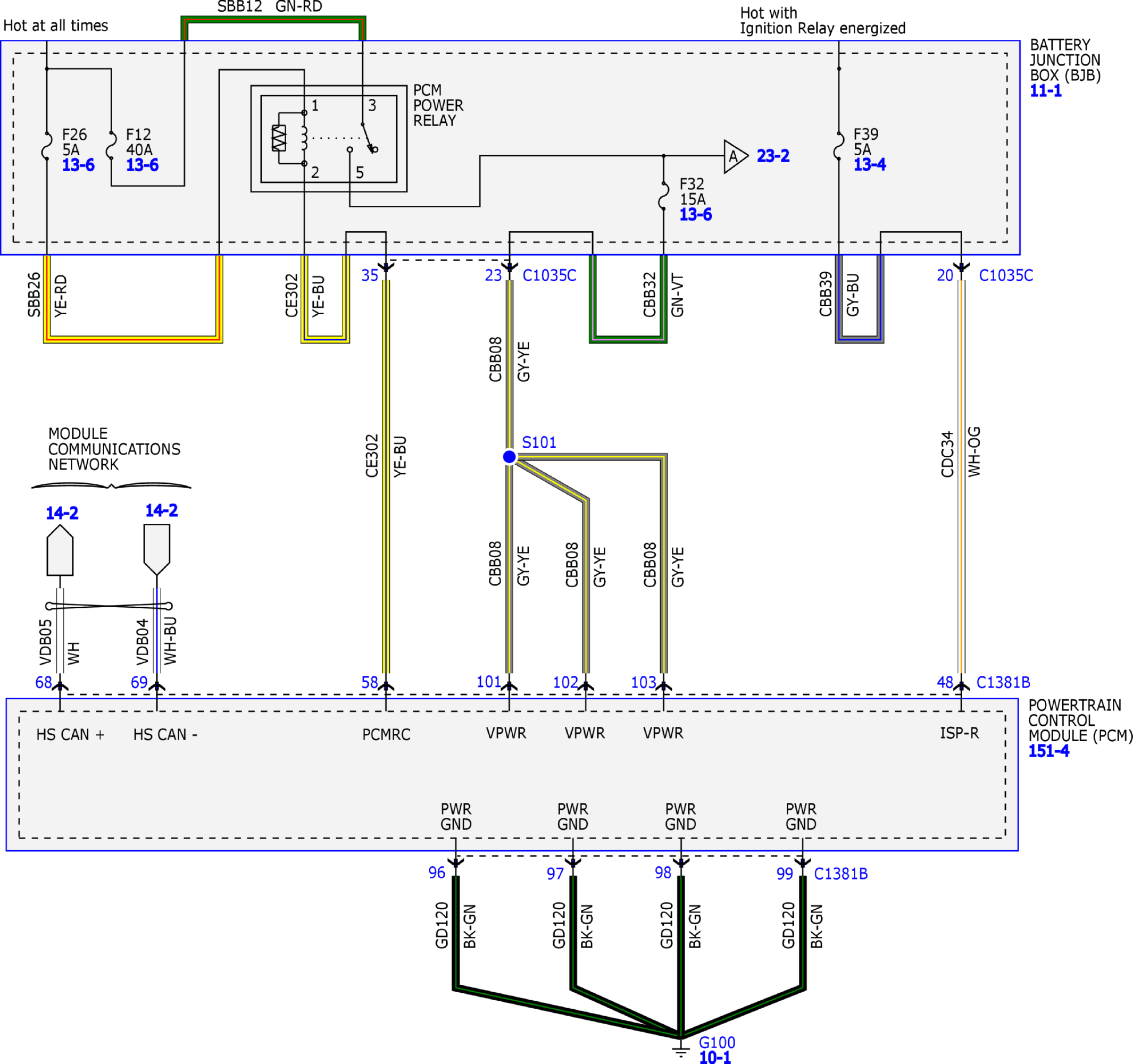

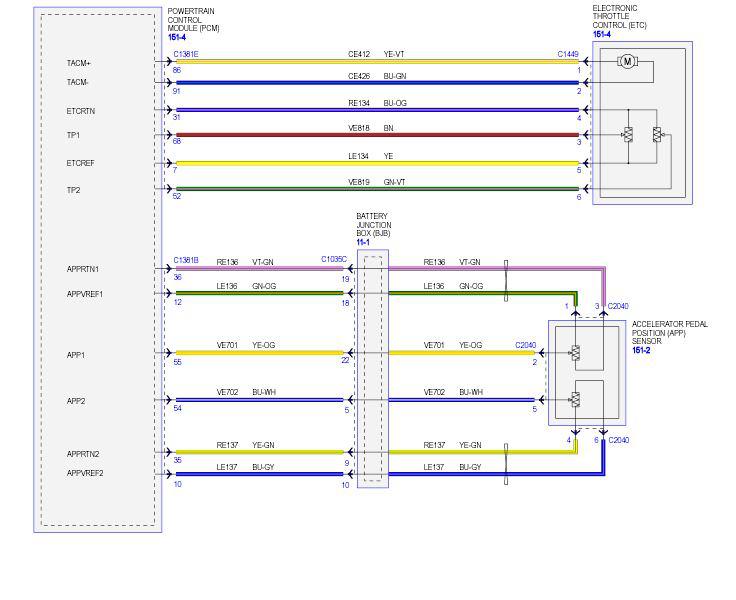

Fig 6: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (6 Of 14)

Courtesy of FORD MOTOR COMPANY

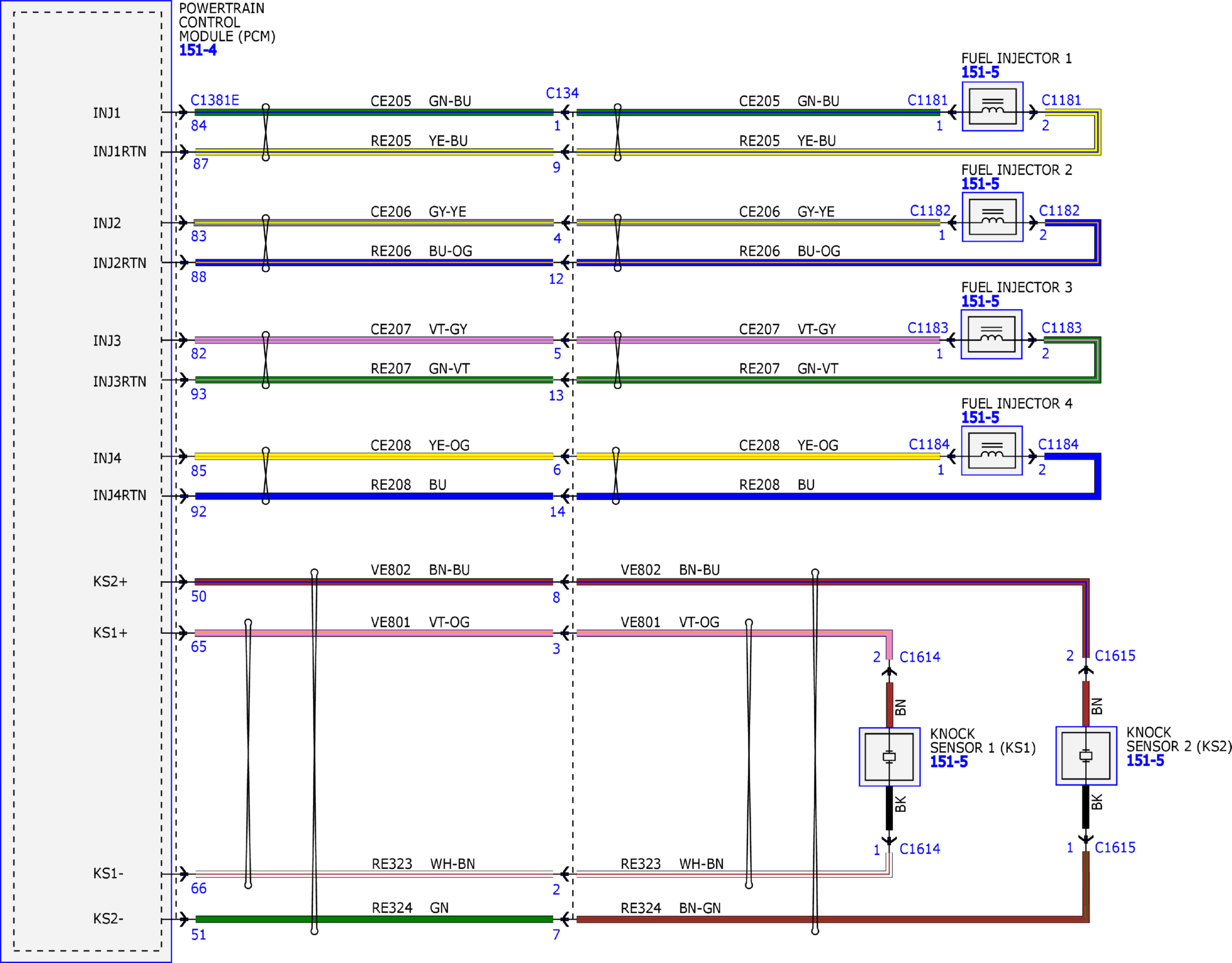

Fig 7: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (7 Of 14)

Courtesy of FORD MOTOR COMPANY

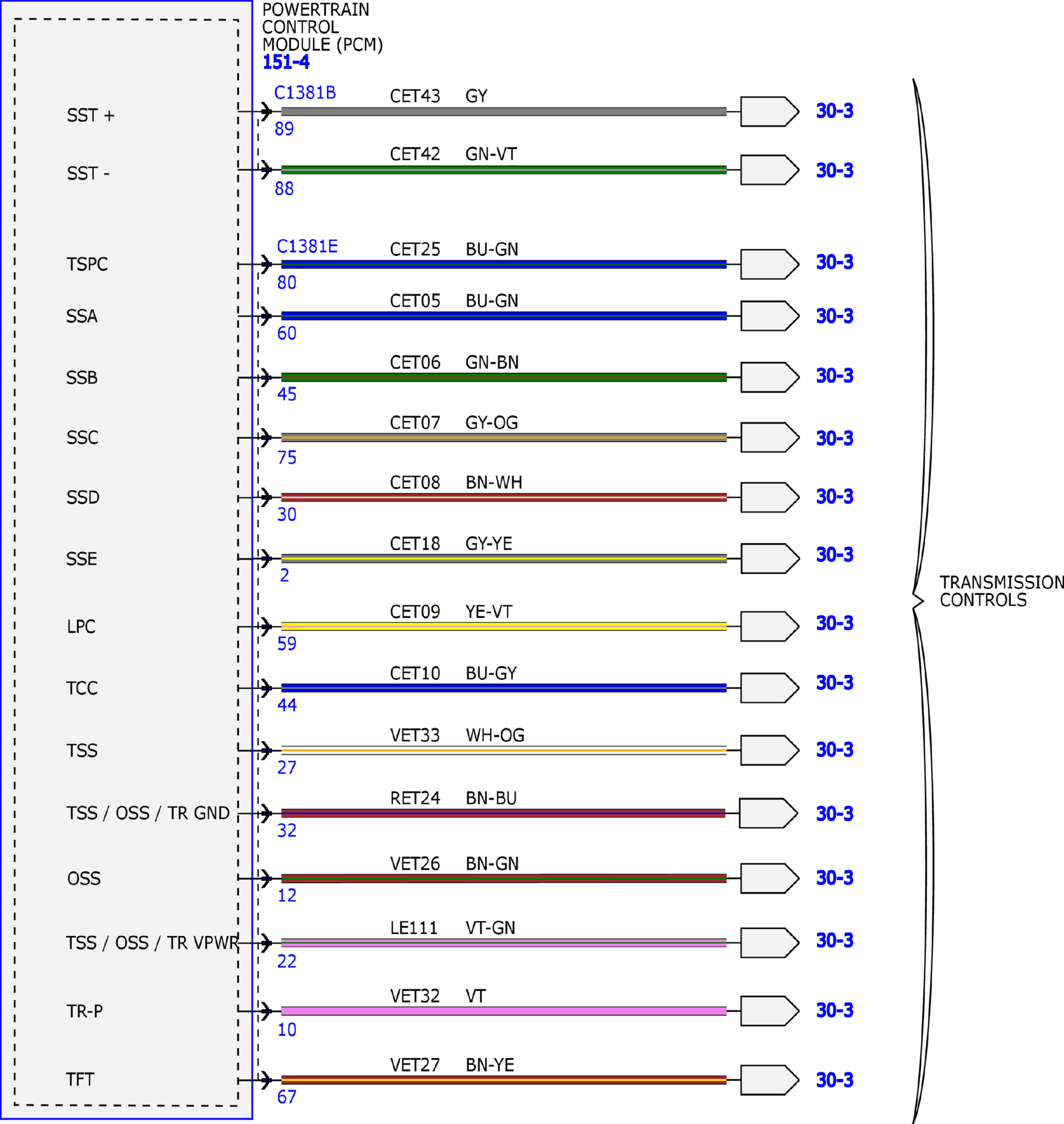

Fig 8: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (8 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (9 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (10 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (11 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (12 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (13 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls Wiring Diagram - 2.0L GTDI (14 Of 14)

Courtesy of FORD MOTOR COMPANY
