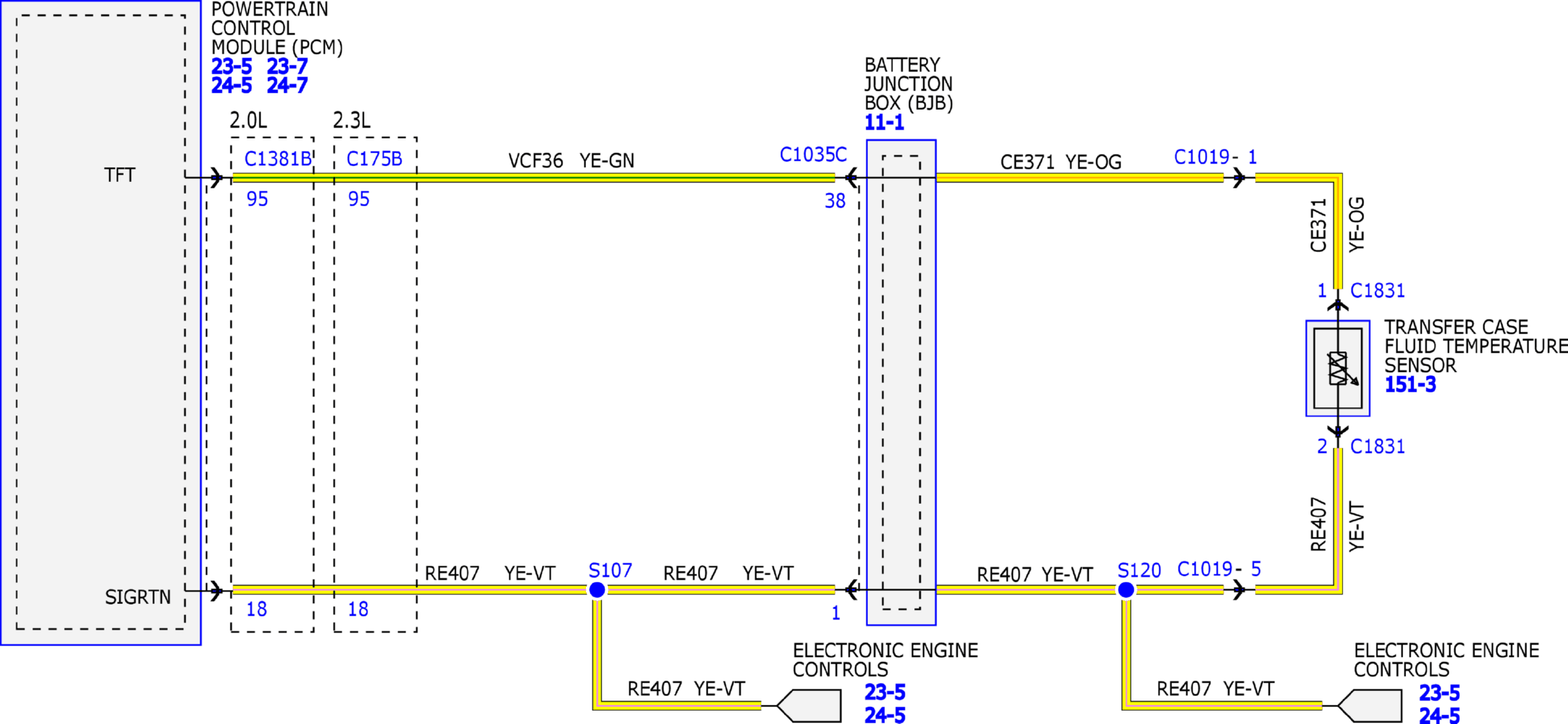

Fig 1: All Wheel Drive (AWD) Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

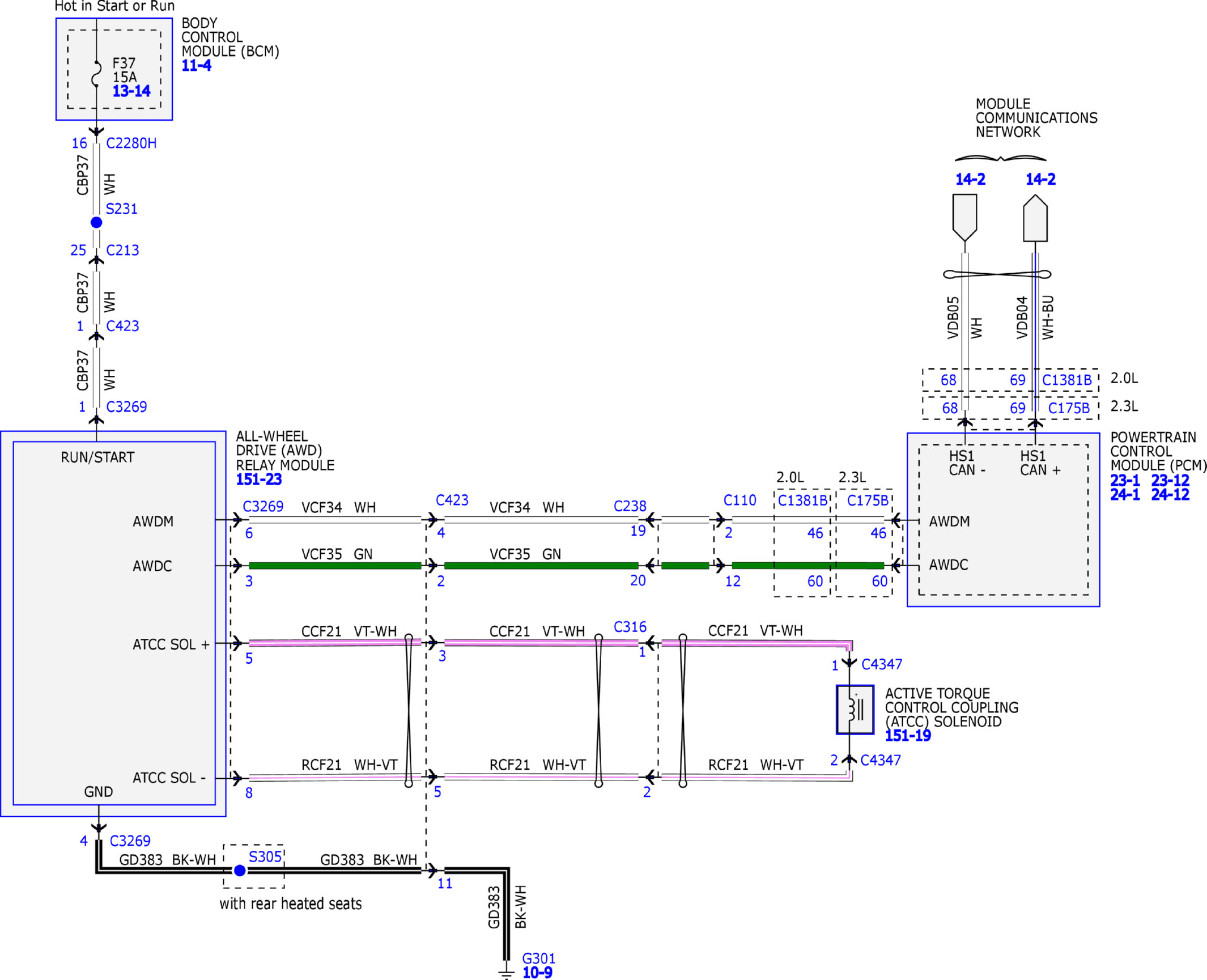

Fig 2: All Wheel Drive (AWD) Wiring Diagram (2 Of 2)
