Brake Shift Interlock Actuator Manual Override

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

NOTE: This vehicle is equipped with a brake shift interlock feature that prevents the vehicle from being moved out of P when the ignition is in the ON position until the brake pedal is applied.

Proceed with this procedure if the vehicle cannot be moved out of the P position when the ignition is in the ON position and the brake pedal is applied. Check for BSIA DTC. If BSIA DTC are present, Refer to: External Controls .
Apply the parking brake.

Courtesy of FORD MOTOR COMPANY

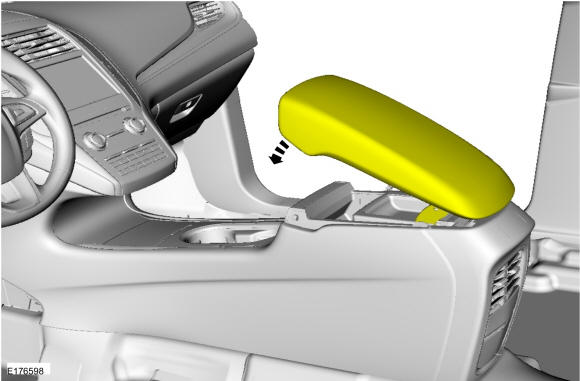

Open the console door.

Courtesy of FORD MOTOR COMPANY
NOTE: When the GSM flashes, the vehicle is in override mode.

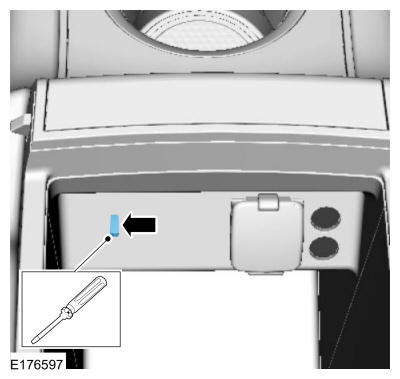

Using a small screwdriver, press and hold the brake shift interlock override switch.

Courtesy of FORD MOTOR COMPANY

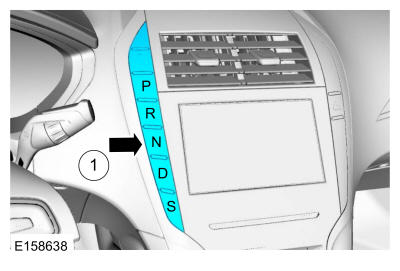

1. While holding the brake shift interlock override switch, press the N button on the GSM.
Courtesy of FORD MOTOR COMPANY
Close the console door.

Courtesy of FORD MOTOR COMPANY
Release the parking brake.

Courtesy of FORD MOTOR COMPANY
