Component Location

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

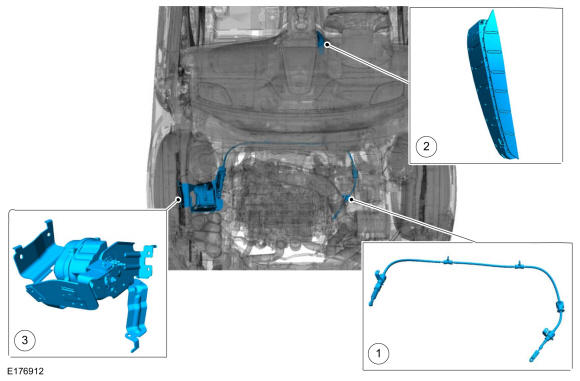

GFD229378Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 7E395 Selector lever cable
2 7D443 GSM (gearshift module)
3 7E096 TRCM (transmission range control module)
