Telematics Control Unit (TCU) Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Upload the TCU configuration information to the scan tool by following the scan tool on-screen instructions.

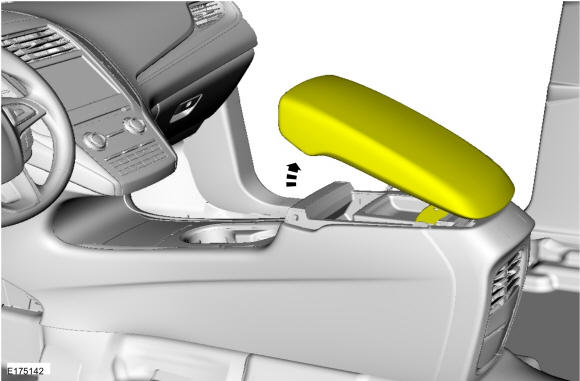

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY

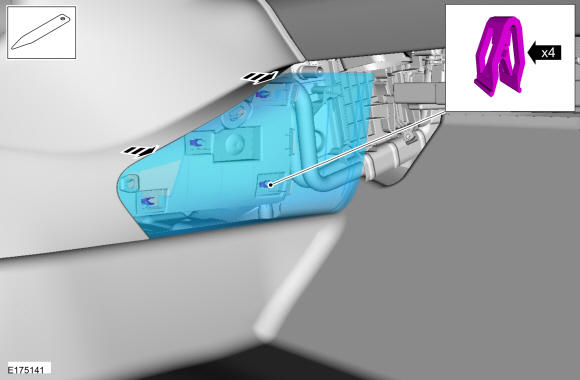

Remove the RH trim panel.

Courtesy of FORD MOTOR COMPANY

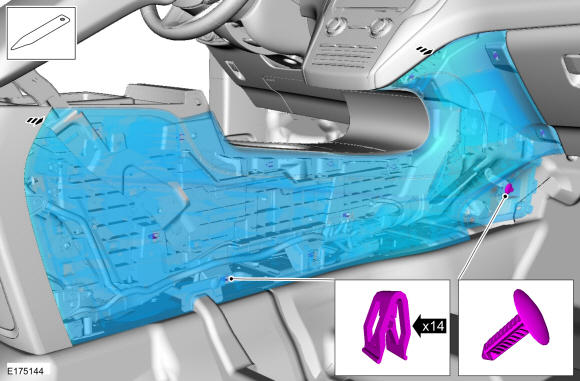

Remove the RH finish panel.

Courtesy of FORD MOTOR COMPANY

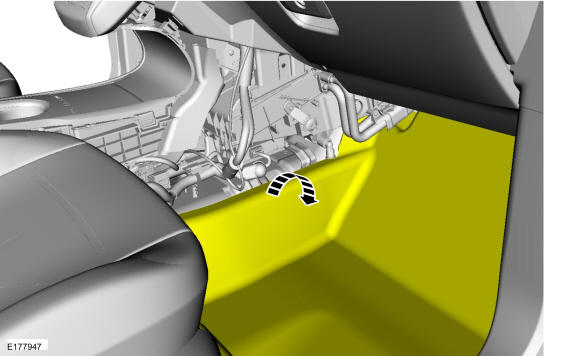

Position the carpet aside.

Courtesy of FORD MOTOR COMPANY

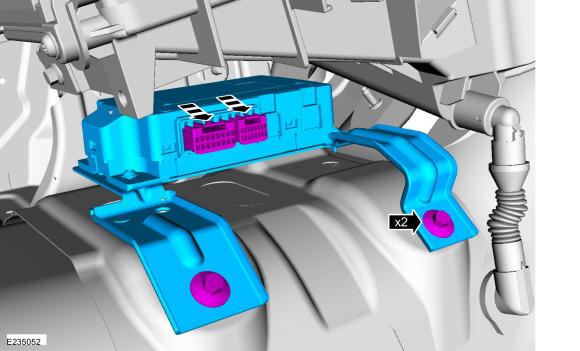

Remove the bolts, and the TCU.
- Disconnect the electrical connectors.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: This step is required only if the module is being replaced.

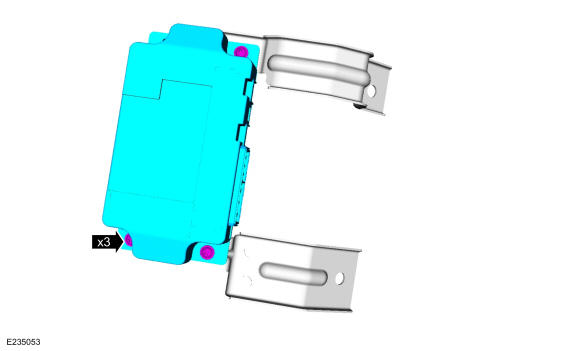

Remove the screws and remove the TCU from the mounting bracket.

Courtesy of FORD MOTOR COMPANY
