Front Display Interface Module (FDIM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FCIM. REFER to: Front Controls Interface Module (FCIM) .

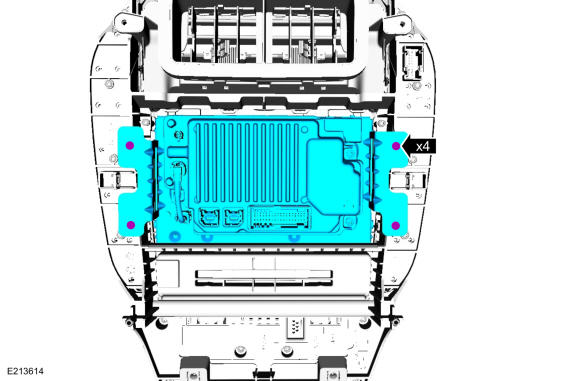

Remove the 4 retainers and the FDIM.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if replacing the FDIM.

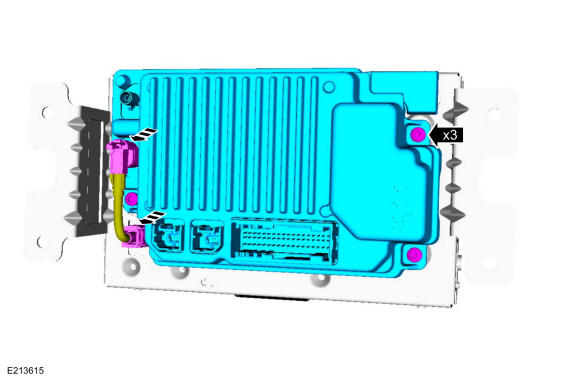

Remove the 3 screws and separate the APIM from the FDIM.
- Disconnect the electrical connectors.
  Torque: 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY
