D-Pillar Speaker: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the C-Pillar trim panel. REFER to: C-Pillar Trim Panel .

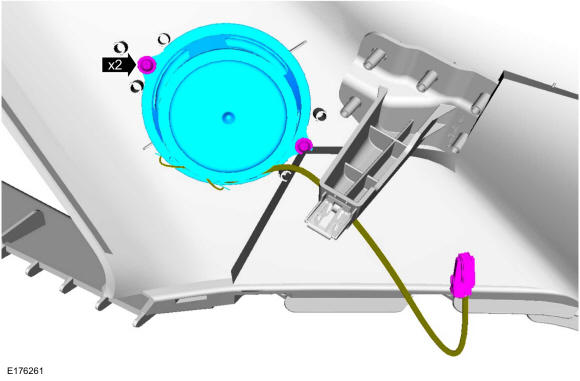

  2. Remove the 2 screws and the D-Pillar speaker.

    Torque: 17 lb.in (1.9 Nm)

GFD229865Courtesy of FORD MOTOR COMPANY
