Audio Digital Signal Processing (DSP) Module: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Upload the audio DSP module configuration information to the scan tool by following the scan tool on-screen instructions.

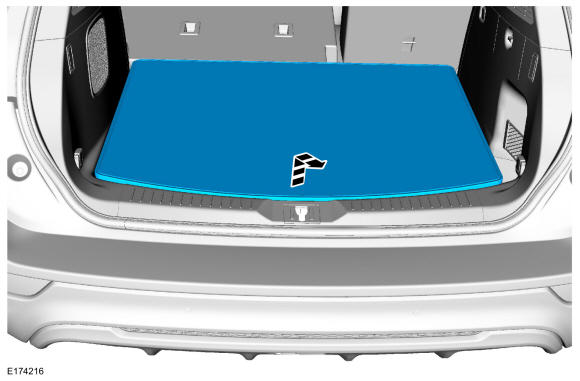

- Remove the loadspace sub-floor.
-

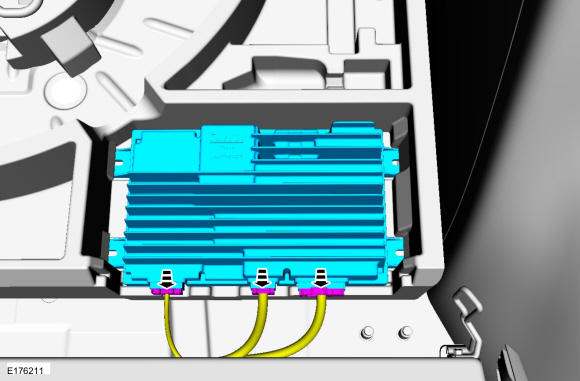

NOTE: The audio DSP is located in the LH forward portion of the luggage compartment insulator.
Disconnect the electrical connectors and remove the audio DSP module.
