Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

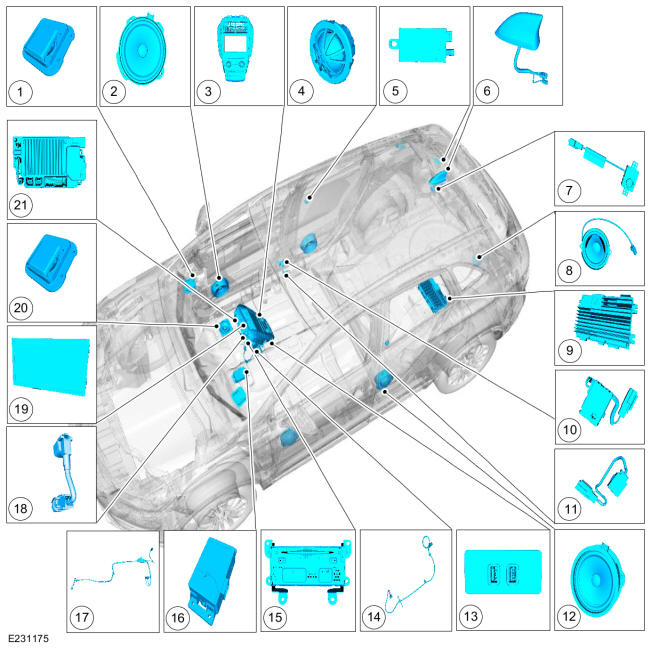

| Item | Description |
|---|---|
| 1 | RH instrument panel speaker assembly (mid-range speaker and tweeter speaker) (LH also shown) |
| 2 | RHF door midwoofer speaker (LHF also shown) |
| 3 | FCIM |
| 4 | RHR door tweeter speaker (LHR also shown) |
| 5 | FM2 diversity antenna amplifier for the FM2 on-glass antenna grid (2017 MY+) |
| 6 | AM/ FM/HD Radio ®/satellite radio/ GPS antenna |
| 7 | Center rear ANC microphone (located in headliner) |
| 8 | LHR D-pillar speaker (RHR also shown) |
| 9 | Audio DSP module |
| 10 | Front ANC microphone (located in overhead console) |
| 11 | SYNC ® microphone (located in the overhead console) |
| 12 | LHR door midwoofer speaker (RHR also shown) |
| 13 | USB hub |
| 14 | USB cable |
| 15 | ACM [contains DACMC] |
| 16 | TCU |
| 17 | Front AM/ FM/HD Radio ® antenna coaxial cable and satellite radio/ GPS splitter/cable assembly |
| 18 | LVDS cable |
| 19 | 8-inch (203 mm) FDIM |
| 20 | Center instrument panel speaker assembly (mid-range speaker and tweeter speaker) |
| 21 | APIM |
| - | Rear AM/ FM/HD Radio ® (if equipped) antenna coaxial cable and satellite radio/ GPS coaxial cable assembly (Not shown) |
| - | FM2 diversity antenna coaxial cable for the FM2 on-glass antenna grid (2017 MY+) (Not shown) |
