SYNC Module [APIM]: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) With: THX Audio System .

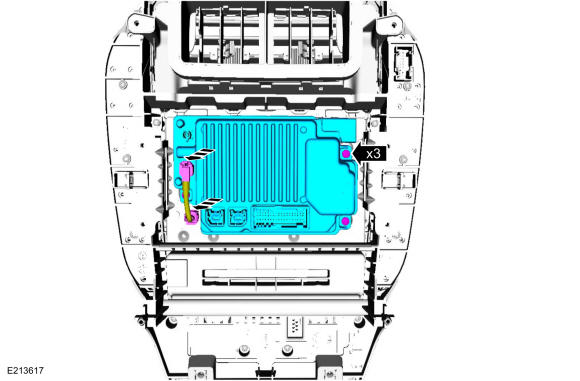

Remove the 3 retainers and the APIM.
- Disconnect the electrical connector.
  Torque: 9 lb.in (1 Nm)
