Instrument Panel Center Speaker: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

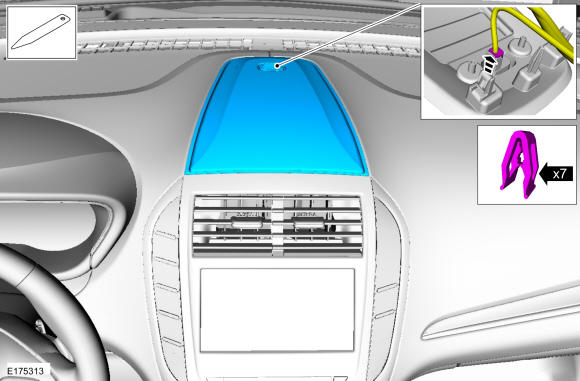

- Remove the instrument panel center speaker grille.
- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

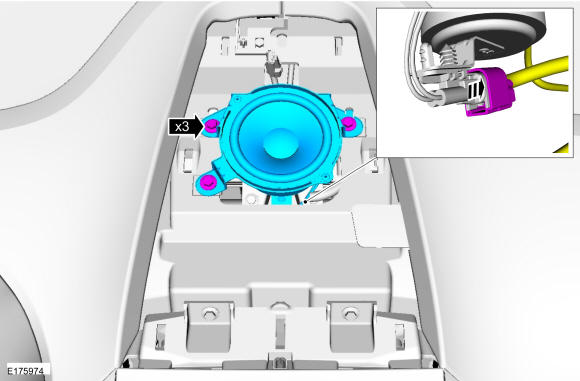

- Remove the 3 retainers and the center instrument panel speaker.
- Disconnect the electrical connector.
Torque: 18 lb.in (2 Nm)
 Courtesy of FORD MOTOR COMPANY
|
