Audio Unit Antenna: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Audio unit antenna

Remove both C-Pillar trim panels. Refer to: C-Pillar Trim Panel .
NOTE: RH front shown, all others similar.

Remove the rear grab handles.

Courtesy of FORD MOTOR COMPANY
Release the rear 2-way locators at the rear of the headliner and lower the rear of the headliner.

Courtesy of FORD MOTOR COMPANY

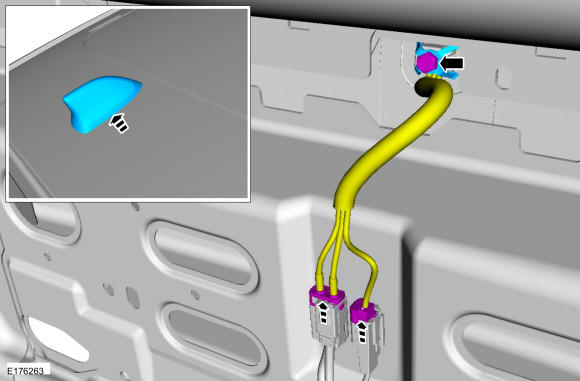

Remove the retainer and audio unit antenna and harness through the roof opening.
- Disconnect the electrical connectors.
  Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

FM2 Diversity antenna
Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

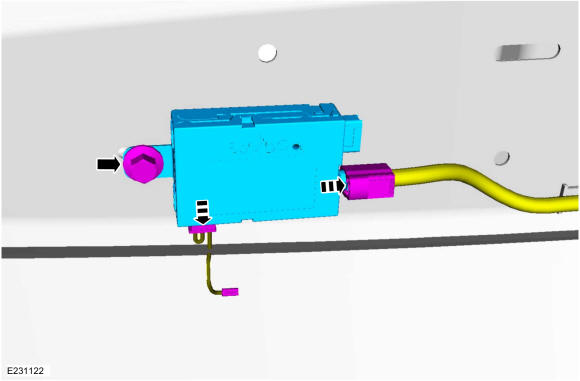

Remove the bolt and the FM2 diversity antenna.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
