Audio Unit Antenna: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Audio unit antenna

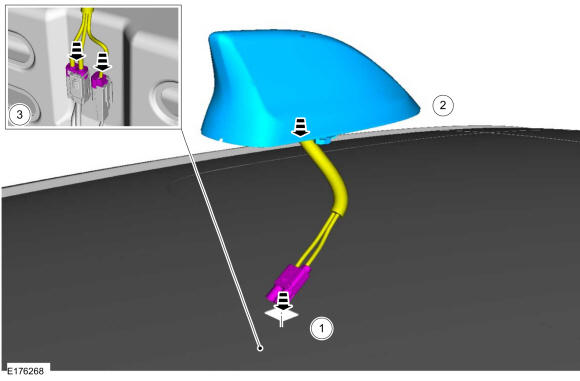

  1. NOTE: New part installation only.

    1. Install harness through the roof opening.
    2. Install base until seated.
    3. Reconnect electrical connectors.

    GFD229824Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.

    FM2 Diversity antenna

  3. To install, reverse the removal procedure.
