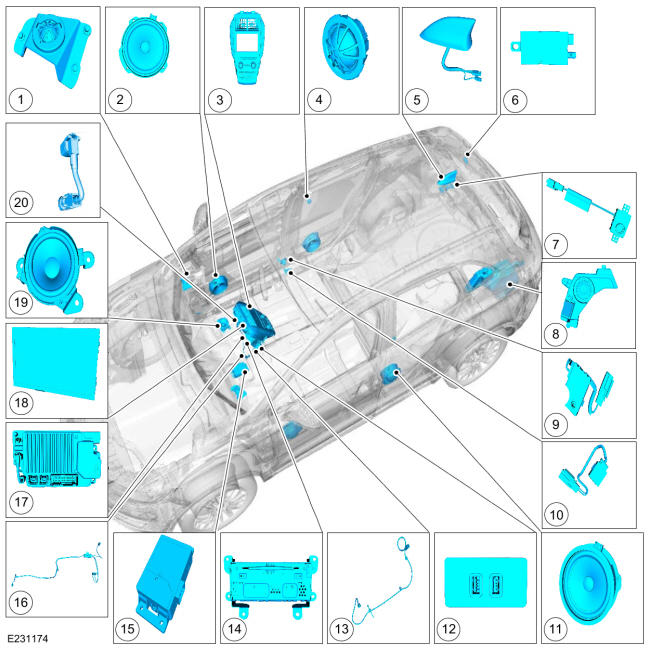

Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | RH instrument panel tweeter speaker (LH also shown) |
| 2 | RHF door midwoofer speaker (LHF also shown) |
| 3 | FCIM |
| 4 | RHR door tweeter speaker (LHR also shown) |
| 5 | AM/ FM/HD Radio ® (if equipped)/satellite radio/ GPS antenna |
| 6 | FM2 diversity antenna amplifier for the FM2 on-glass antenna grid (2017 MY+) |
| 7 | Center rear ANC microphone (located in headliner) |
| 8 | Subwoofer amplifier, speaker, and enclosure assembly |
| 9 | Front ANC microphone (located in overhead console) |
| 10 | SYNC ® microphone (located in the overhead console) |
| 11 | LHR door midwoofer speaker (RHR also shown) |
| 12 | USB hub |
| 13 | USB cable |
| 14 | ACM [contains DACMC] |
| 15 | TCU (if equipped) |
| 16 | Front AM/ FM/HD Radio ® (if equipped) antenna coaxial cable and satellite radio/ GPS splitter/cable assembly |
| 17 | APIM |
| 18 | 8-inch (203 mm) FDIM |
| 19 | Center instrument panel speaker |
| 20 | LVDS cable |
| - | Rear AM/ FM/HD Radio ® (if equipped) antenna coaxial cable and satellite radio/ GPS coaxial cable assembly (Not shown) |
| - | FM2 diversity antenna coaxial cable for the FM2 on-glass antenna grid (2017 MY+) (Not shown) |
