Remote Keyless Entry (RKE) Exterior Sounder: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH wheel and tire. REFER to: Wheel and Tire .

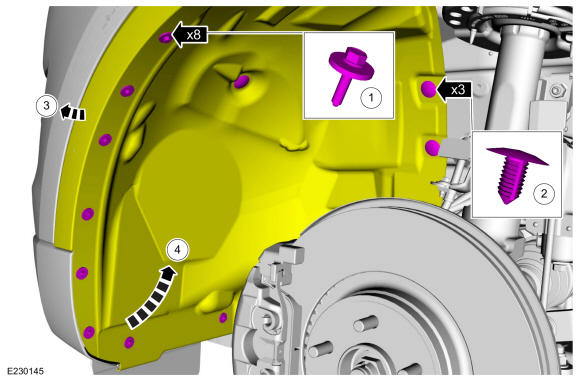

  2. Position aside the LH front fender splash shield.

    1. Remove the bolts.

      Torque: 18 lb.in (2 Nm)

    2. Remove the retainers.
    3. Position aside the LH front fender moulding.
    4. Position aside the LH front fender splash shield.

    GFD230491Courtesy of FORD MOTOR COMPANY

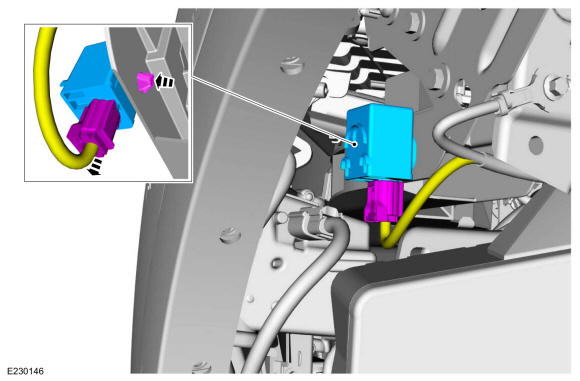

  3. Disconnect the electrical connector and remove the RKE exterior sounder.
GFD230492Courtesy of FORD MOTOR COMPANY
