Liftgate Latch: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Liftgate Trim Panel
  2. Torque: 80 lb.in (9 Nm)

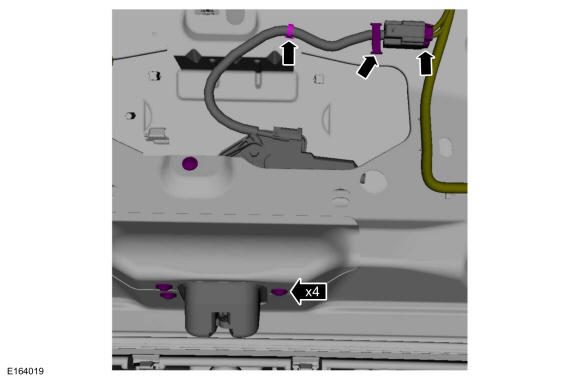

    GFD230483Courtesy of FORD MOTOR COMPANY

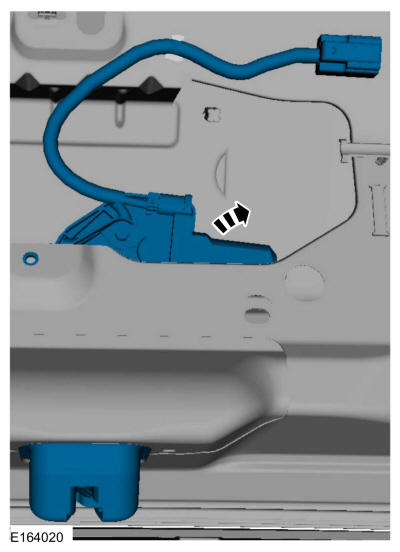

  3. GFD230484Courtesy of FORD MOTOR COMPANY
