Interior Rear Door Handle: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the rear door trim panel. REFER to: Rear Door Trim Panel

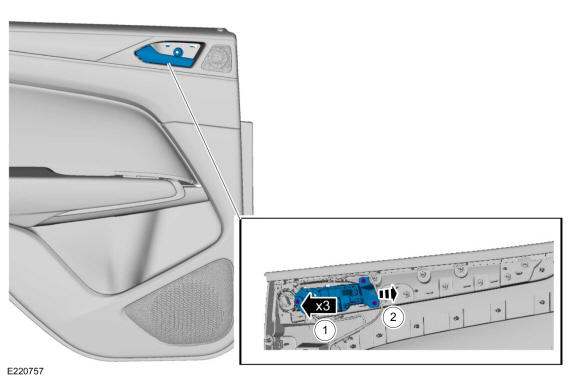

  2. Remove the interior rear door handle.

    1. Remove the retainers from the interior rear door handle.
    2. Remove the interior rear door handle.

GFD230481Courtesy of FORD MOTOR COMPANY
