Interior Front Door Handle: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the front door trim panel. REFER to: Front Door Trim Panel
  2. Remove the interior front door handle.

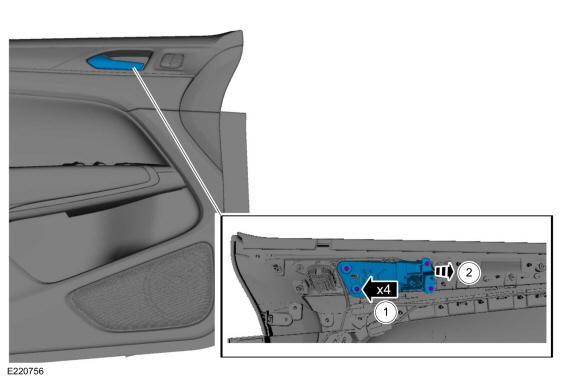

    1. Remove the retainers from the interior front door handle.
    2. Remove the interior front door handle.

GFD230480Courtesy of FORD MOTOR COMPANY
