Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. REFER to: Battery Tray .

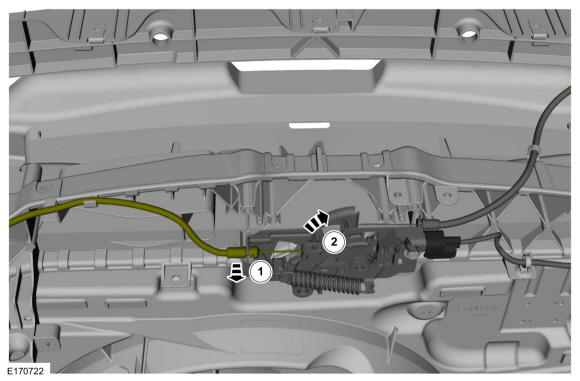

  2. Disconnect the hood latch release cable from the hood latch.
    GFD230467Courtesy of FORD MOTOR COMPANY

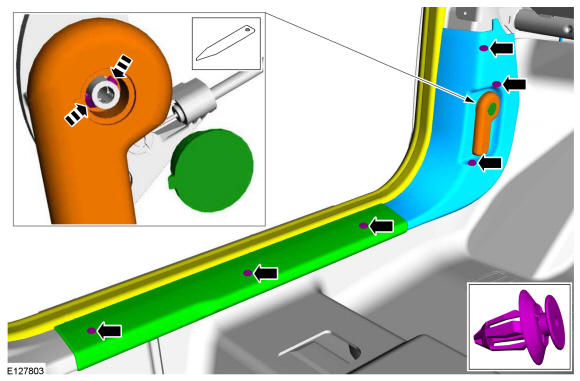

  3. NOTE: Insert a 10mm 1/4 inch drive socket to release the clips.

    Remove the scuff plate, the hood latch release handle, and the kick panel, and position aside the weatherstrip.

    GFD230468Courtesy of FORD MOTOR COMPANY

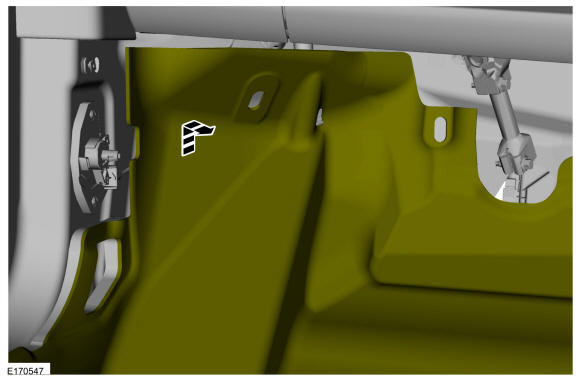

  4. Position aside the carpet.
    GFD230469Courtesy of FORD MOTOR COMPANY

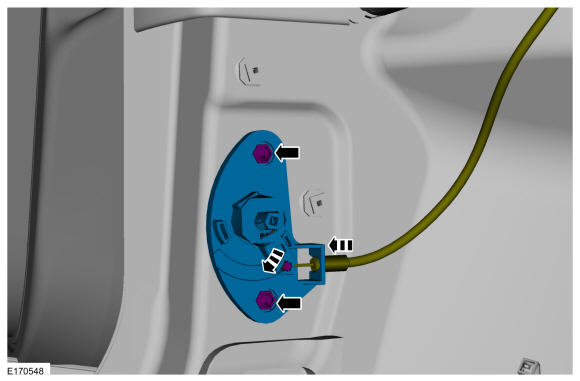

  5. Remove the bolts, hood latch release and detach the hood latch release cable.
    GFD230470Courtesy of FORD MOTOR COMPANY

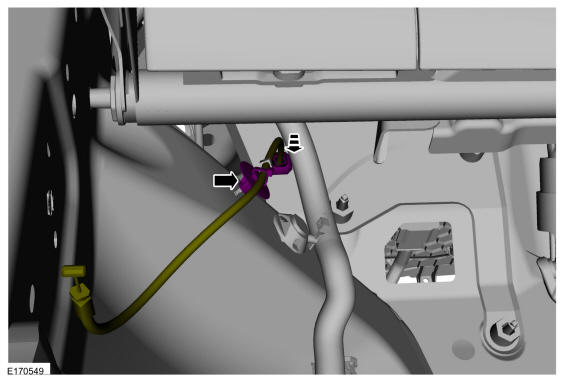

  6. Release the routing clip and route the hood latch release cable through the cowl.
    GFD230471Courtesy of FORD MOTOR COMPANY

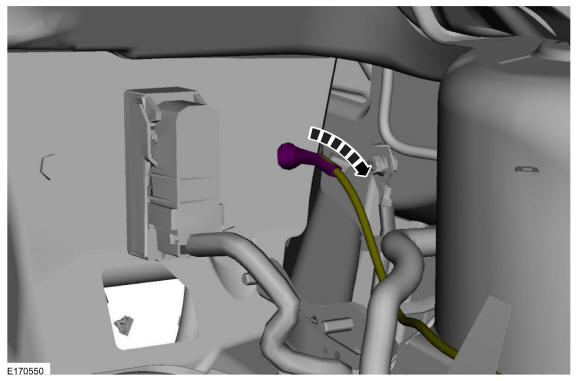

  7. Route the hood latch release cable through the engine compartment.
    GFD230472Courtesy of FORD MOTOR COMPANY

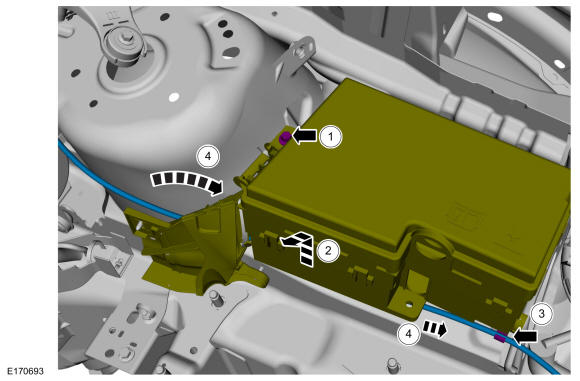

  8. Position aside the BJB and remove the hood latch release cable from underneath the BJB.

    1. Remove the bolt from the BJB.
    2. Position aside the BJB.
    3. Release the cable routing clip.
    4. Remove the cable from under the BJB.

    GFD230473Courtesy of FORD MOTOR COMPANY

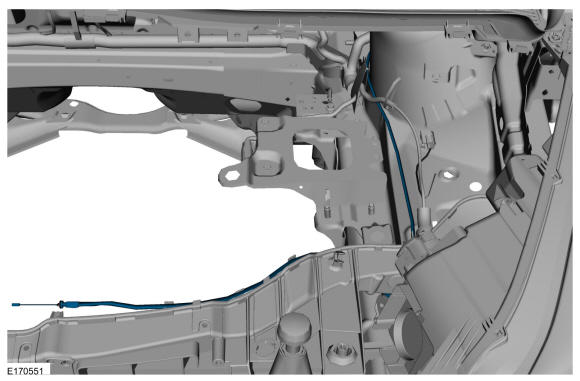

  9. Remove the hood latch release cable.
GFD230474Courtesy of FORD MOTOR COMPANY
