Hood Latch Release Cable: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

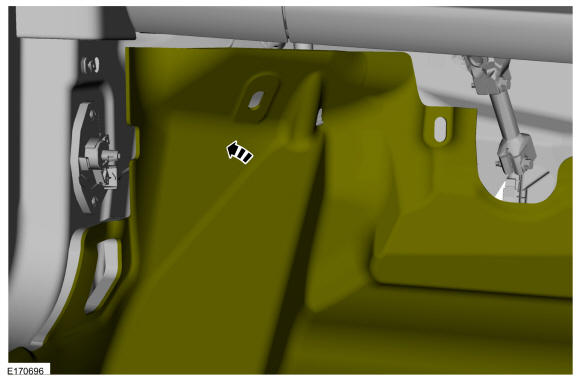

Route the hood latch release cable through the cowl and attach the routing clip.

Courtesy of FORD MOTOR COMPANY
Route the hood latch release cable through the engine compartment.

Courtesy of FORD MOTOR COMPANY

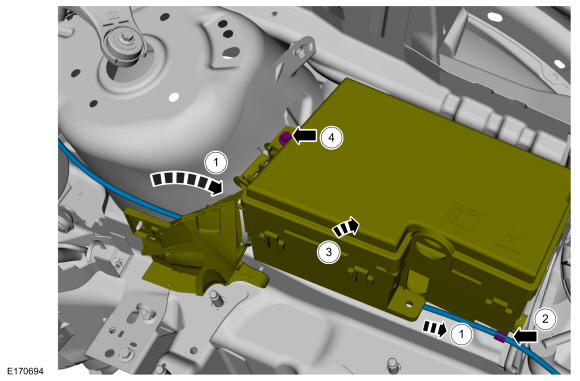

Install the hood latch release cable underneath the BJB and position back the BJB.
1. Install the cable under the BJB.
2. Install the cable routing clip.
3. Position back the BJB.
4. Install the bolt to the BJB.
Courtesy of FORD MOTOR COMPANY
Install the hood latch release cable.

Courtesy of FORD MOTOR COMPANY
NOTE: Attaching the cable to the release mechanism is only necessary if installing the original hood release cable assembly.

Attach the hood latch release cable. Install the bolts and hood latch release.

Courtesy of FORD MOTOR COMPANY
Position back the carpet.

Courtesy of FORD MOTOR COMPANY
Position back the weatherstrip. Install the kick panel, scuff plate, and hood latch release handle.

Courtesy of FORD MOTOR COMPANY

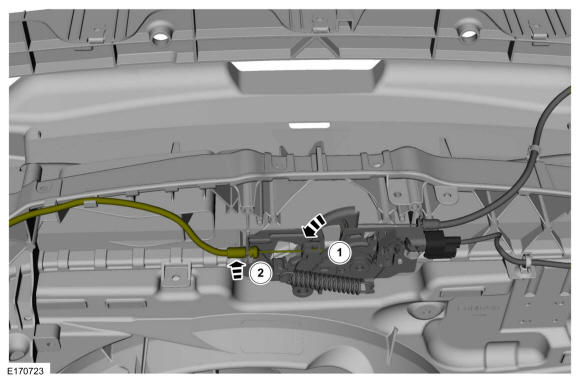

Attach the hood latch release cable to the hood latch.

Courtesy of FORD MOTOR COMPANY
Install the battery tray. REFER to: Battery Tray .
