Exterior Front Door Handle: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

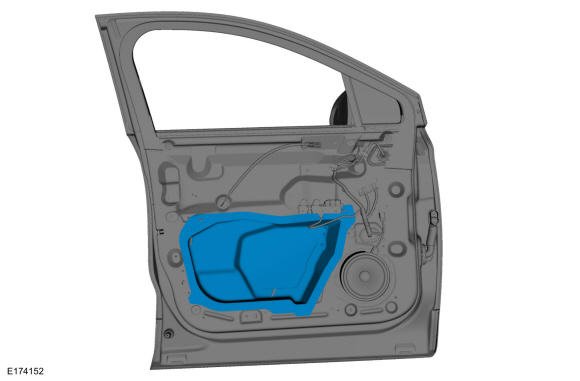

  1. Remove the front door trim panel. REFER to: Front Door Trim Panel
    GFD230446Courtesy of FORD MOTOR COMPANY

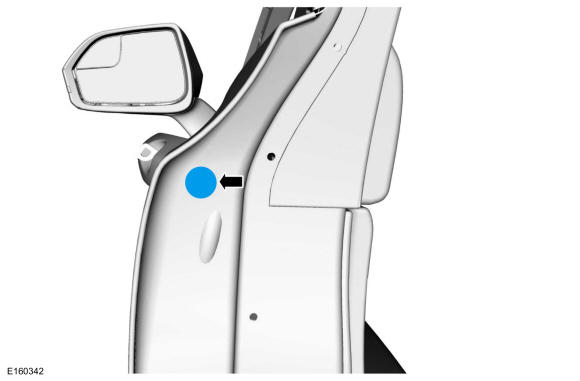

    GFD230447Courtesy of FORD MOTOR COMPANY

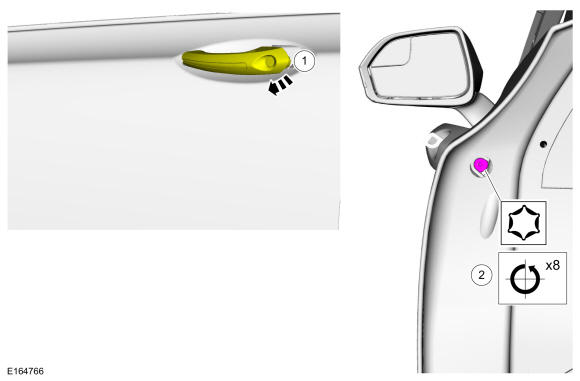

    1. Hold the front door handle open.
    2. Turn the release screw 8 turns. The handle releases after approximately 6 to 6.5 turns. You must continue to the full 8 revolutions for installation purposes.
    GFD230448Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not pull the door handle out of the door too far without disconnecting the handle from the connector. Damage to the harness will occur.

    Disconnect the exterior front door handle connector from inside the door and remove the exterior front door handle.

GFD230449Courtesy of FORD MOTOR COMPANY
