Liftgate Latch Manual Release
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Flat-Bladed Screwdriver |
|---|
Activation
-
NOTE: RH side shown, LH side similar.

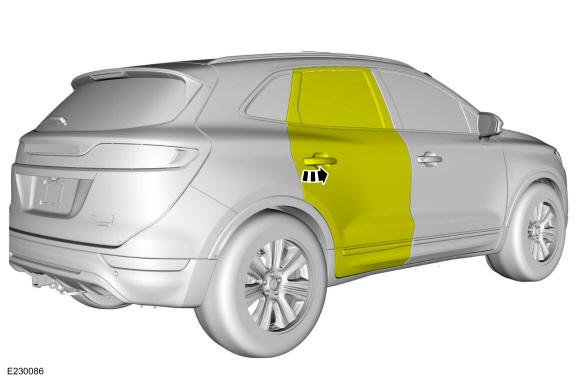

On both sides. Open both rear doors.
-
NOTE: RH side shown, LH side similar.

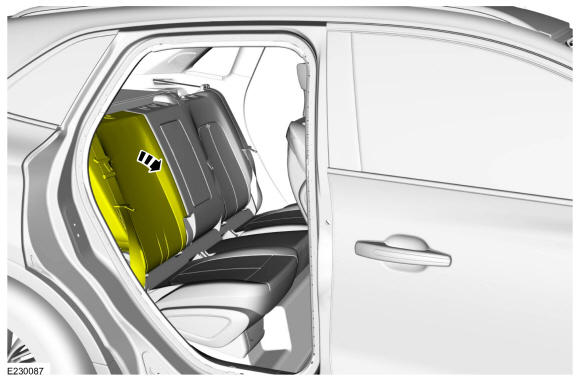

On both sides. Release the second row seat cushion latch and position the seat backrest in the full flat position.

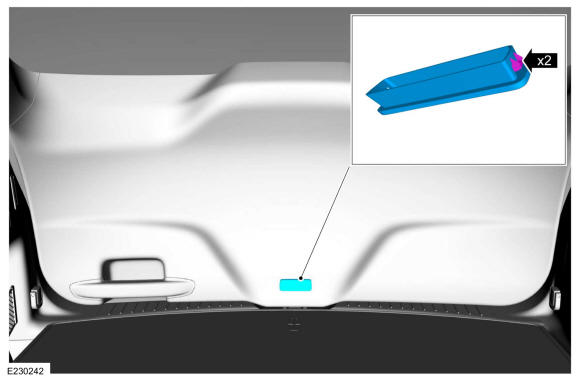

- Remove the liftgate latch access cover from the center of the liftgate trim panel.

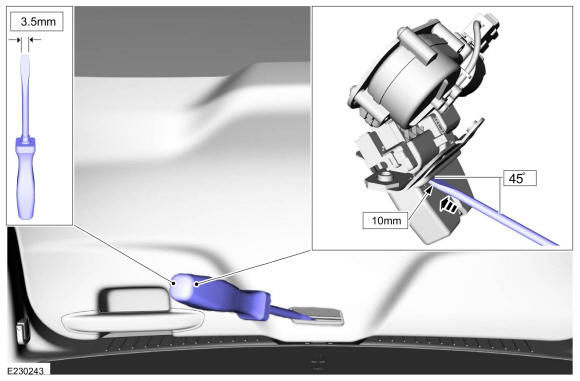

- Insert a 3.5 mm wide flat-bladed screwdriver through the access cover opening at a 45 degree angle 10 mm deep into the RH side of the slot. Use the General Equipment: Flat-Bladed Screwdriver

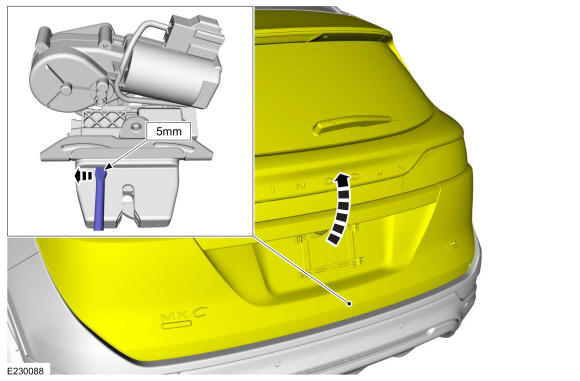

- Slide the 3.5 mm wide flat-bladed screwdriver through the access cover opening 5 mm to the LH side of the slot. Releasing the liftgate latch and opening the liftgate. Use the General Equipment: Flat-Bladed Screwdriver
