Handles, Locks, Latches and Entry Systems - Component Location

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

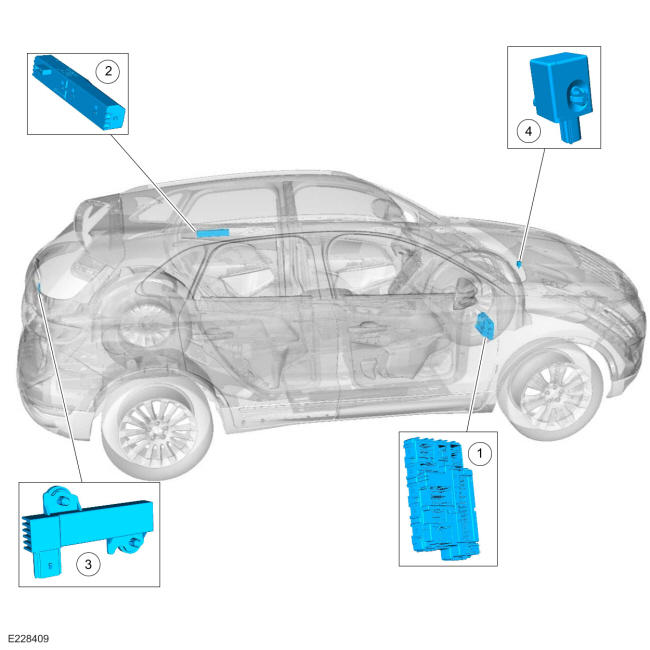

GFD230429Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 RTM
3 Keyless entry rear antenna
4 Exterior sounder
