Rear Door Module (RDM): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .

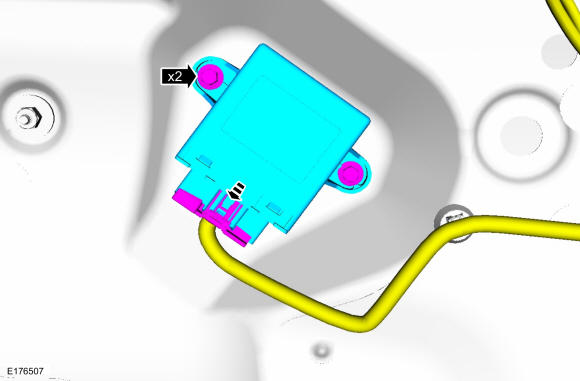

Remove the 2 retainers and the RDM.
- Disconnect the electrical connectors.
  Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
