Removal And Installation: Battery: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Battery Disconnect and Connect .
  2. Refer to: Air Cleaner 2.0L EcoBoost (177kW/240PS) - MI4 . or Air Cleaner 2.3L EcoBoost (201kW/273PS) .

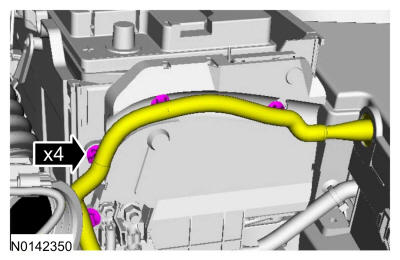

  3. GFD229764Courtesy of FORD MOTOR COMPANY

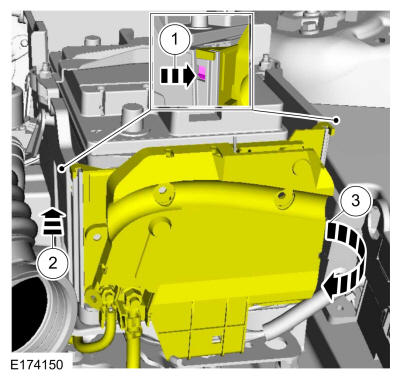

  4. GFD229765Courtesy of FORD MOTOR COMPANY
  5. Torque: 71 lb.in (8 Nm)

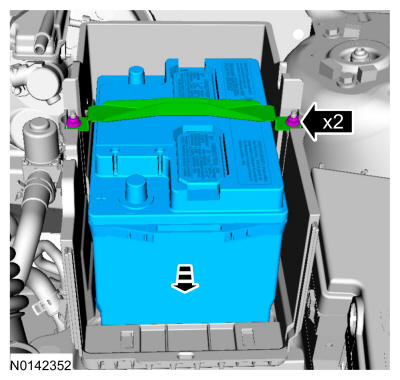

    GFD229766Courtesy of FORD MOTOR COMPANY
