Battery Tray: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. REFER to: Battery .

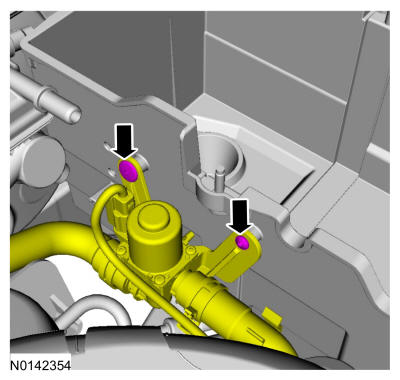

  2. If equipped, remove the retainers and position the transmission fluid heater coolant control valve.
    GFD229775Courtesy of FORD MOTOR COMPANY

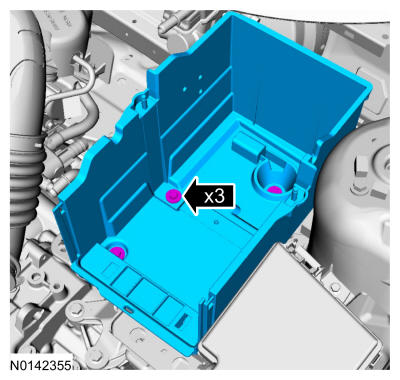

  3. Remove the bolts and the battery tray.

    Torque: 97 lb.in (11 Nm)

    GFD229776Courtesy of FORD MOTOR COMPANY
