Battery Monitoring Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery is disconnected and connected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.

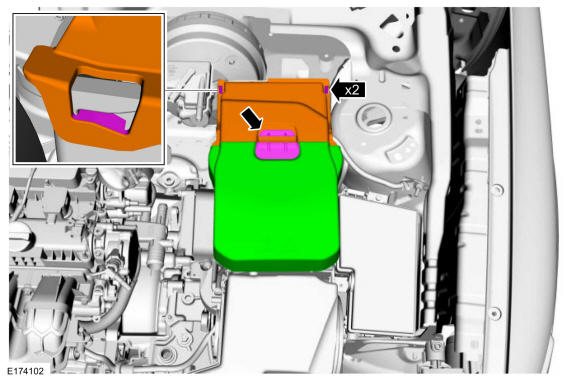

NOTE: The cowl panel is removed for clarity only.

Courtesy of FORD MOTOR COMPANY
NOTE: Cover the positive battery terminal while removing the negative battery cable clamp to prevent damage from a short to the positive terminal.

Install cover.

Courtesy of FORD MOTOR COMPANY

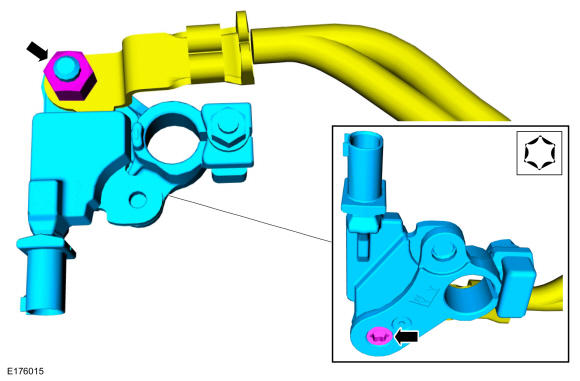

NOTE: Do not remove or install the M8 nut on the cable eyelet bolt while the battery monitor sensor is attached to the battery post as this causes damage to the sensor, connector, and possibly the battery post and case.

NOTE: Be careful not to damage the sensor when removing the terminal from the battery post. Do not pry on the terminals or component damage may occur.
1. Detach the wire harness retainer.
2. Disconnect the electrical connector.
3. Loosen, but do not remove the nut.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the battery cable terminal does not contact the negative battery terminal hold-down clamp. If contact is made, improper function of the battery monitoring sensor occurs.

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
