Section 1150 (Information Center - Instrumentation, Message Center And Warning Chimes)
>>
Description And Operation
>>
Warning Chimes - System Operation and Component Description
>>
System Operation
>>

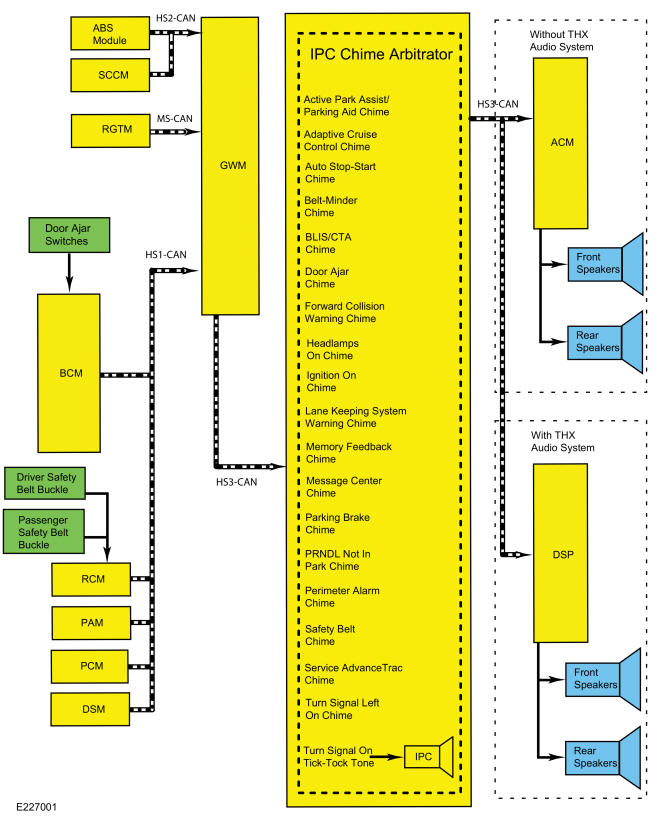

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
