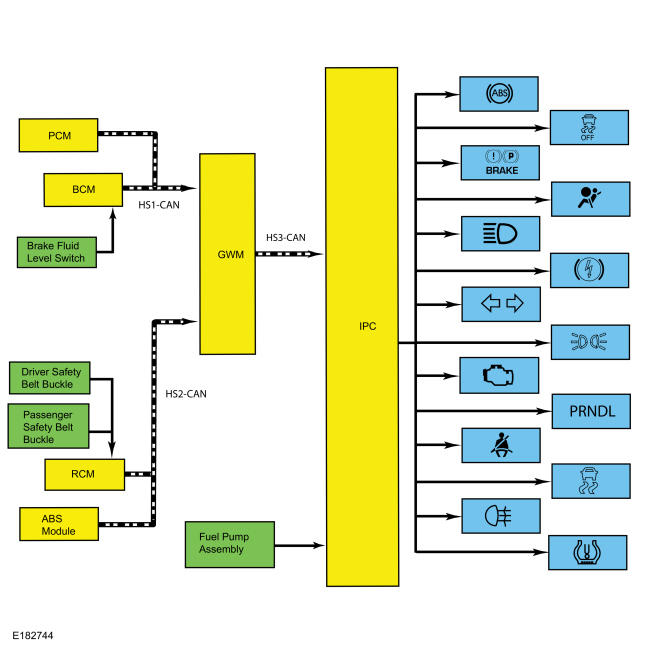

Network Message Chart - Indicators

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
GFD229721Courtesy of FORD MOTOR COMPANY
