Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Refer to: Jacking and Lifting - Overview .
All wheel drive (AWD) vehicles
Refer to: Wheel and Tire .

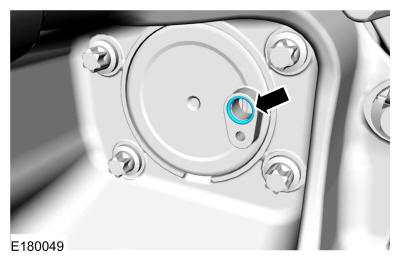

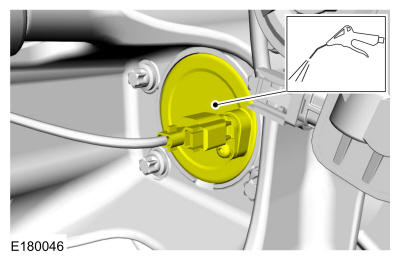

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

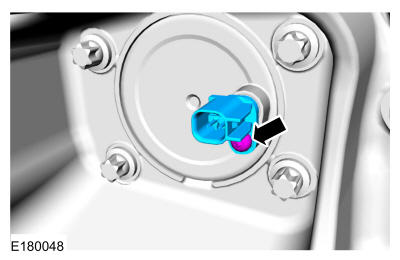

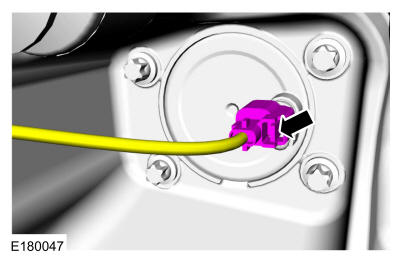

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

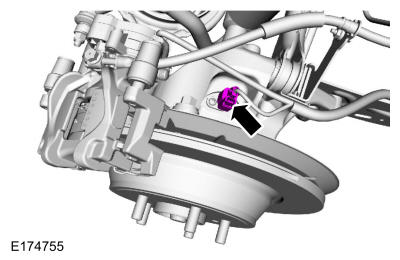

Front wheel drive (FWD) vehicles

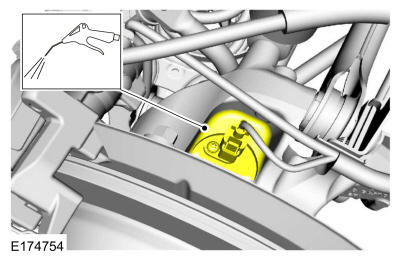

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
