Hydraulic Control Unit (HCU): Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The HCU and ABS module are released individually. A new HCU does not come equipped with an ABS module.

Remove the battery tray. Refer to: Battery Tray .

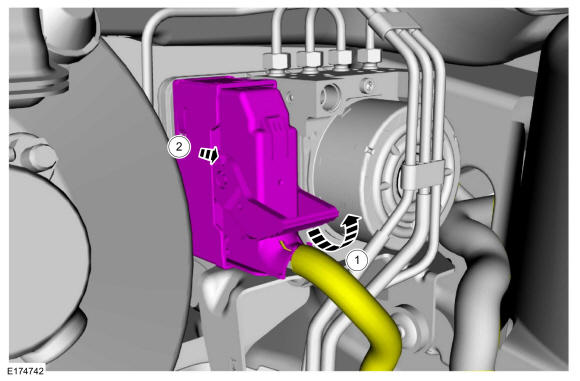

Disconnect the ABS module electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

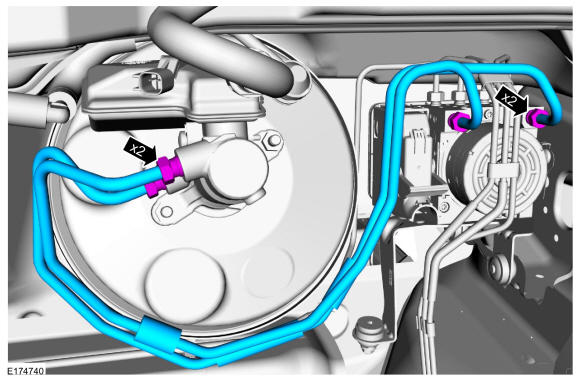

Disconnect the brake tube fittings and remove the brake tubes.

Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

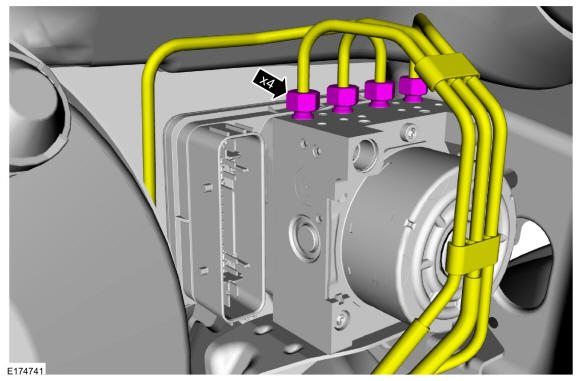

Disconnect the brake tube fittings.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

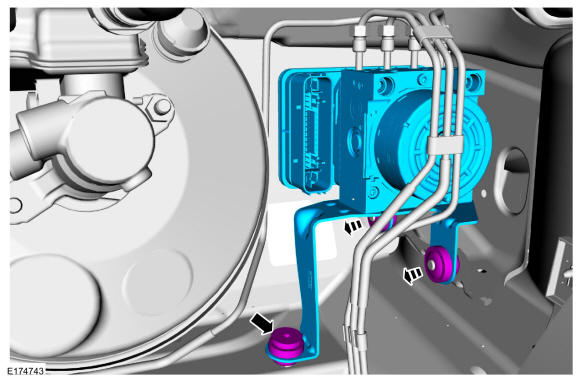

Remove the bolt and the HCU.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the HCU and ABS module are clean and free of any brake fluid or foreign material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.

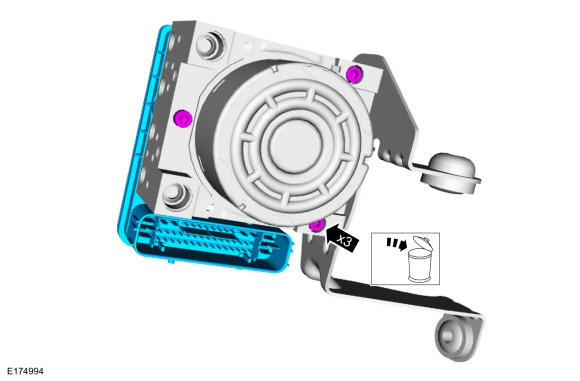

Remove the screws and the ABS module. Discard the screws.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

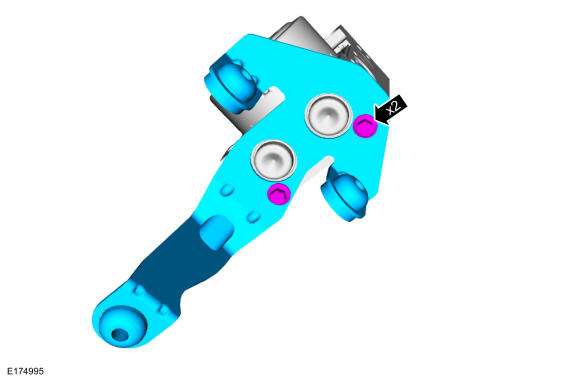

Remove the bolts and the HCU bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
