Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Wheel and Tire .

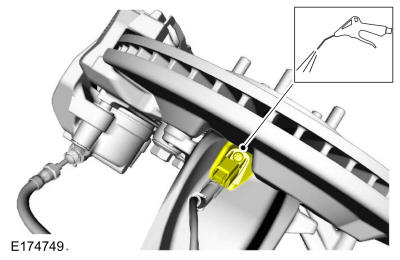

  2. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
    GFD227328Courtesy of FORD MOTOR COMPANY

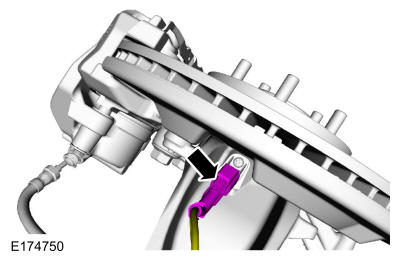

  3. GFD227329Courtesy of FORD MOTOR COMPANY

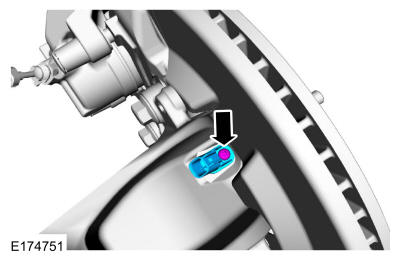

  4. Torque: 42 lb.in (4.8 Nm)
GFD227330Courtesy of FORD MOTOR COMPANY
