Remote Keyless Entry and Alarm

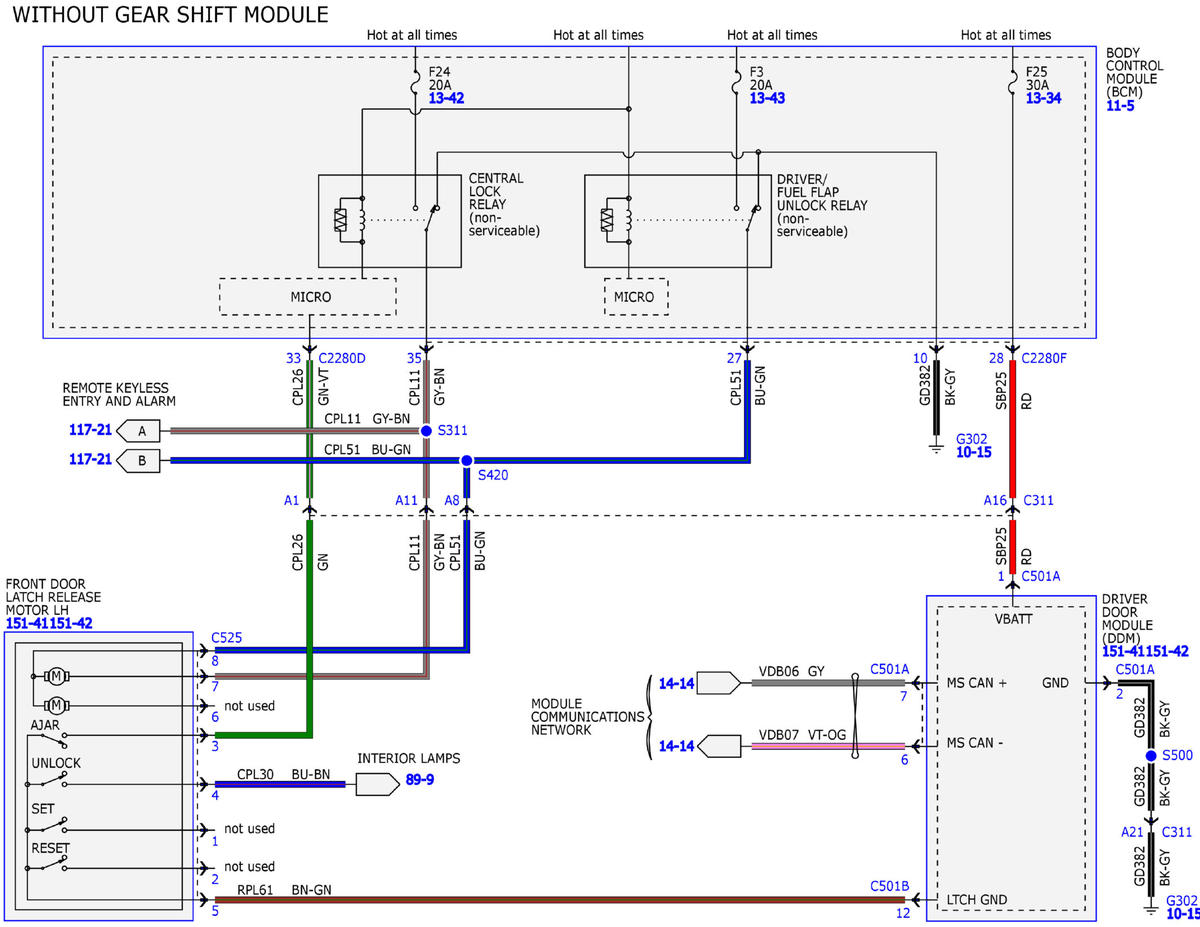

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 21)

GFDW99025

Courtesy of FORD MOTOR COMPANY

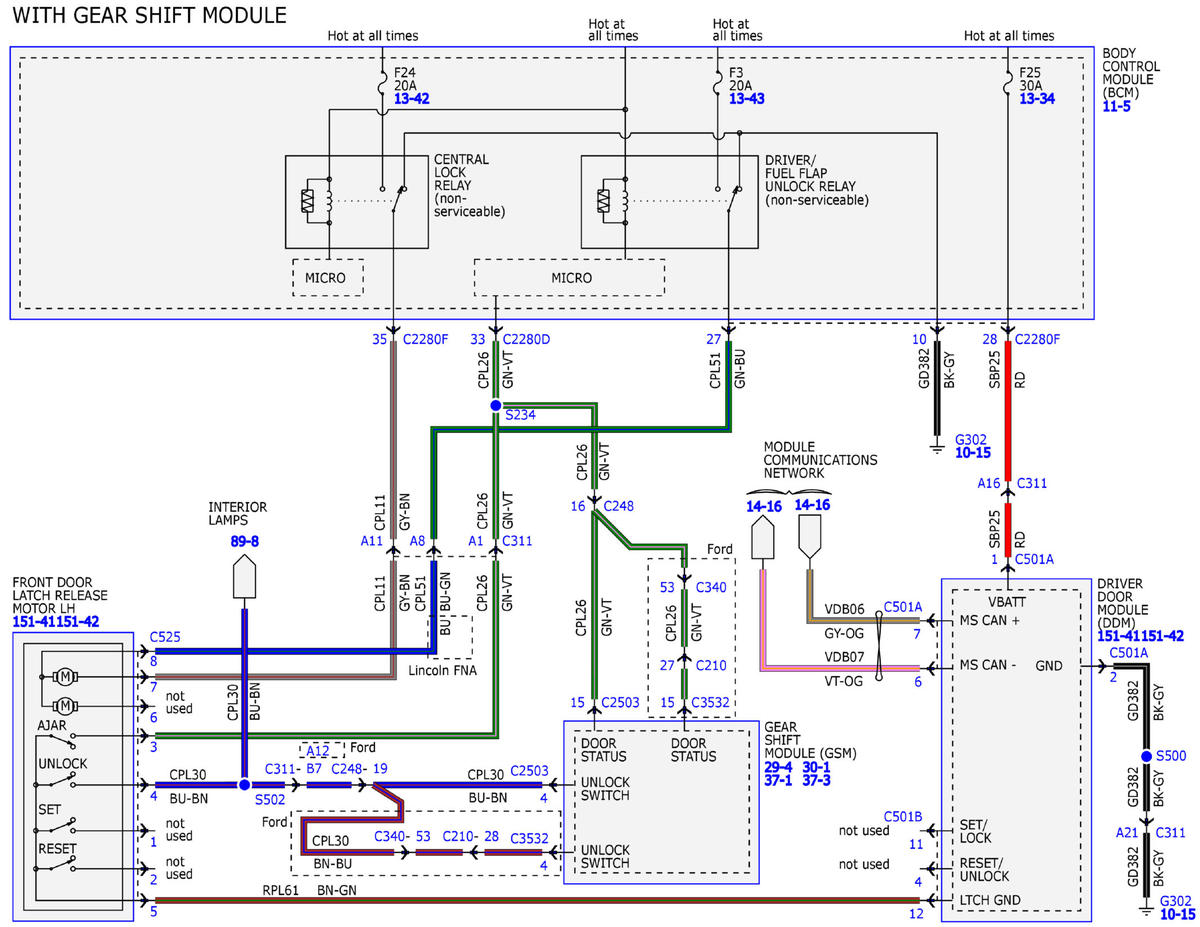

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 21)

GFDW99026

Courtesy of FORD MOTOR COMPANY

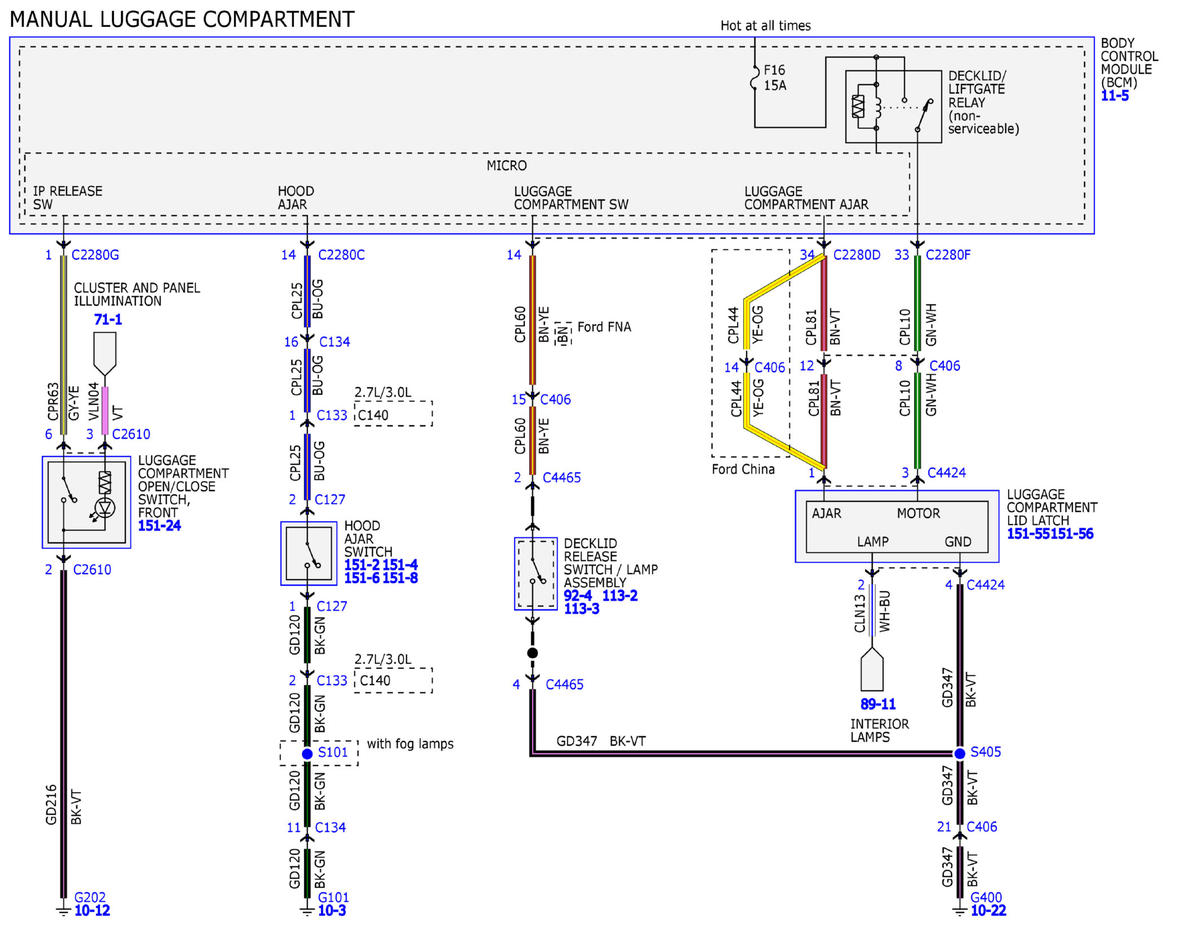

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 21)

GFDW99027

Courtesy of FORD MOTOR COMPANY

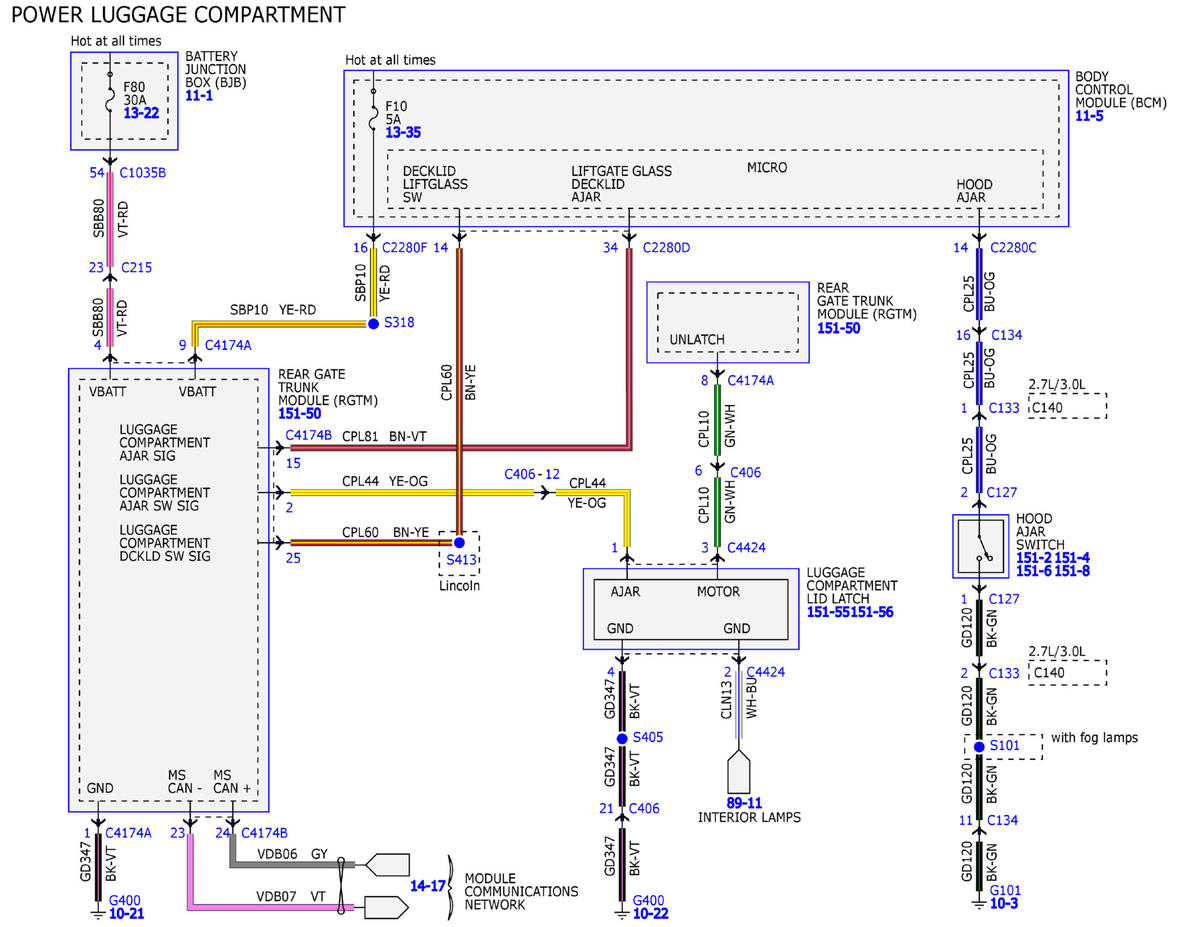

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 21)

GFDW99028

Courtesy of FORD MOTOR COMPANY

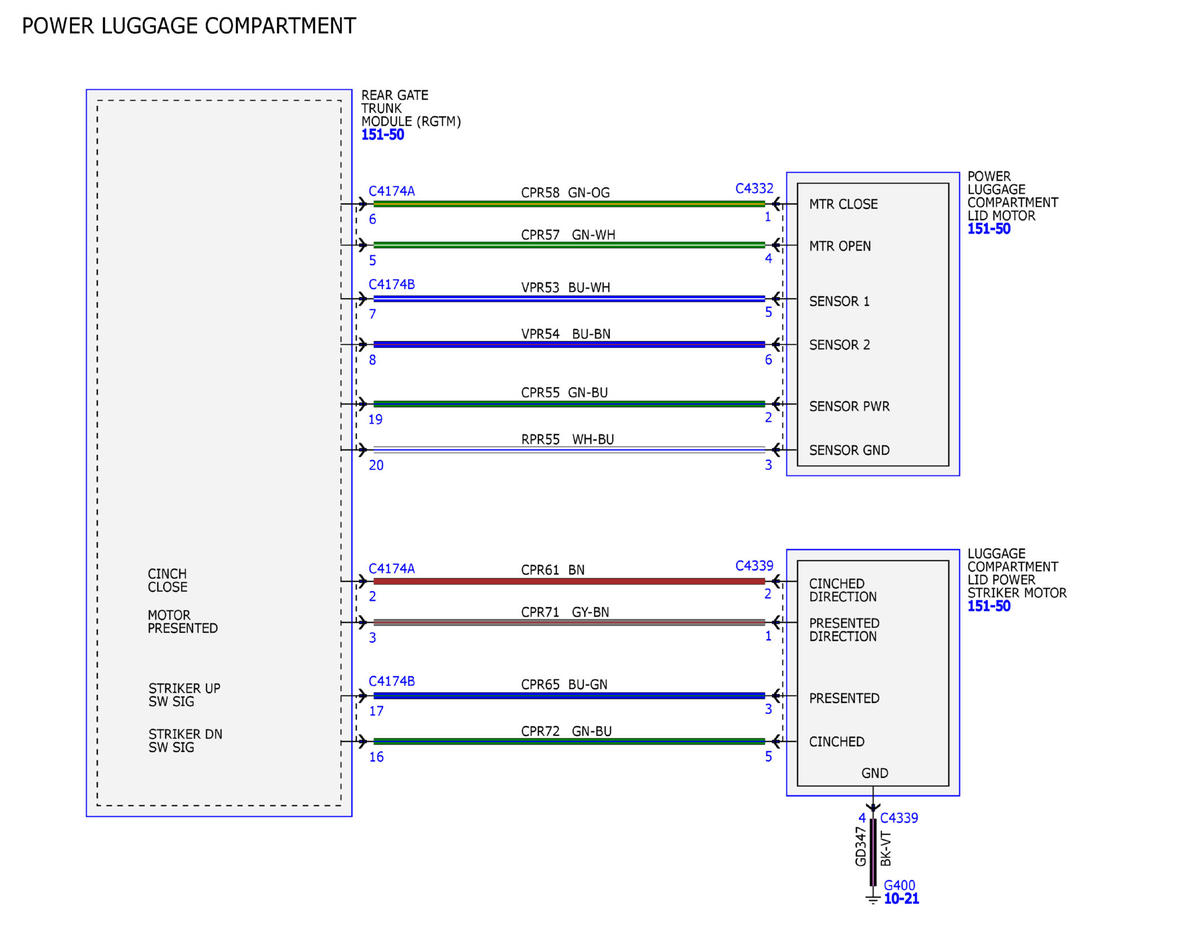

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 21)

GFDW99029

Courtesy of FORD MOTOR COMPANY

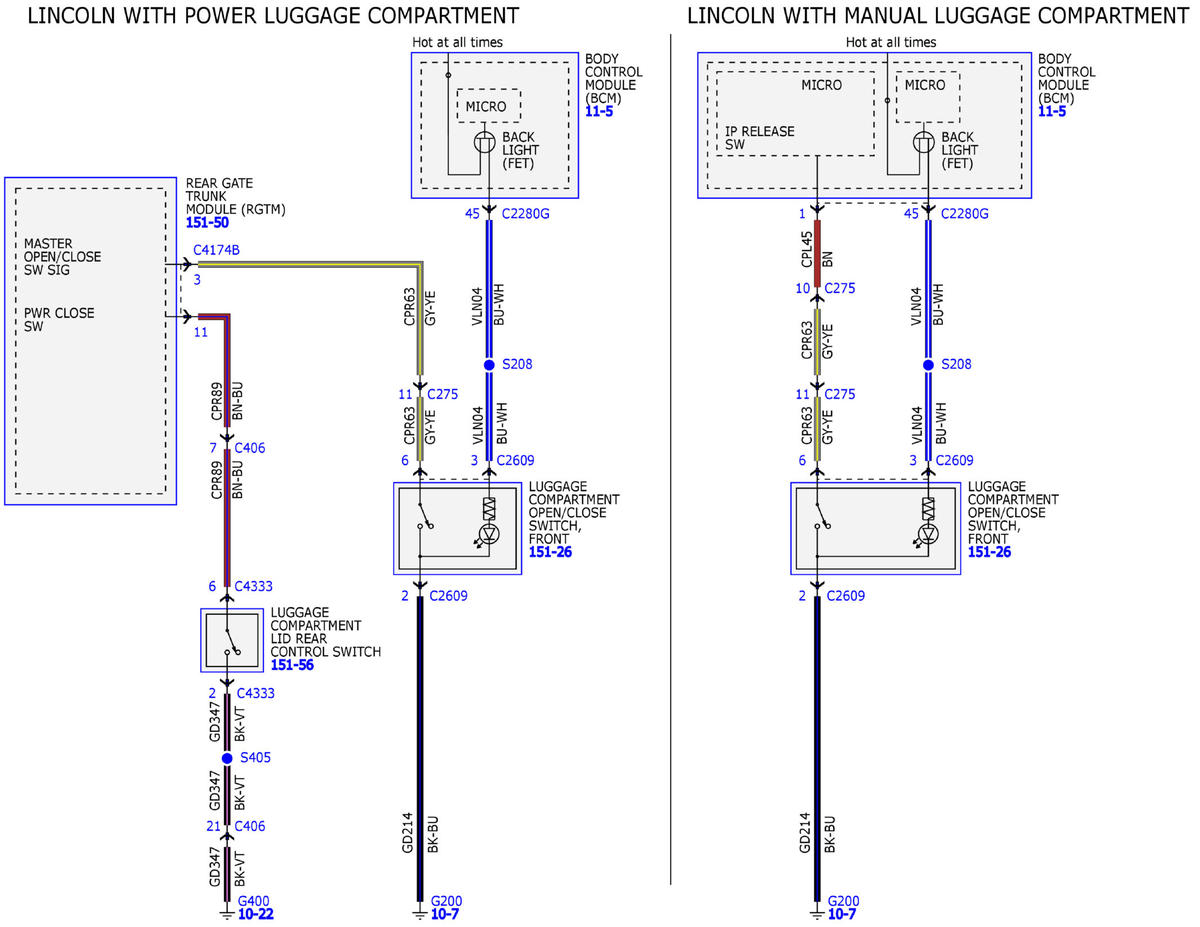

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 21)

GFDW99030

Courtesy of FORD MOTOR COMPANY

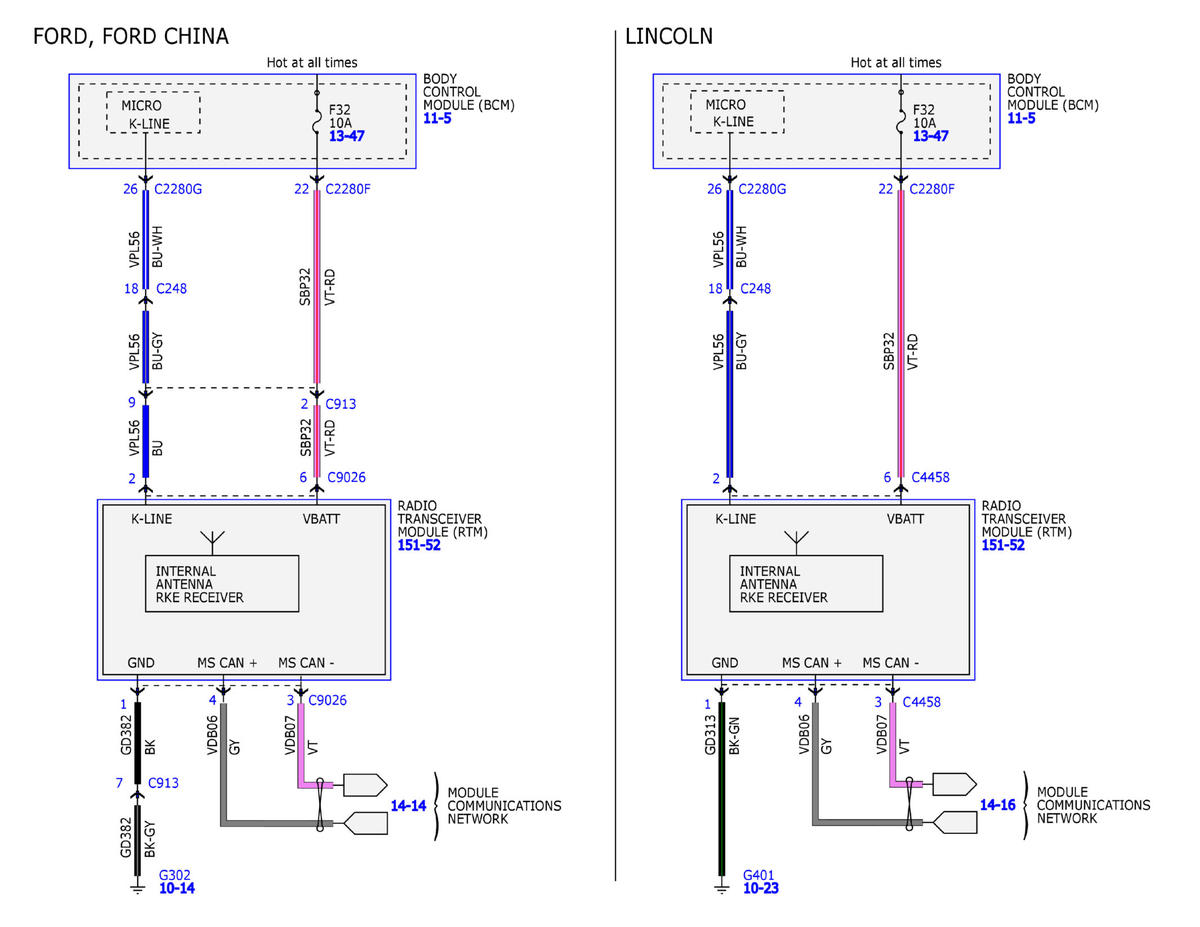

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 21)

GFDW99031

Courtesy of FORD MOTOR COMPANY

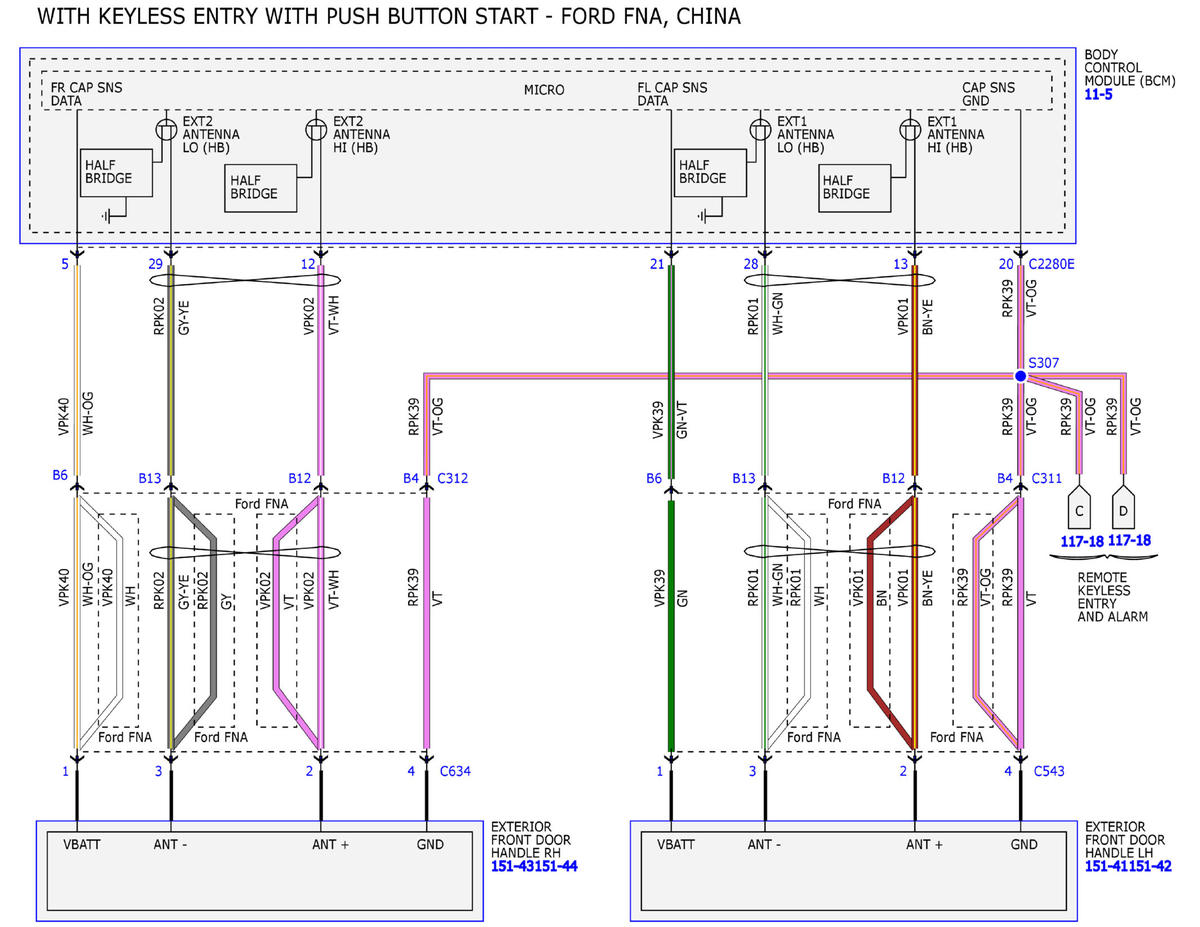

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 21)

GFDW99032

Courtesy of FORD MOTOR COMPANY

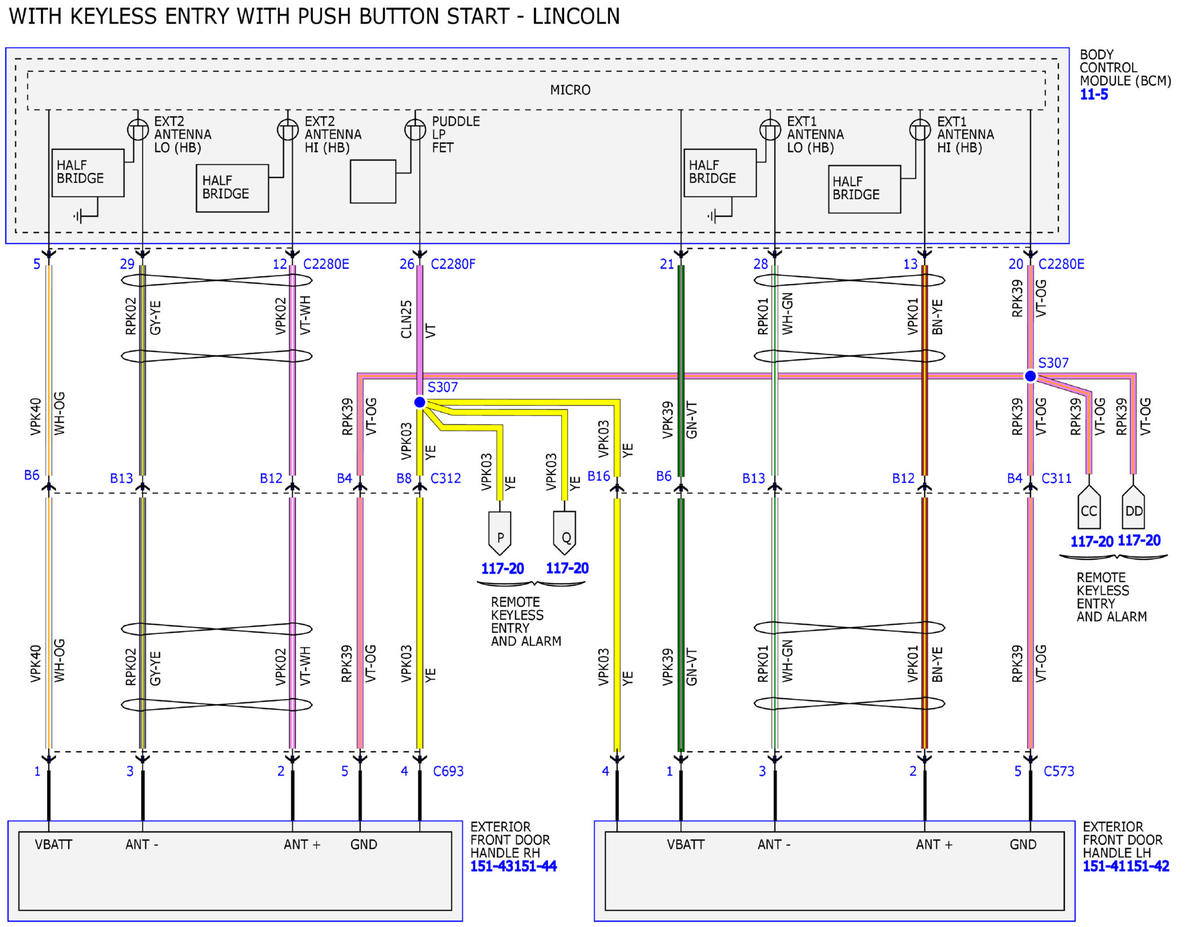

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 21)

GFDW99033

Courtesy of FORD MOTOR COMPANY

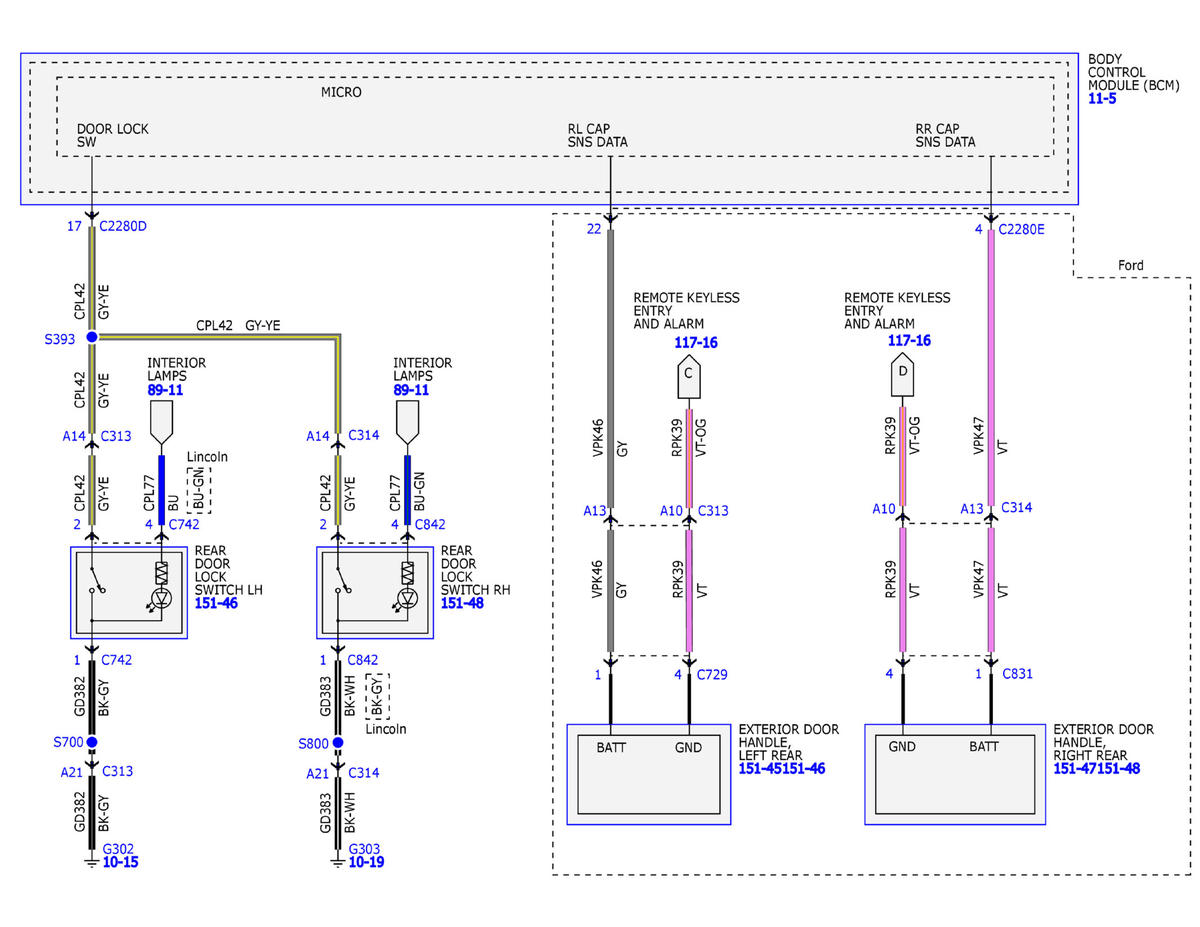

Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 of 21)

GFDW99034

Courtesy of FORD MOTOR COMPANY

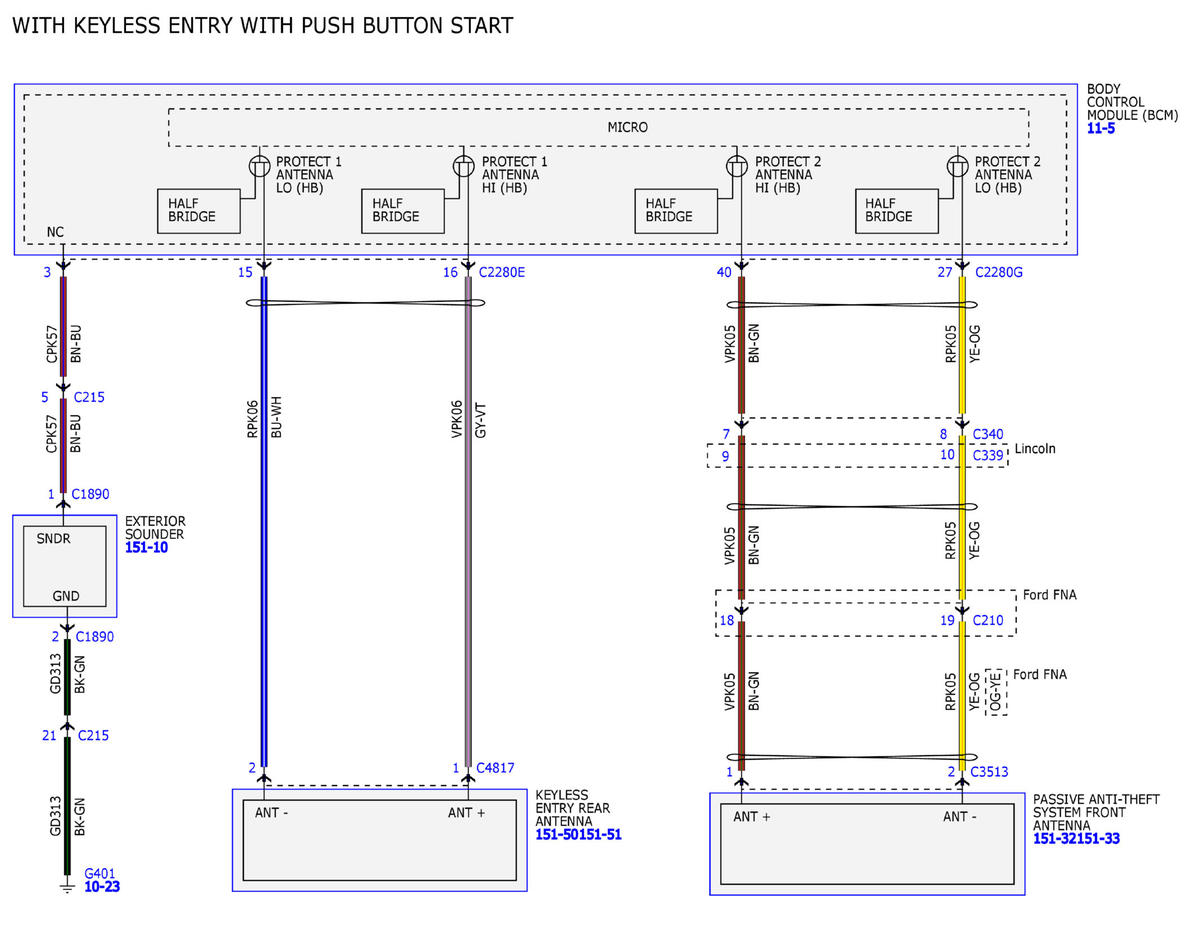

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 of 21)

GFDW99035

Courtesy of FORD MOTOR COMPANY

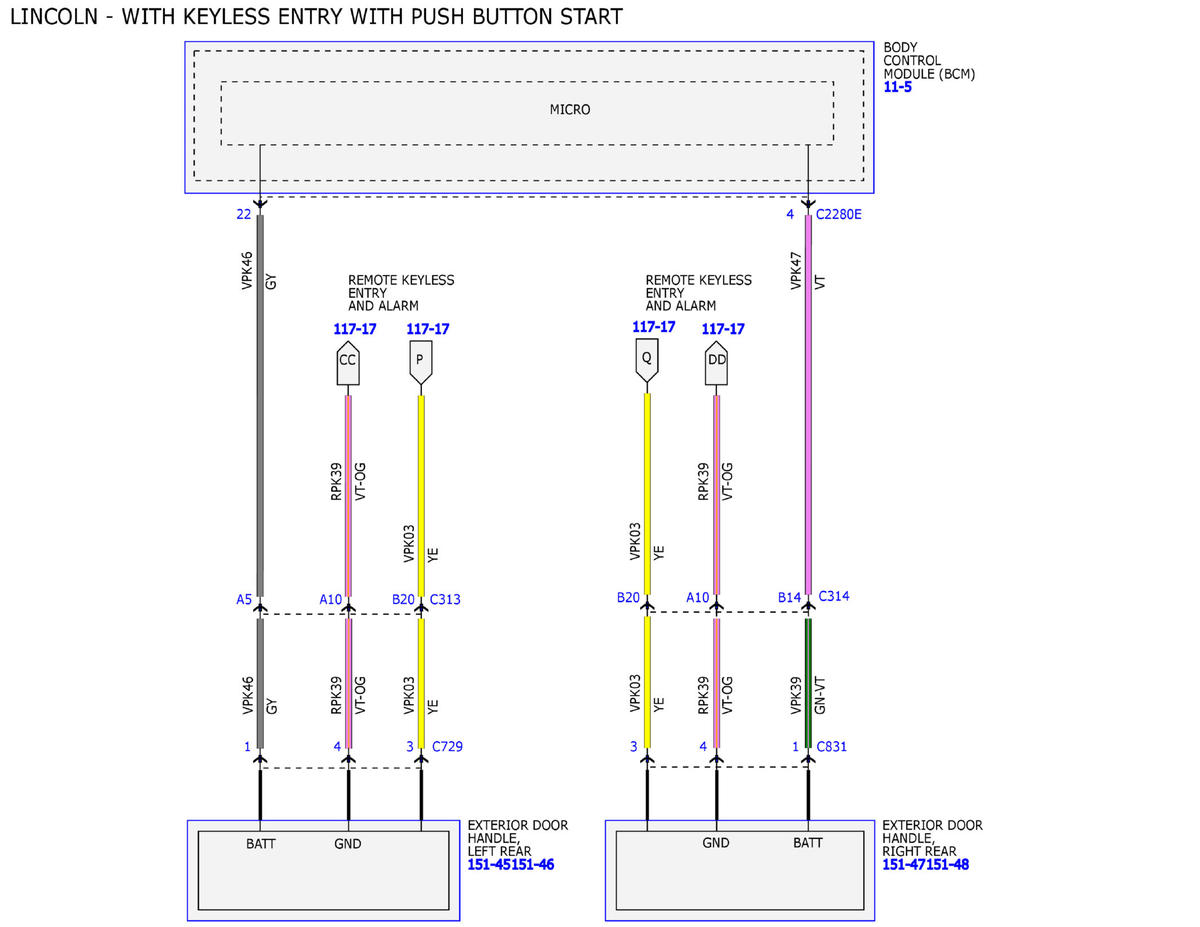

Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 of 21)

GFDW99036

Courtesy of FORD MOTOR COMPANY

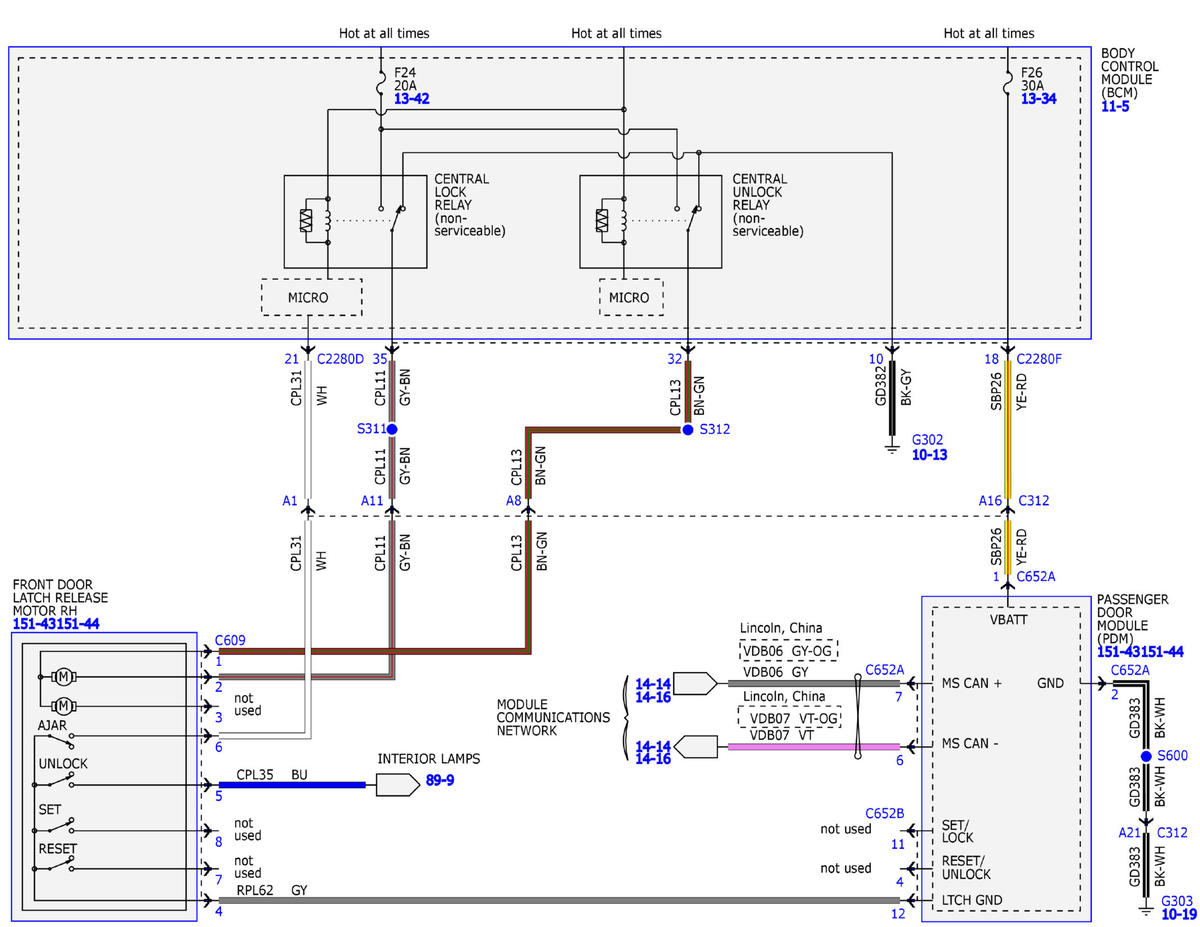

Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 of 21)

GFDW99037

Courtesy of FORD MOTOR COMPANY

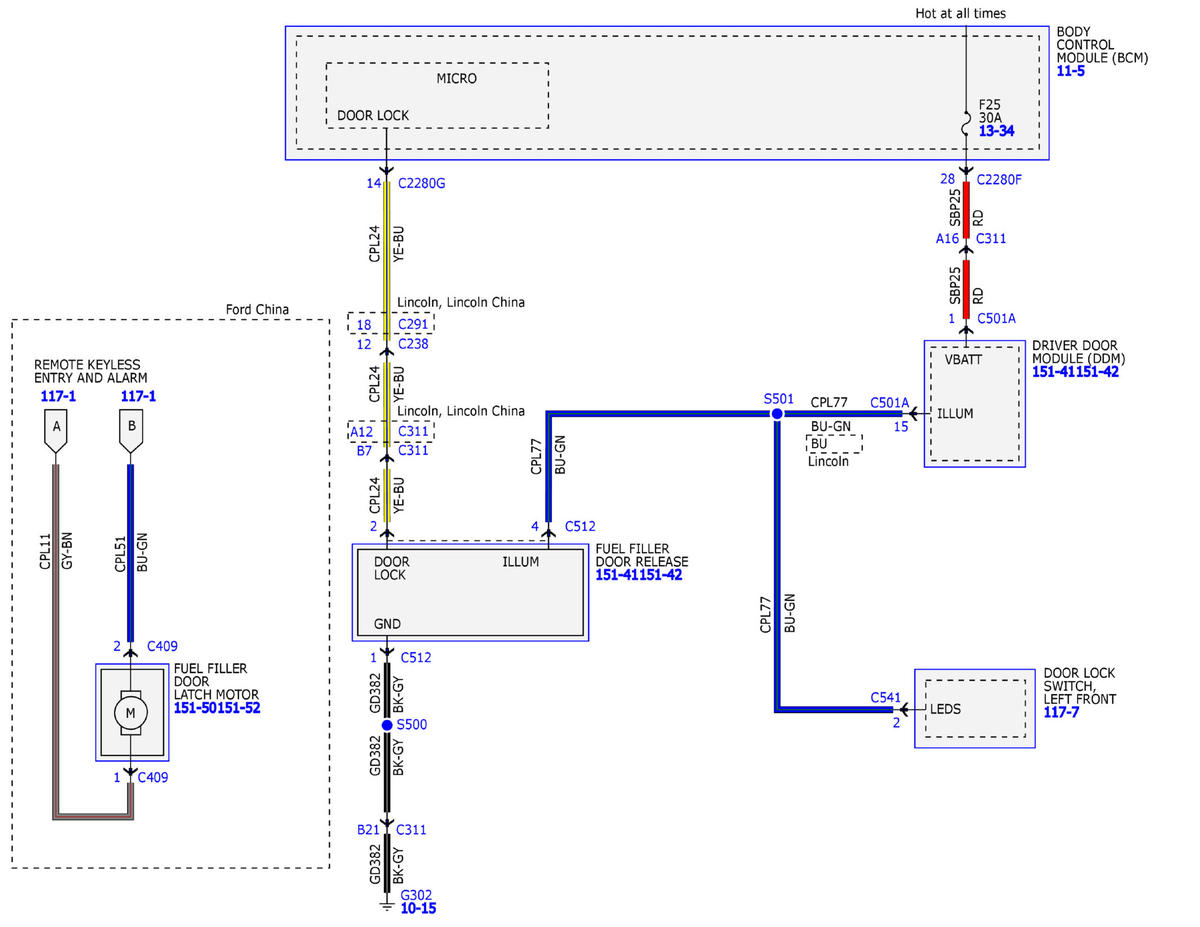

Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 of 21)

GFDW99038

Courtesy of FORD MOTOR COMPANY

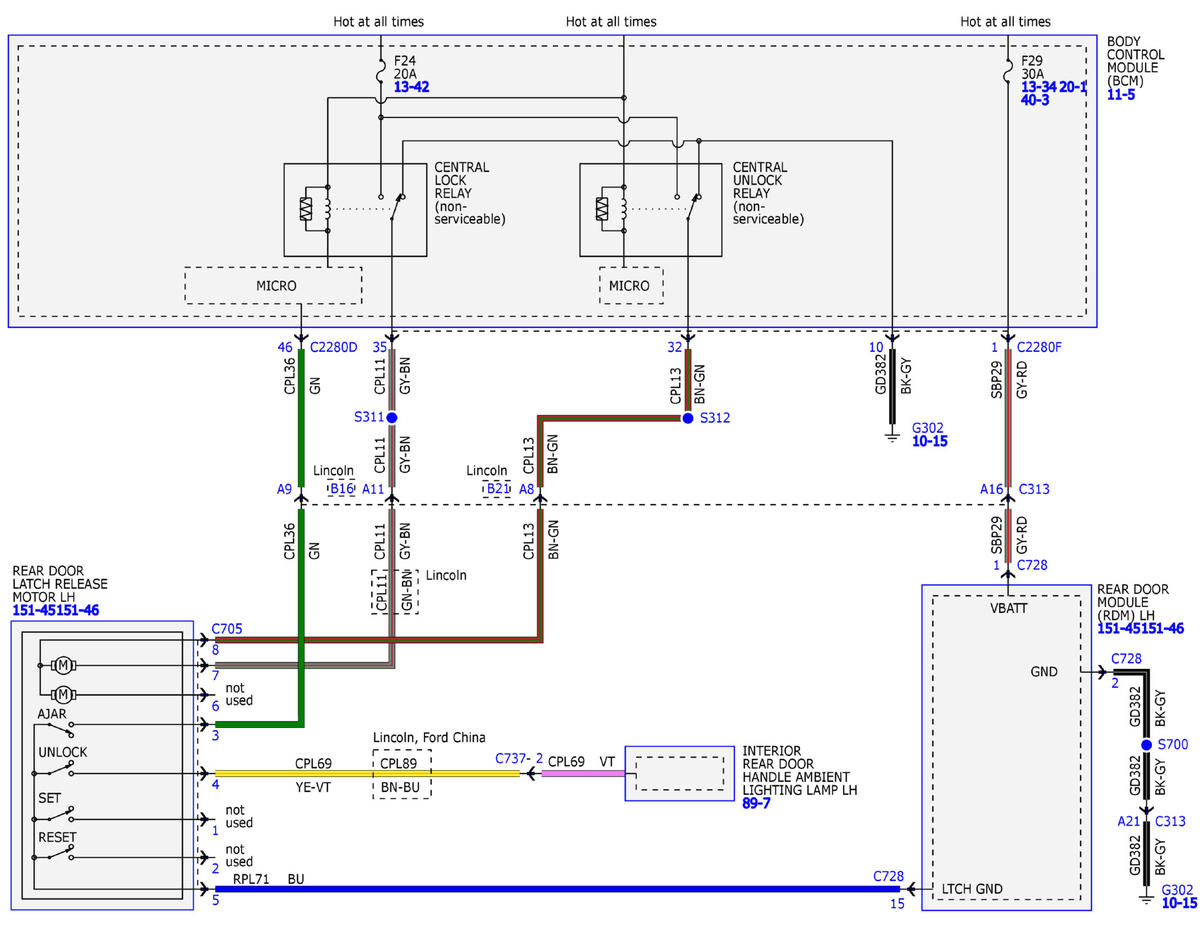

Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 of 21)

GFDW99039

Courtesy of FORD MOTOR COMPANY

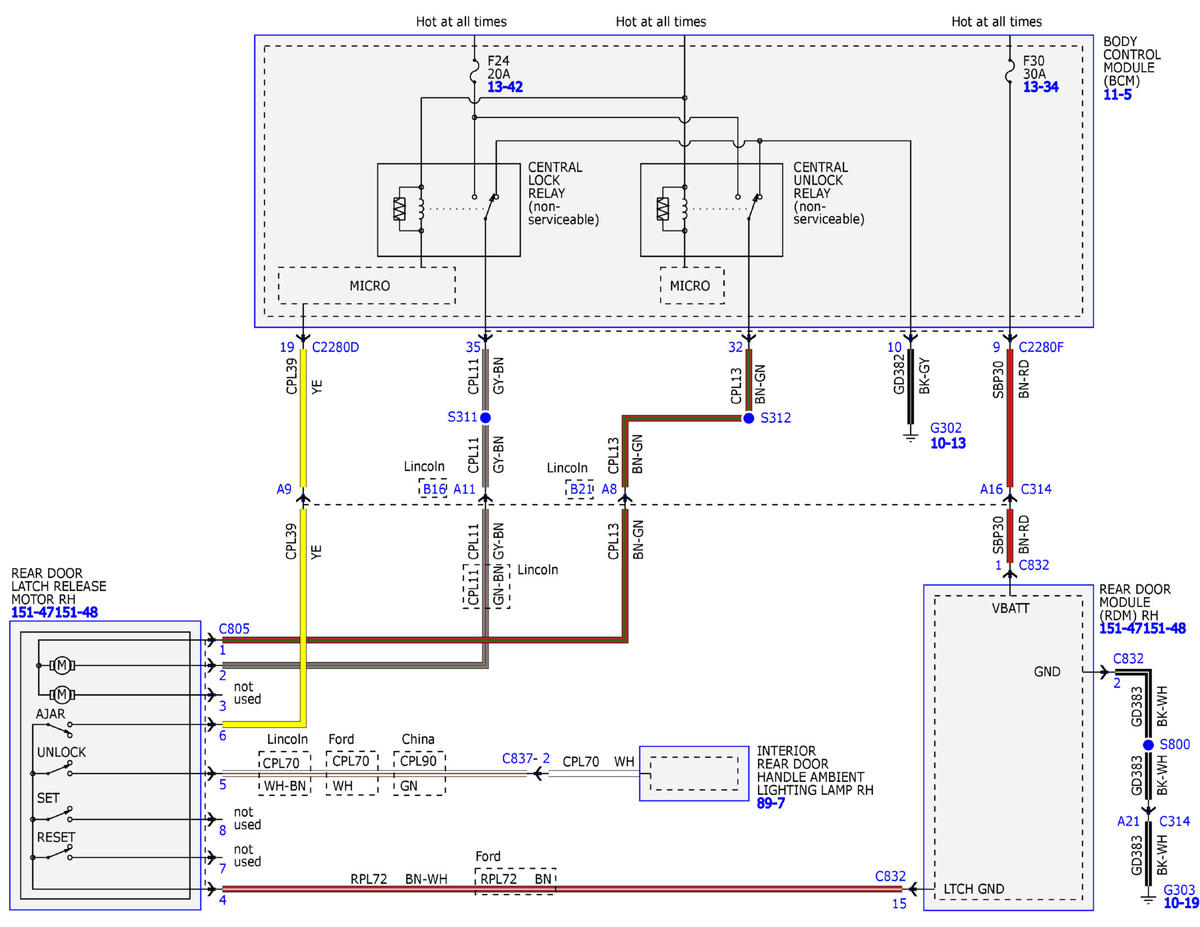

Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 of 21)

GFDW99040

Courtesy of FORD MOTOR COMPANY

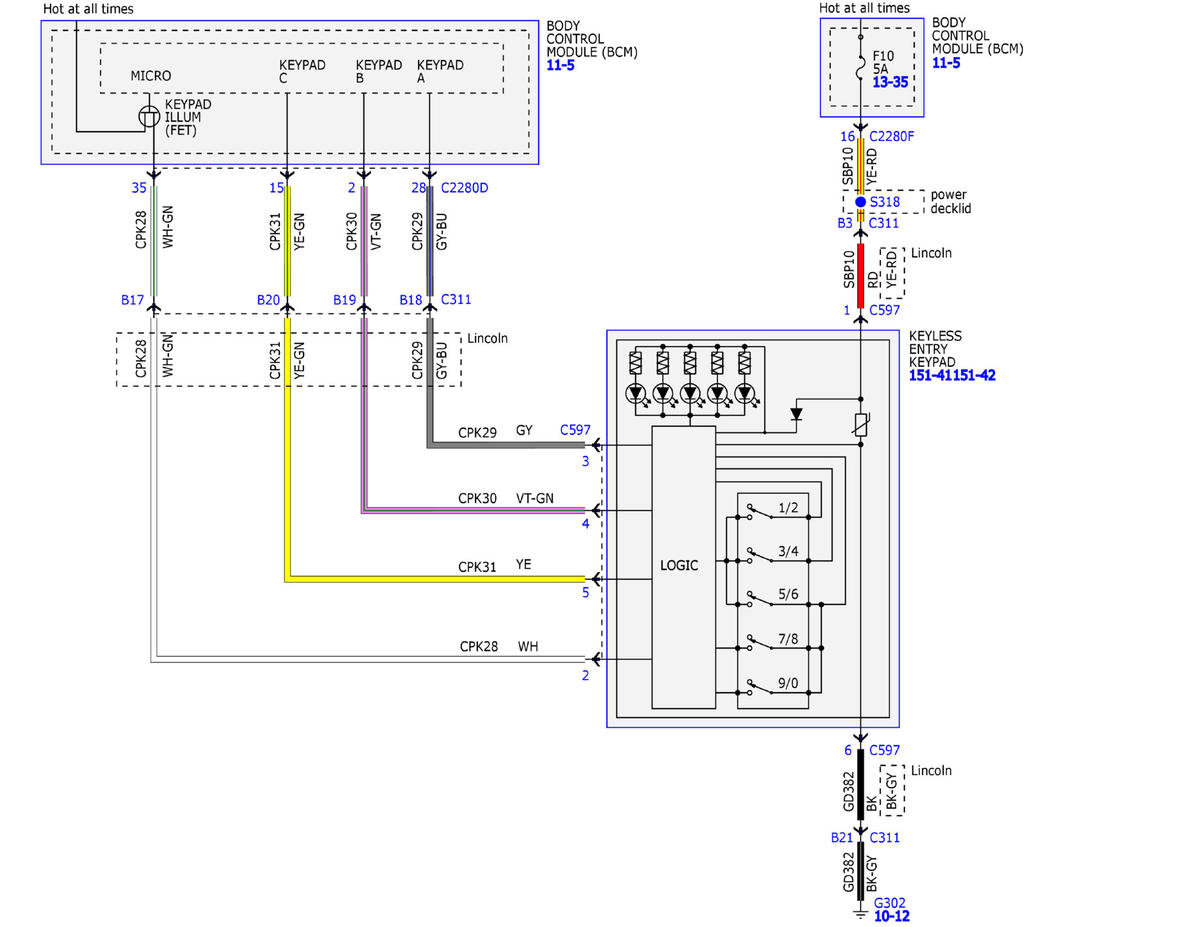

Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 of 21)

GFDW99041

Courtesy of FORD MOTOR COMPANY

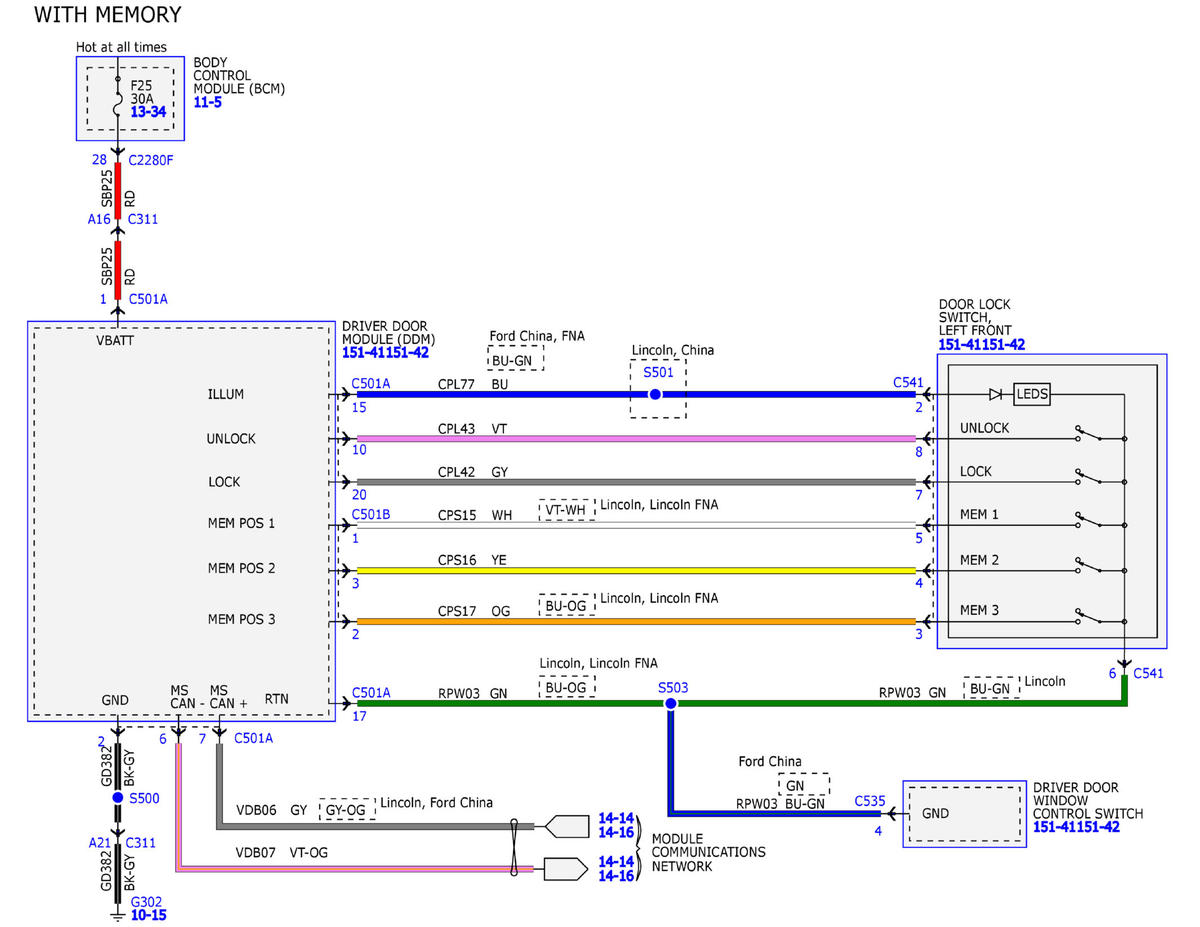

Fig 18: Remote Keyless Entry and Alarm Wiring Diagram (18 of 21)

GFDW99042

Courtesy of FORD MOTOR COMPANY

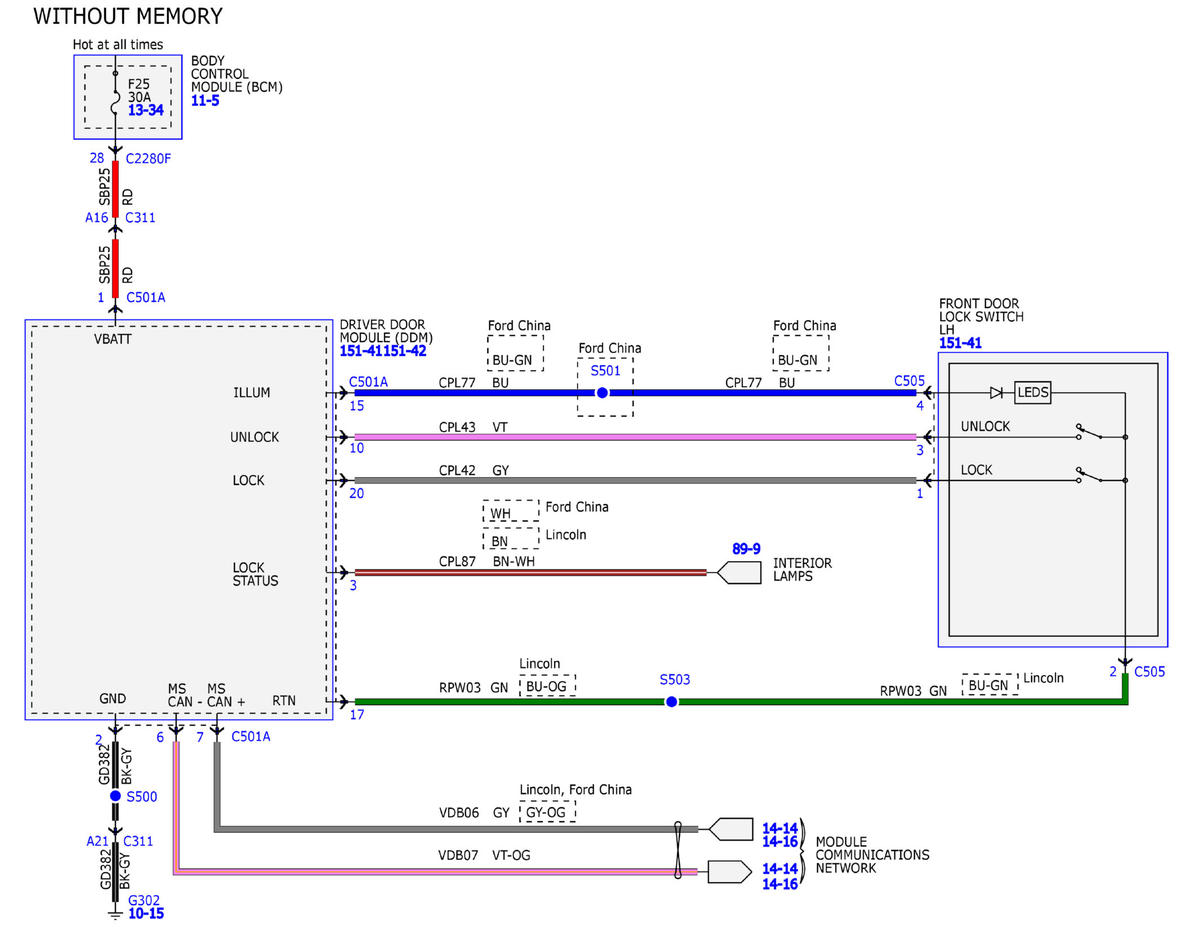

Fig 19: Remote Keyless Entry and Alarm Wiring Diagram (19 of 21)

GFDW99043

Courtesy of FORD MOTOR COMPANY

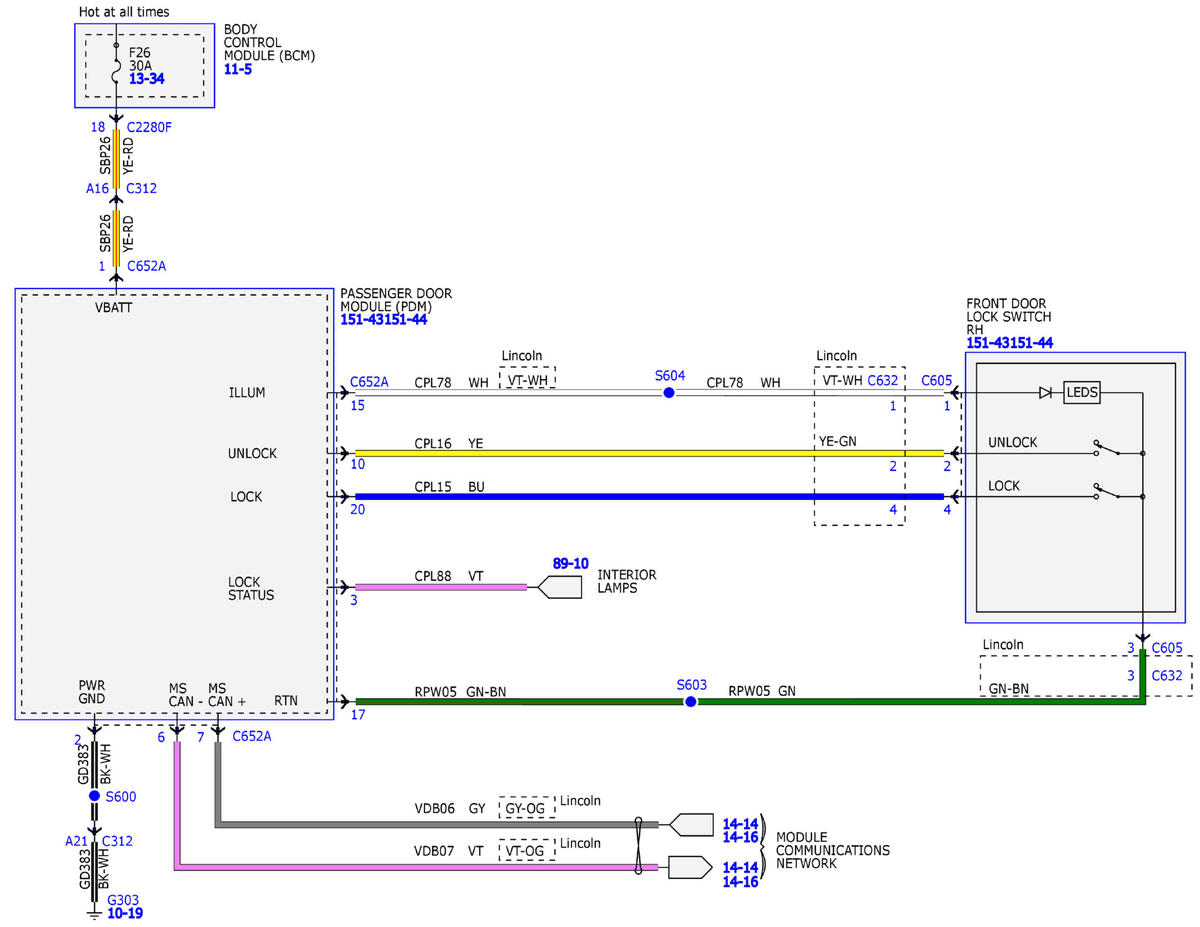

Fig 20: Remote Keyless Entry and Alarm Wiring Diagram (20 of 21)

GFDW99044

Courtesy of FORD MOTOR COMPANY

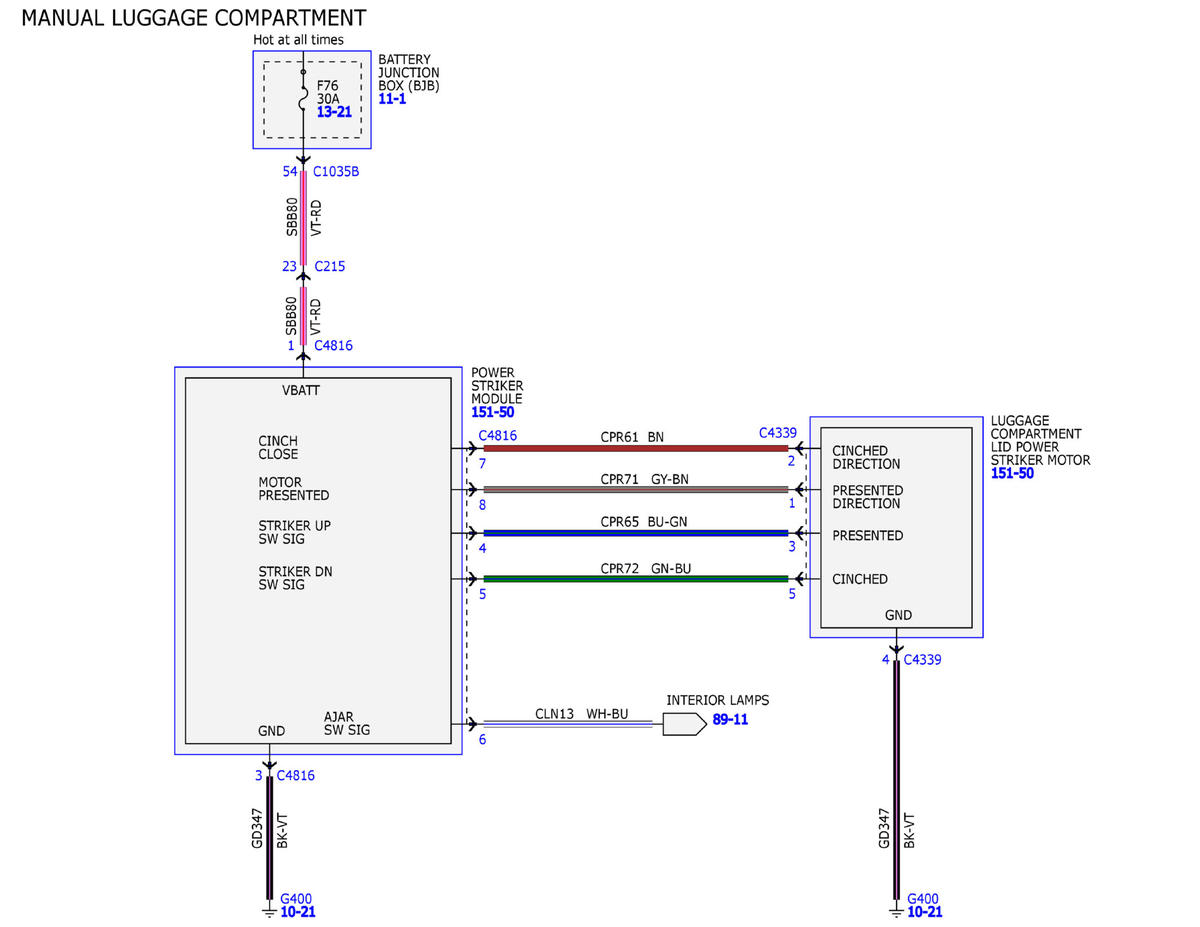

Fig 21: Remote Keyless Entry and Alarm Wiring Diagram (21 of 21)

GFDW99045

Courtesy of FORD MOTOR COMPANY
