Instrument Cluster

Fig 1: Instrument Cluster Wiring Diagram (1 Of 5)
GFDW98877Courtesy of FORD MOTOR COMPANY

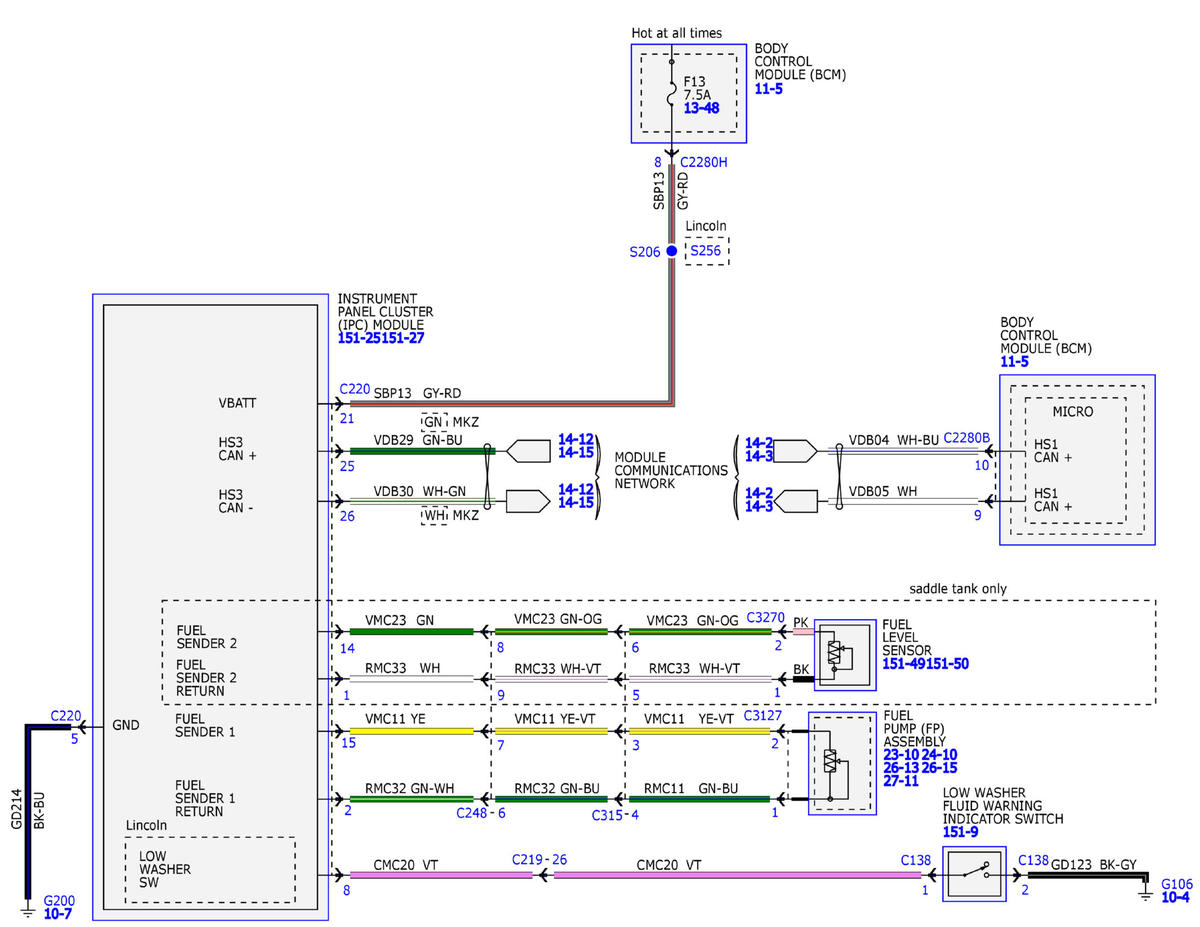

Fig 2: Instrument Cluster Wiring Diagram (2 Of 5)
GFDW98878Courtesy of FORD MOTOR COMPANY

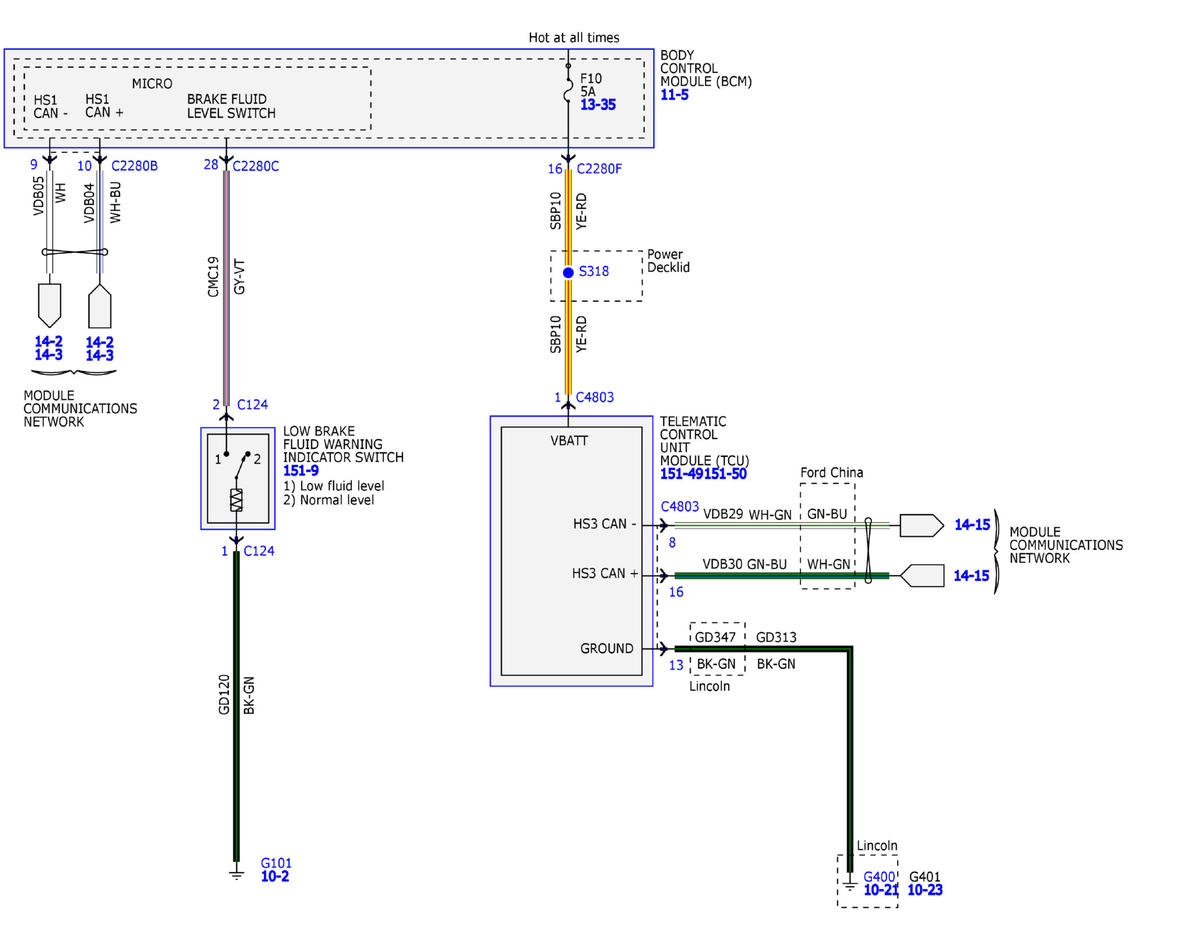

Fig 3: Instrument Cluster Wiring Diagram (3 Of 5)
GFDW98879Courtesy of FORD MOTOR COMPANY

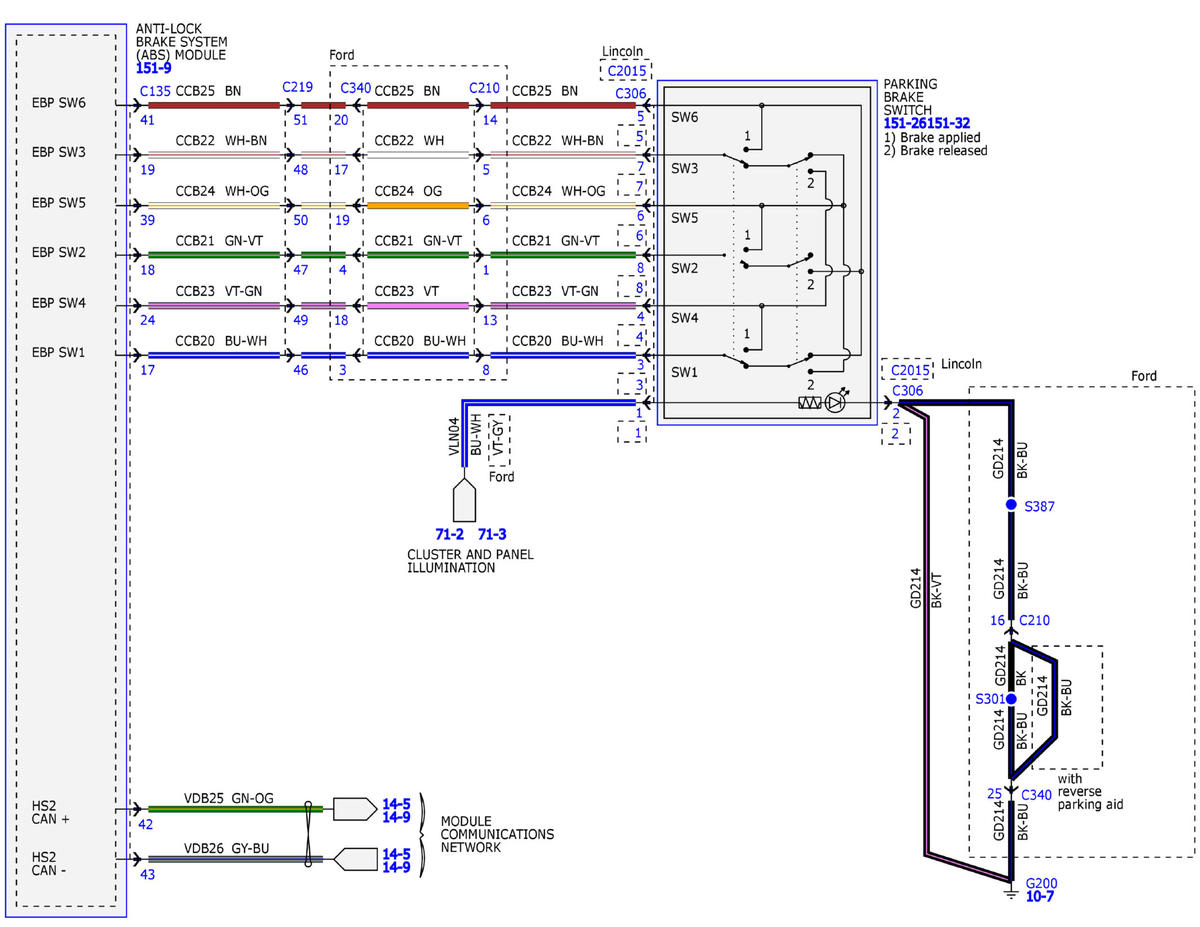

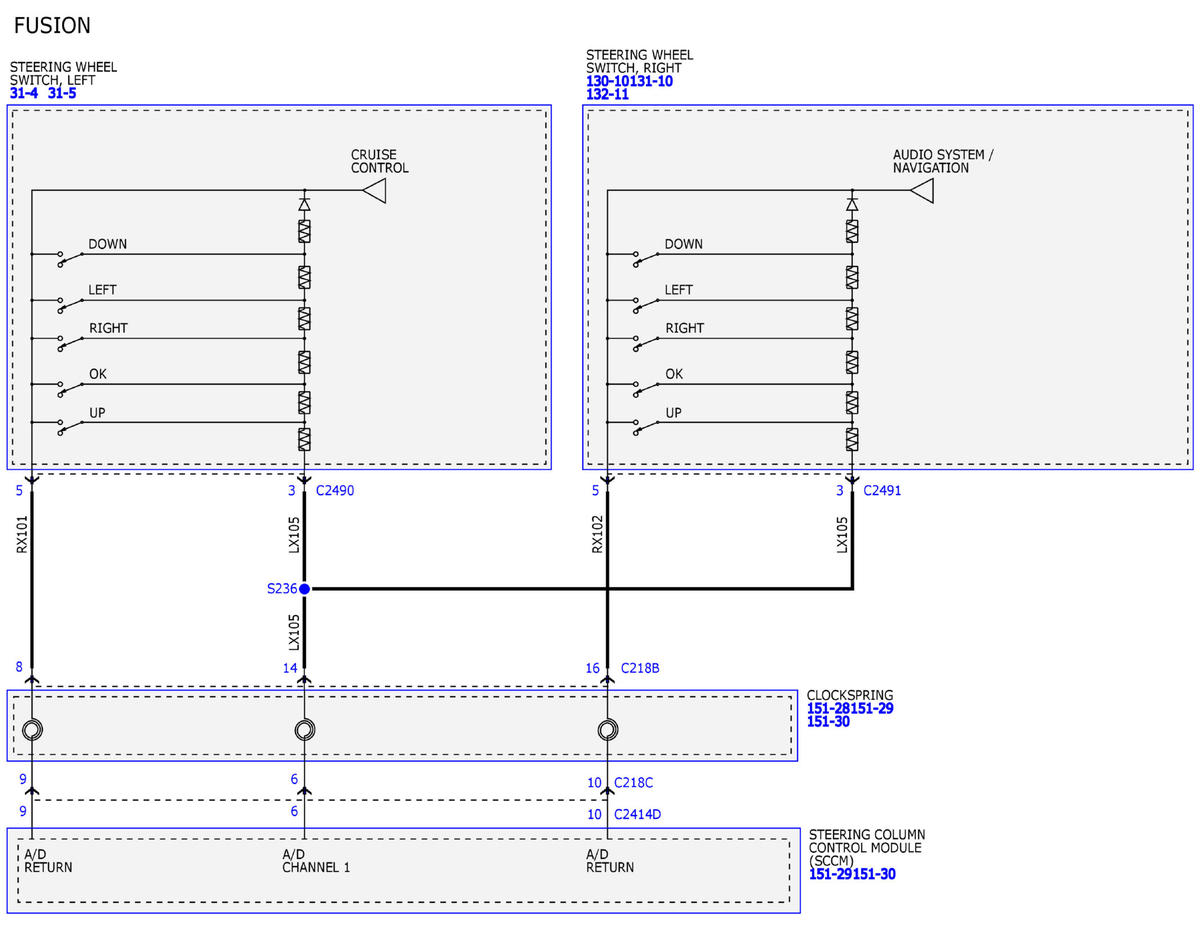

Fig 4: Instrument Cluster Wiring Diagram (4 Of 5)
GFDW98880Courtesy of FORD MOTOR COMPANY

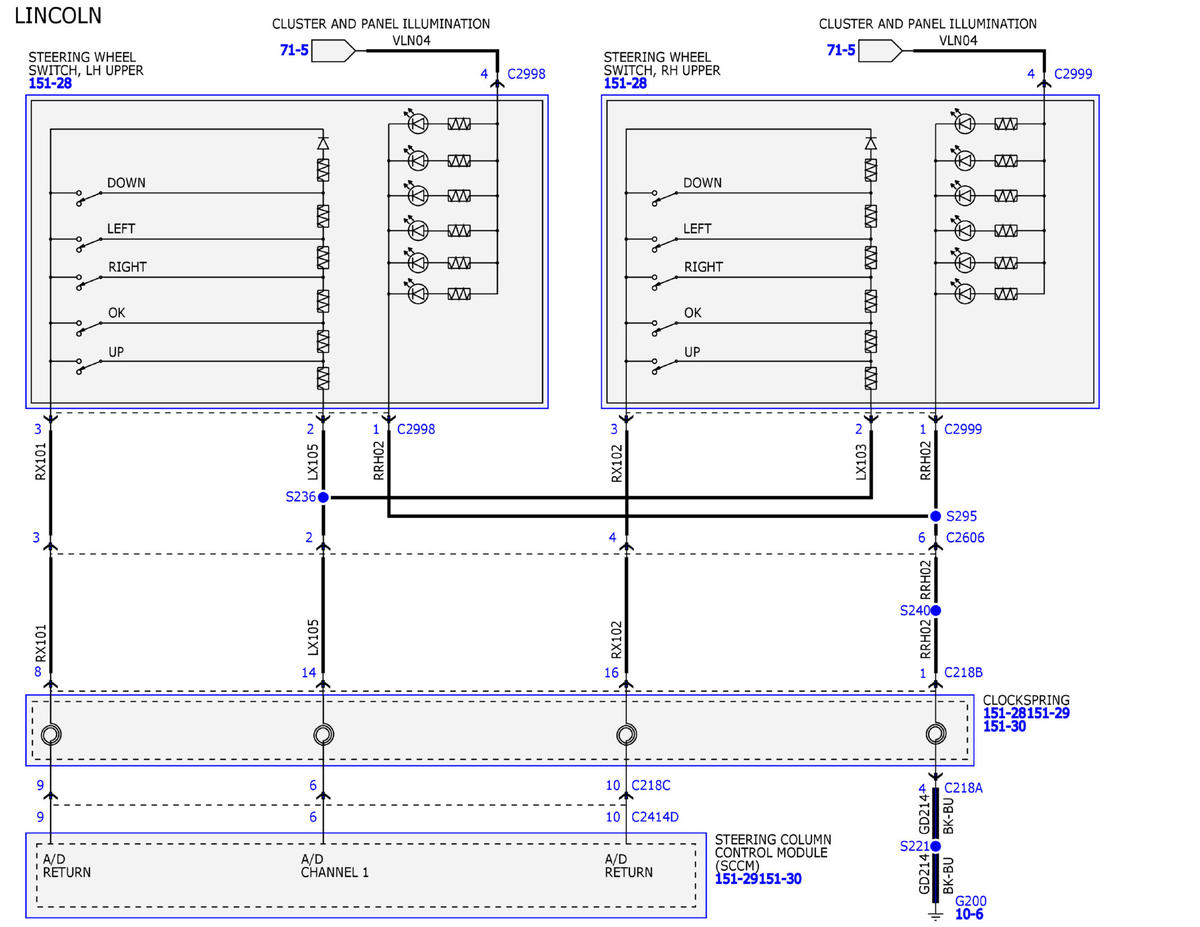

Fig 5: Instrument Cluster Wiring Diagram (5 Of 5)
GFDW98881Courtesy of FORD MOTOR COMPANY
