Brake Master Cylinder: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Before removing the master cylinder, relieve the vacuum in the brake booster or the master cylinder O-ring seal may be drawn into the brake booster, causing brake booster failure and increased brake pedal effort.

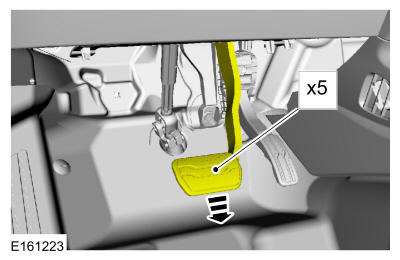

Fully apply and release the brake pedal 5 times.

Courtesy of FORD MOTOR COMPANY

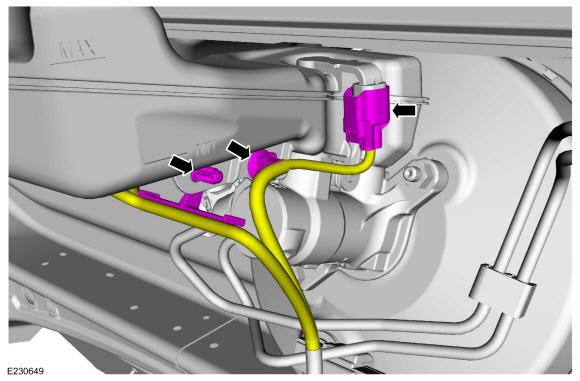

Disconnect the brake fluid level sensor electrical connector and the wiring retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

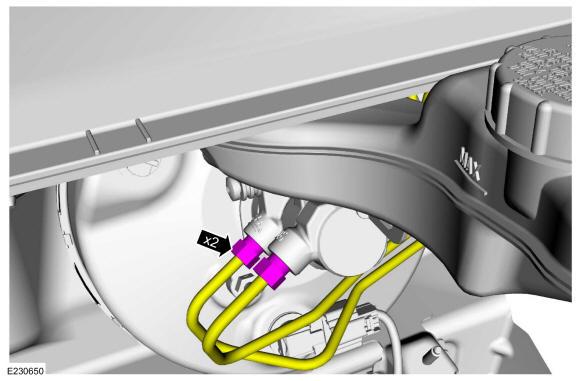

Disconnect the brake tube fitings.
- Plug the brake master cylinder ports and the brake tube ends.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

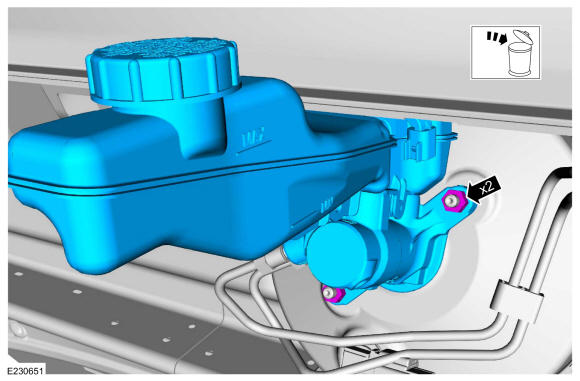

Remove the nuts and the brake master cylinder. Discard the nuts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
