Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
-
- Open the storage compartment.
- Push upwards on the rear of the console, use a 90 degree pick tool and release the RH and LH rear console clips.
-

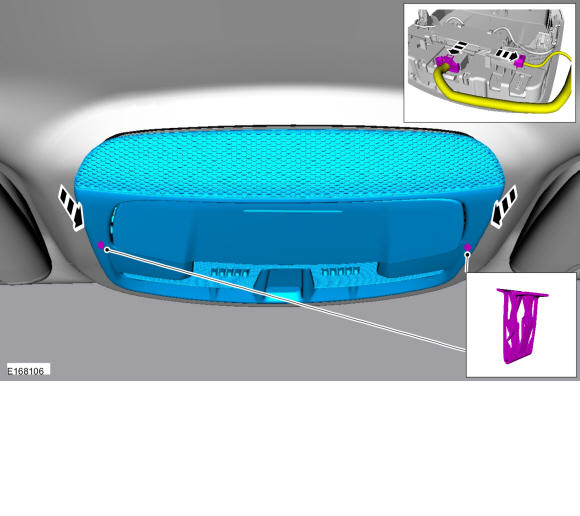

- Pull downwards on each side of the console to release the spring clips.
- Disconnect the electrical connectors.
