Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

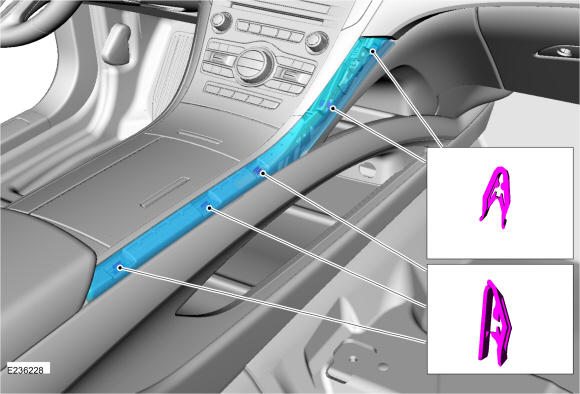

On both sides. Release the clips and remove the floor console finish panel.

Courtesy of FORD MOTOR COMPANY

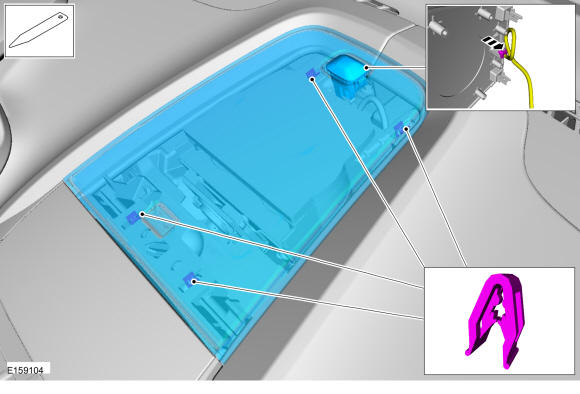

Release the clips and remove the upper floor console finish panel. Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

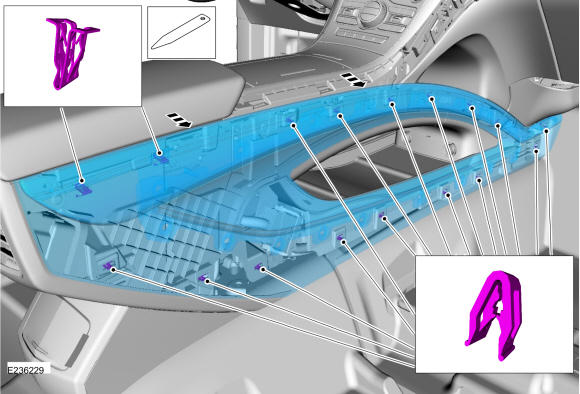

On both sides. Release the clips and remove the floor console side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

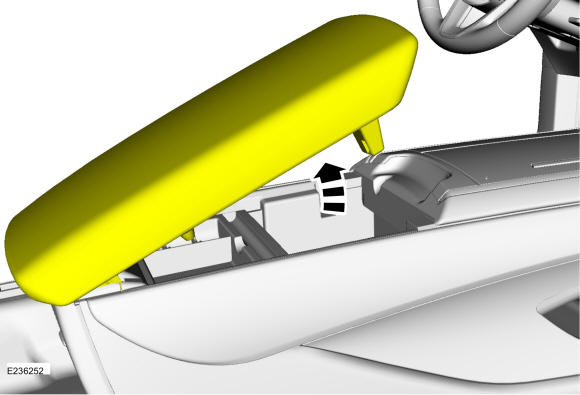

Open the floor console lid.

Courtesy of FORD MOTOR COMPANY

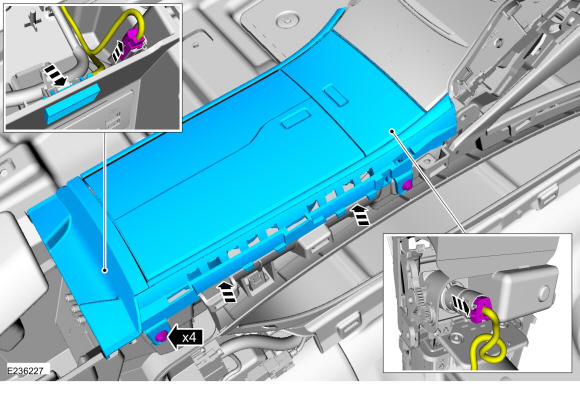

Remove the bolts and the floor console upper trim panel.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

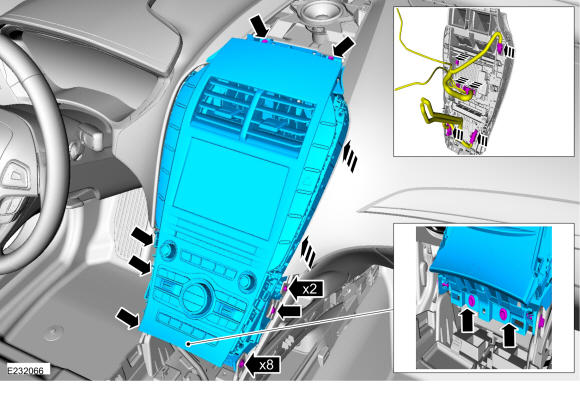

Remove the bolts and the FCIM
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

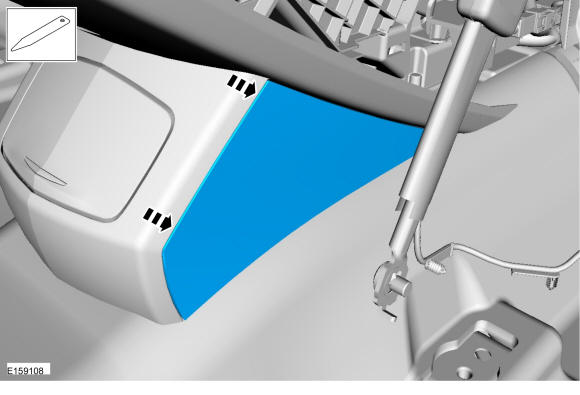

On both sides. Remove the finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

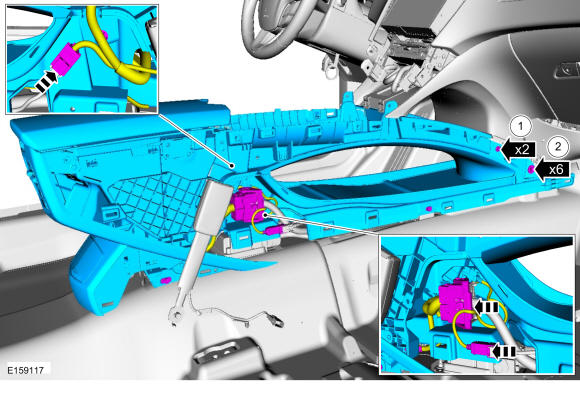

Remove the following items:
1. Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
2. Remove the bolts, disconnect the electrical connectors and remove the floor console.
  Torque: 71 lb.in (8 Nm)
