Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the luggage compartment lid lower moulding. REFER to: Luggage Compartment Lid Lower Moulding .

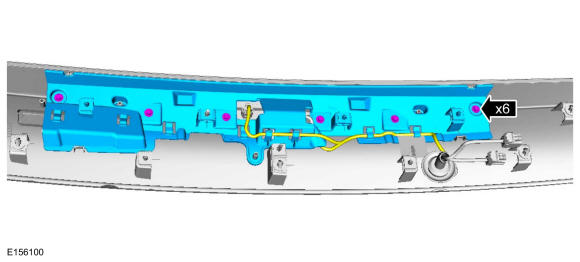

  2. Remove the screws, position the wiring harness aside and remove the rear bumper cover reinforcement.
    GFD262569Courtesy of FORD MOTOR COMPANY

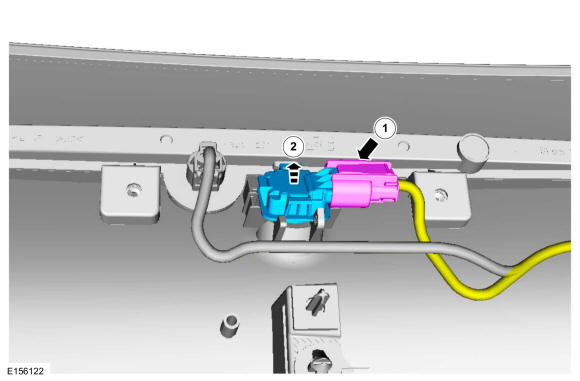

  3. Remove the parking aid camera.

    1. Disconnect the parking aid camera electrical connector.
    2. Remove the parking aid camera.

GFD262570Courtesy of FORD MOTOR COMPANY
