Front Active Park Assist Sensors: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. REFER to: Front Bumper Cover .

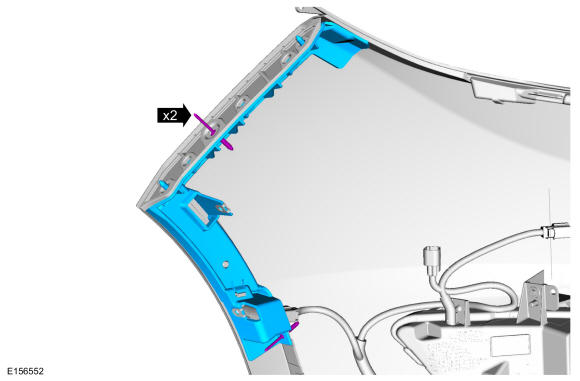

2. On each side. Remove the rivets and the front bumper bracket.

   Courtesy of FORD MOTOR COMPANY

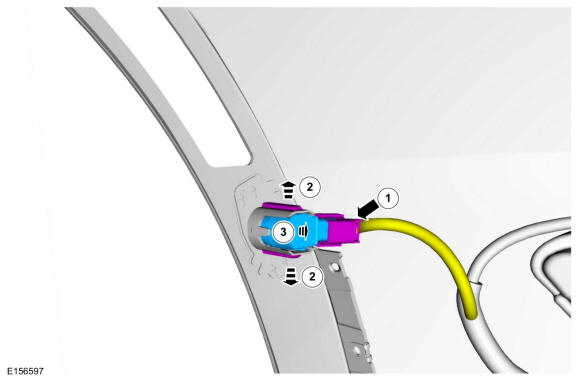

3. On each side. Remove the front active park assist sensor.
   1. Disconnect the front active park assist sensor electrical connector.
   2. Release the tabs.
   3. Remove the front active park assist sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
