Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the FCIM. REFER to: Front Controls Interface Module (FCIM) - Vehicles With: Touchscreen Display. REFER to: Active Park Assist Switch .

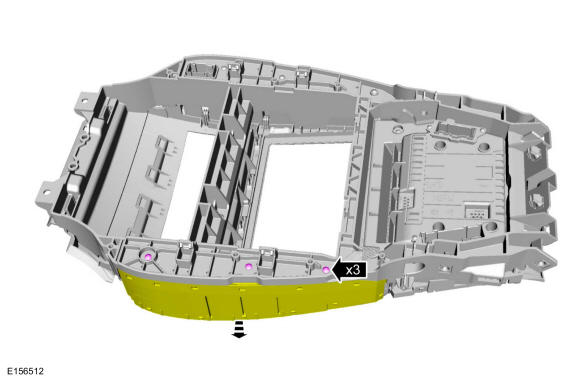

  3. Remove the retainers and position the FCIM side trim panel aside.
    GFD262574Courtesy of FORD MOTOR COMPANY

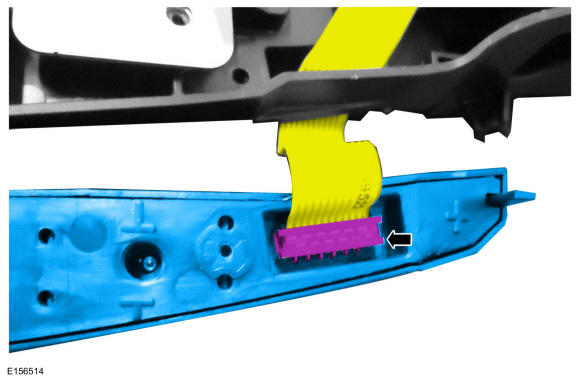

  4. Disconnect the electrical connector and the remove the active park assist switch.
GFD262575Courtesy of FORD MOTOR COMPANY
