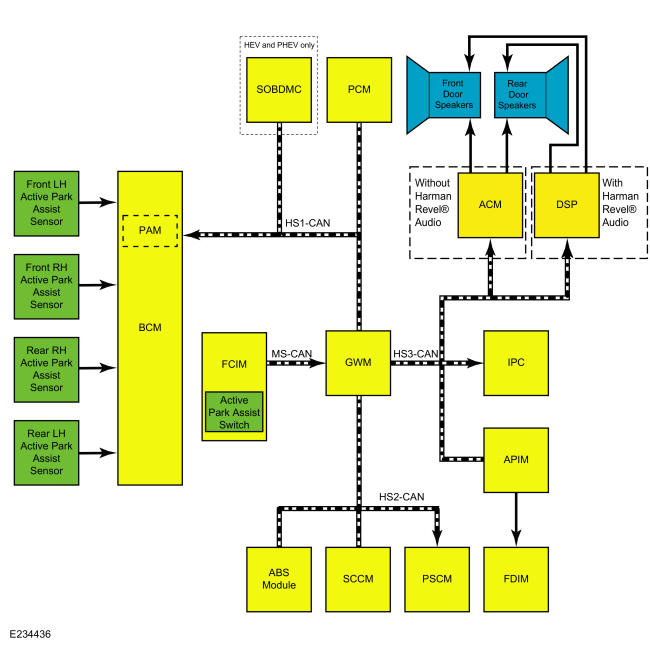

System Diagram
Active Park Assist
| Item | Description |
|---|---|
| 1 | FCIM |
| 2 | BCM |
| 3 | Active park assist switch |
| 4 | Rear LH active park assist sensor |
| 5 | Front LH active park assist sensor |
| 6 | Front RH active park assist sensor |
| 7 | Rear RH active park assist sensor |
| 8 | PAM |
| 9 | HEV and PHEV only |
| 10 | PCM |
| 11 | SOBDMC |
| 12 | IPC |
| 13 | GWM |
| 14 | ABS Module |
| 15 | SCCM |
| 16 | PSCM |
| 17 | Rear door speakers |
| 18 | Front door speakers |
| 19 | ACM |
| 20 | DSP |
| 21 | With Harman Revel® audio |
| 22 | Without Harman Revel® audio |
| 23 | APIM |
| 24 | FDIM |
