Component Location - Active Park Assist

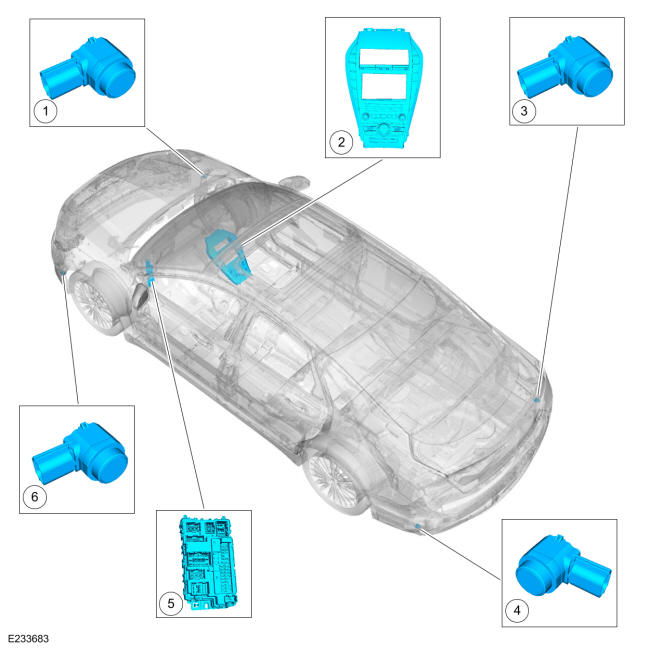

GFD262571Courtesy of FORD MOTOR COMPANY
Item Description
1 Front RH active park assist sensors
2 Active park assist switch (integral to the FCIM)
3 Rear RH active park assist sensors
4 Rear LH active park assist sensors
5 PAM (integral to the BCM)
6 Front LH active park assist sensors
